30CLJQ100PBF

Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 100V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, SMD0.5, 3 PIN
CategoryDiscrete semiconductor    diode
File Size50KB,4 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Environmental Compliance
Download Datasheet Parametric View All

30CLJQ100PBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 100V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, SMD0.5, 3 PIN

30CLJQ100PBF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerInternational Rectifier ( Infineon )
package instructionR-CBCC-N3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationEFFICIENCY
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-CBCC-N3
Maximum non-repetitive peak forward current100 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current30 A
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage100 V
surface mountYES
technologySCHOTTKY
Terminal formNO LEAD
Terminal locationBOTTOM
Maximum time at peak reflow temperature40
Base Number Matches1

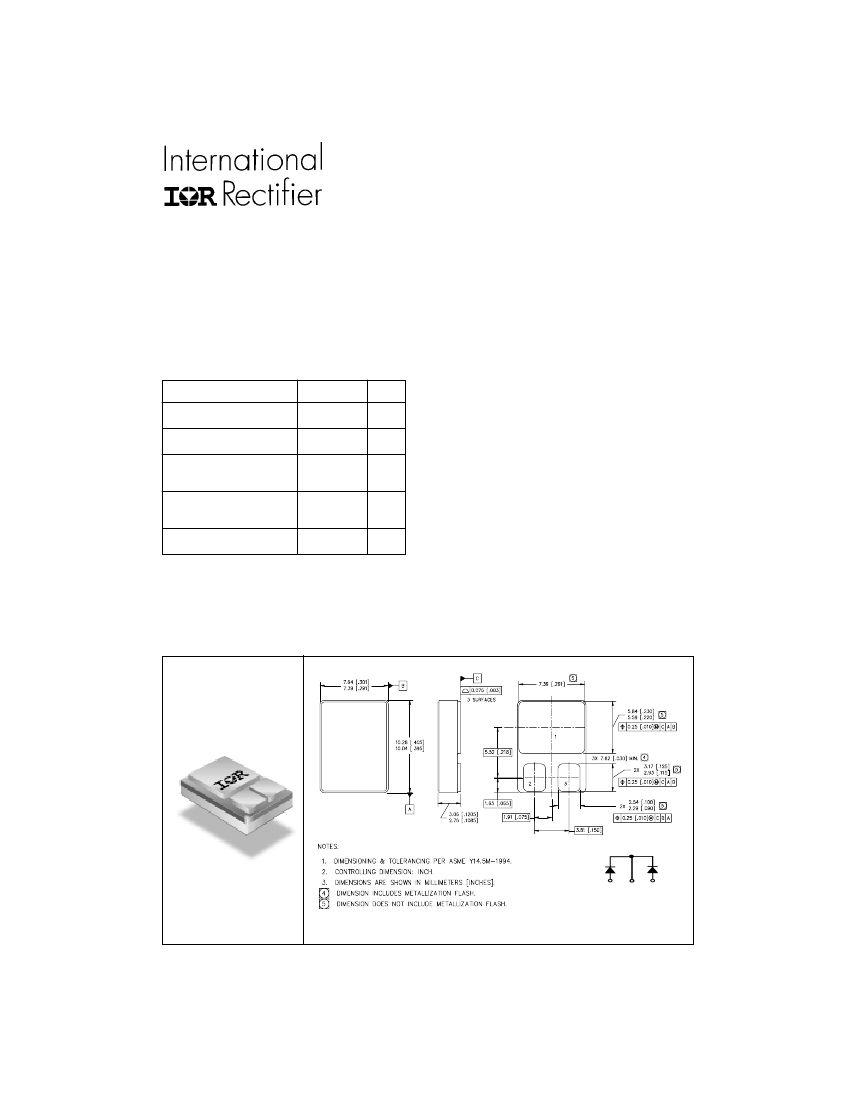

PD -94085A
SCHOTTKY RECTIFIER
HIGH EFFICIENCY SERIES
30CLJQ100
30 Amp, 100V
Major Ratings and Characteristics
Characteristics
I
F(AV)
V
RRM
(Per Leg)
I
FSM
@ tp = 8.3ms half-sine
(Per Leg)
V
F
@ 30Apk, T
J
=125°C
(Per Leg)
30CLJQ100 Units
30
100
A
V
Description/Features
The 30CLJQ100 center tap Schottky rectifier has been
expressly designed to meet the rigorous requirements of hi-
rel environments. It is packaged in the hermetic surface
mount SMD-0.5 ceramic package. The device's forward
voltage drop and reverse leakage current are optimized
for the lowest power loss and the highest circuit efficiency
for typical high frequency switching power supplies and
resonent power converters. Full MIL-PRF-19500 quality
conformance testing is available on source control
drawings to TX, TXV and S quality levels.
Hermetically Sealed
Center Tap
Low Forward Voltage Drop
High Frequency Operation
Guard Ring for Enhanced Ruggedness and Long term
Reliability
• Surface Mount
• Lightweight
100
0.95
A
V
T
J
, T
stg
Operating and storage
-55 to 150
°C
CASE STYLE
2
1
3
ANODE COMMONANODE
CATHODE
IR Case Style SMD-0.5
www.irf.com
1
08/10/01
