73780-3145 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73780-3145

73780-3145: CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

73780-3145 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	73780-3145	-	-	View	Buy Now

73780-3145 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STACKED
body width	0.528 inch
subject depth	0.591 inch
body length	1.896 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	73780
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	144
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

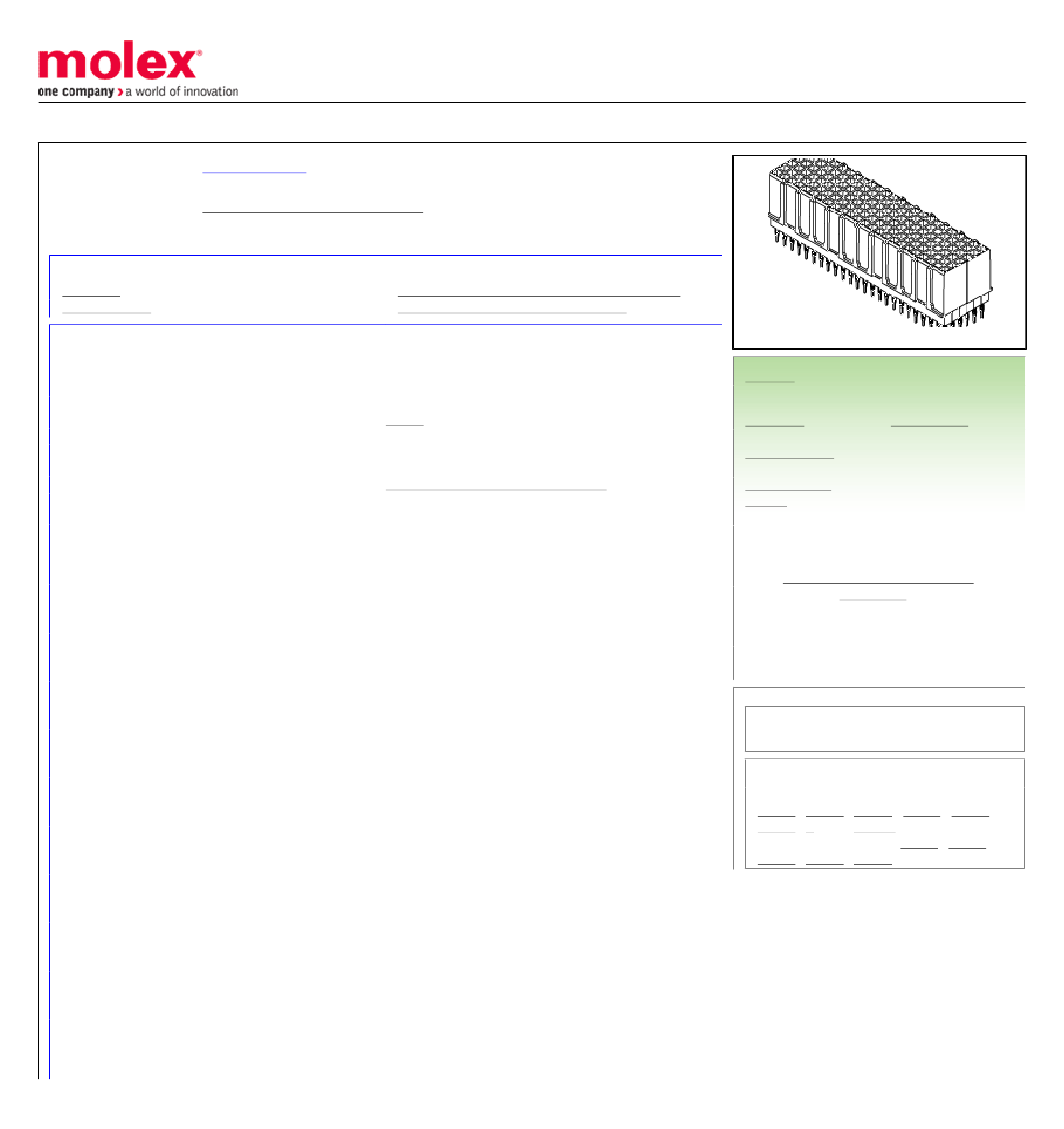

Preview

Download Datasheet

View All

This document was generated on 10/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0737803145

Active

HDM® Backplane Connector System

HDM Board-to-Board Daughtercard Receptacle, Vertical, Signal Module, 144 Circuits,

Mounted Height 15.00mm, Pin Length 3.00mm, Press-Fit

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Product Specification PS-73780-999-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Backplane Connectors

73780

Daughtercard, Mezzanine

Press-Fit Tail

PCB Receptacle

HDM® Backplane Connector System

HDM

800754862226

144

Black

250

94V-0

None

Copper-Nickel-Tin

Gold

Tin-Lead

High Temperature Thermoplastic

19.022/g

Open Pin Field

Vertical

3.00mm

None

1.60mm

Tube

2.00mm

0.762µm

0.889µm

Yes

-55°C to +105°C

Through Hole - Compliant Pin

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Not Relevant

Not Reviewed

Search Parts in this Series

73780 Series

Mates With

HDM Board-to-Board Backplane Header

73642 , 73643 , 73644 , 73942 , 73943 ,

73944 , 7 4349, 74428. HDM Board-to-

Board Stacking Header 73769 , 73770 ,

73782 , 73783 , 73771
