44380-0019

Description
Modular Connectors / Ethernet Connectors Inverted ModJack Min ni-PCI Compliant 8/4
CategoryThe connector    The connector
File Size29KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

44380-0019 Online Shopping

Suppliers Part Number Price MOQ In stock
44380-0019 - - View Buy Now

44380-0019 Overview

Modular Connectors / Ethernet Connectors Inverted ModJack Min ni-PCI Compliant 8/4

44380-0019 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsCOMPLIANT BOARDLOCK
body width0.52 inch
subject depth0.594 inch
body length0.62 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance10 mΩ
Contact styleTELCOM, MODULAR
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force22.24 N
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
Number of ports1
Maximum operating temperature70 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Plating thickness50u inch
Rated current (signal)1.5 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialBRASS
Terminal length0.06 inch
Terminal pitch2.032 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1

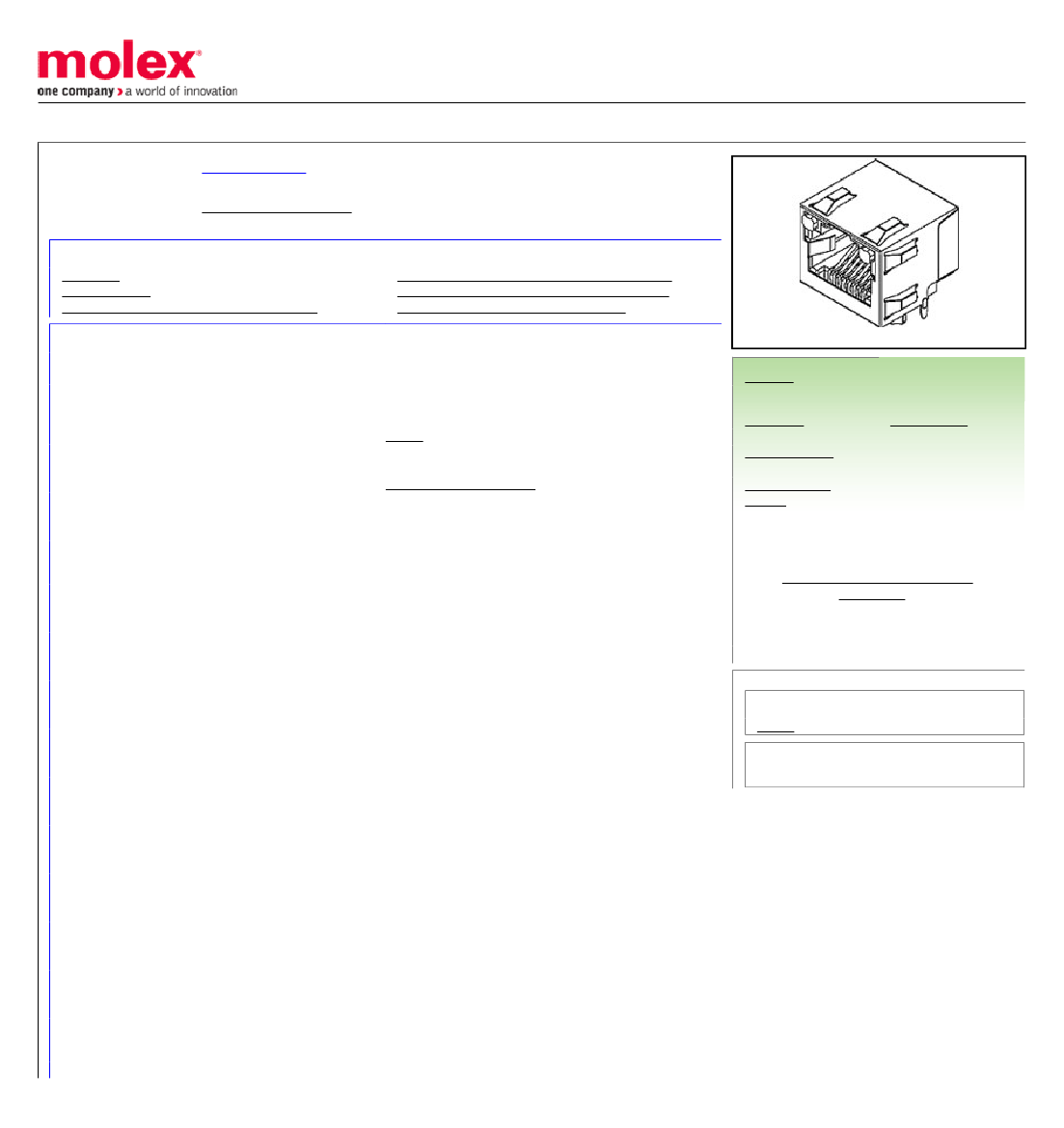

This document was generated on 06/10/2016
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0443800019
Active
Modular Jacks and Plugs
Modular Jack, Right Angle, Low Profile, Inverted, 8/4, Unshielded
Documents:
3D Model
Drawing (PDF)
Product Specification PS-43860-003 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
UPC
Physical
Boot Color
Color - Resin
Durability (mating cycles max)
Inverted / Top Latch
Jack Height
Keying to Mating Part
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
Electrical
Current - Maximum per Contact
Application Specification AS-43860-001 (PDF)
Packaging Specification PK-43860-004 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
LR19980
E107635
Modular Jacks/Plugs
44380
PCB Jack
No
Modular Jacks and Plugs
3
N/A
RJ45
800754879491
N/A
Black
500
Yes
13.21mm
None
None
Phosphor Bronze
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
1.00mm
Tube
Without Flange
1.02mm
1.02mm
1.270µm
2.540µm
1
8/4
Yes
-40°C to +85°C
Through Hole
No
N/A
1.5A
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Not Reviewed
Not Relevant
Search Parts in this Series
44380 Series
Mates With
FCC 68 Plugs
