Model 5066

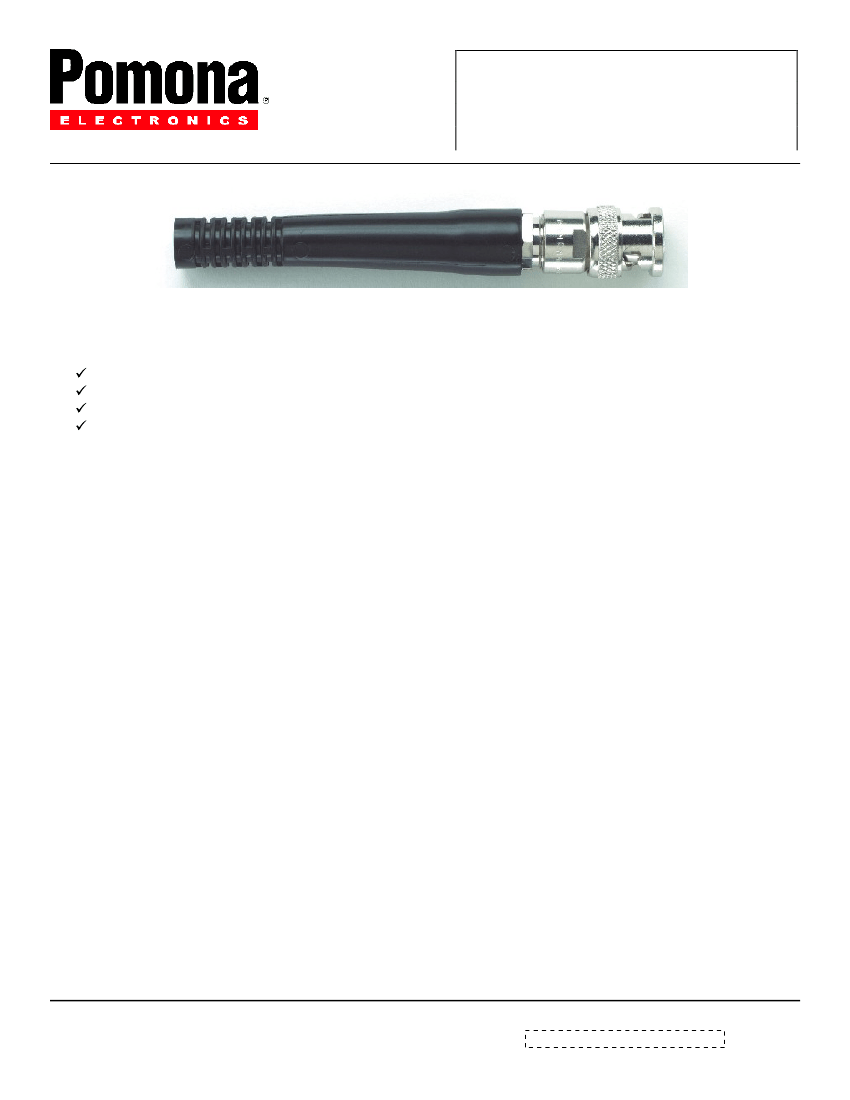

Do-It-Yourself Male BNC Connector
with Strain Relief Boot
For RG 58 and 141 Coax cable
FEATURES:
Fits coax cable types RG 58 and RG 141 with cable OD of: .185” to .200” (4.7mm to 5.08mm)
Do-It-Yourself and field serviceable.
Strain relief boot.
Ten boot colors available.
MATERIALS:
Connector:
Body and Fittings – Brass per QQ-B-626, Alloy 360, ½ Hard.
Center Contact – Brass per QQ-B-626, Alloy 360, ½ Hard.
Dielectric – Teflon per ASTM D1457.
Vee Gasket – Silicone rubber per QQ-R-765, Class 11A, Grade 50.
Clamp Nut – Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish:
Body and Fittings – Nickel plated, tarnish resistant
Center Contact – Gold plated per requirements of MIL-C-39012
Clamp Nut – Nickel plated per QQ-N-290, Class 2.
RATINGS:
Impedance: 50 Ohms
Frequency: DC to 3 GHz.
VSWR: 1.35 @ 3 GHz.
Insertion loss: .2 dB @ 3 GHz.
Cable Retention Force: 40 lbs.
Mating Cycles: 500
Temperature: +50°C. (+122°F.) Max.
Voltage: Hands free testing in controlled voltage environments: 500 Peak Max.
For CE compliance:
not
intended for hand-held use at voltage above 33 Vrms/70 Vdc.
ORDERING INFORMATION:
Model 5066-boot color*
Example:
to order a 5066 with a red boot, the order number is 5066-2
*Boot Colors:
0 (Black), 1 (Brown), 2 (Red), 3 (Orange), 4 (Yellow), 5 (Green), 6 (Blue), 7 (Violet), 8 (Gray), 9 (White)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 102
D1094272
Page 1 of 2
Model 5066
Do-It-Yourself Male BNC Connector
with Strain Relief Boot
For RG 58 and 141 Coax cable

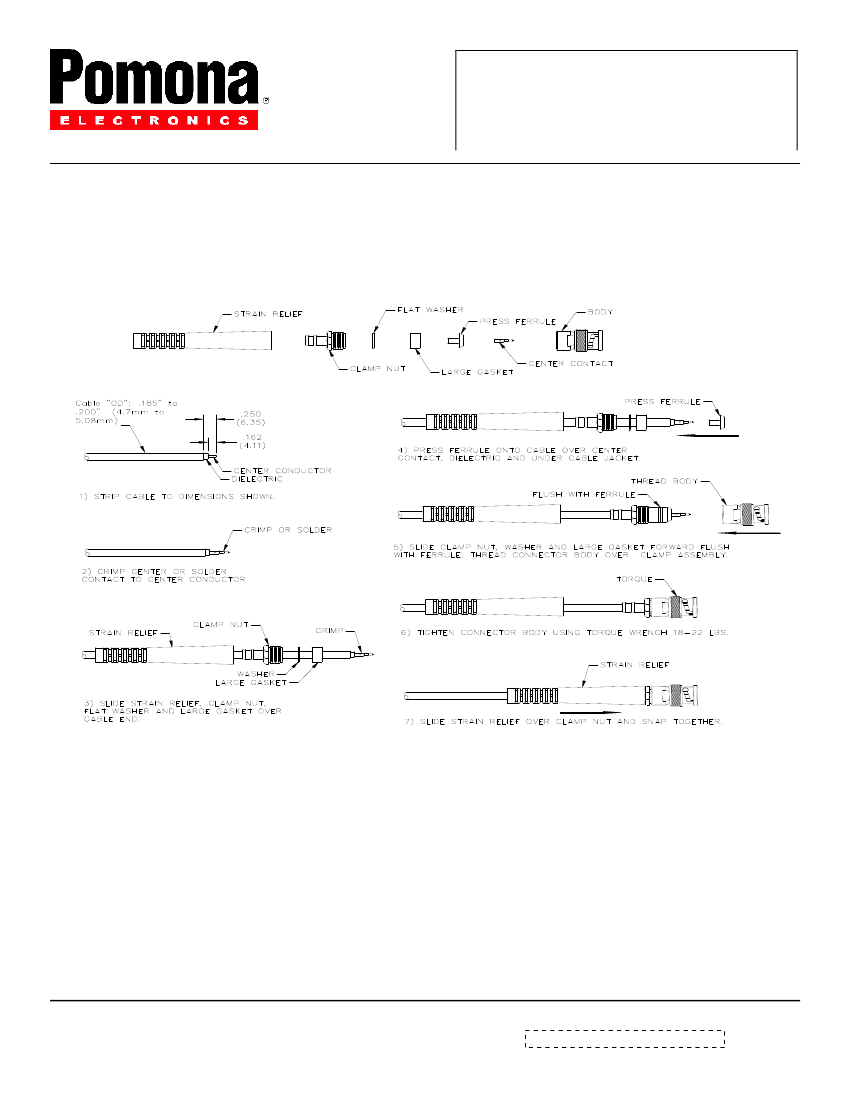

Assembly Instructions
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev: 102
D1094272
Page 2 of 2
