34250-3066 Overview

Automotive Connectors 15mm CblSld USCAR Rec Blk 3 Ckt

34250-3066 Parametric

Parameter Name	Attribute value
Product Category	Automotive Connectors
Manufacturer	Molex
RoHS	Details
Product	Connectors
Number of Positions	3 Position
Gender	Female
Mounting Style	Free Hanging
Termination Style	Crimp
Color	Black
Current Rating	15 A
Housing Material	Polystyrene (PS)
Number of Rows	1 Row
Packaging	Bulk
Factory Pack Quantity	500
Type	Receptacle
Unit Weight	0.246459 oz

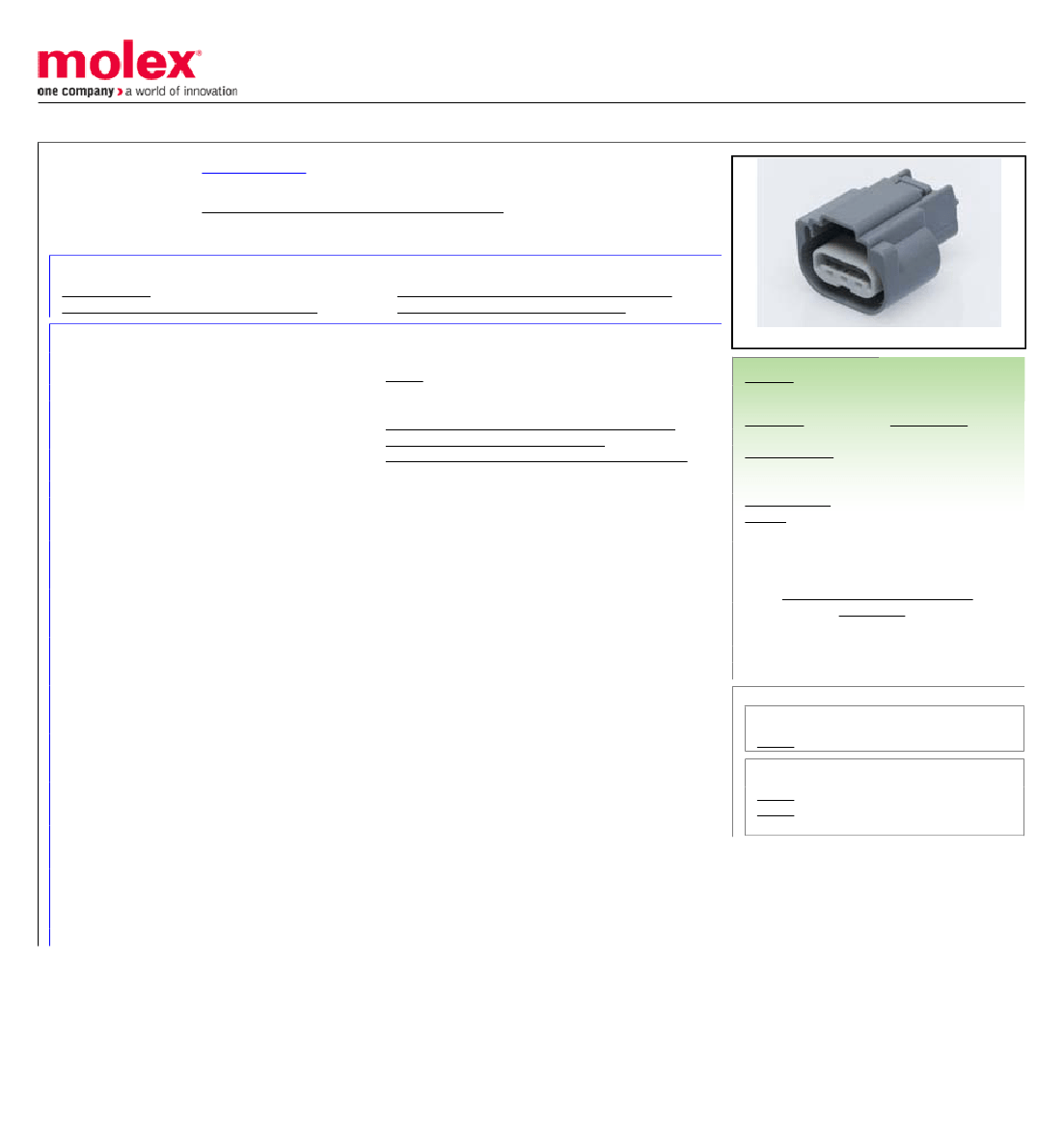

Preview

Download Datasheet

View All

This document was generated on 01/13/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0342503066

Active

MX150™ Sealed and Unsealed Connector System

MX150™ Cable Sealed Female Connector, Single Row, 3 Circuits, Polarization B,

without Connector Position Assurance and Optional, Black

Documents:

Drawing (PDF)

Product Specification PS-34250-000 (PDF)

General

Product Family

Series

Application

Comments

More Detailed Tech Information

Overview

Product Name

UPC

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Application Specification

Product Specification

Sales Drawing

Application Specification AS-34250-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

Crimp Housings

34250

Power, Wire-to-Wire

No Connector Position Assurance (CPA)

http://uscar.org/guest/teams/10/Electrical-Wiring-

Component-Applications-Partnership

MX150™ Sealed and Unsealed Connector System

MX150™

884982021907

Black

Female

Yes

Modified Polystyrene Alloy

7.327/g

Bag

4.50mm

Yes

-40°C to +125°C

15.0A

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

No -ED/108/2014 (17

Dec 2014)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Relevant

Compliant

Search Parts in this Series

34250 Series

Use With

34083 Tin (Sn) Cable Seal Female Terminal,

34081 Gold (Au) Cable Seal Female

Terminal

AS-34250-100

PS-34250-000

SD-34250-002

This document was generated on 01/13/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
