KF88X-BD-25P-BR datasheet, PDF

Datasheet> All Categories > The connector> The connector> KF88X-BD-25P-BR

KF88X-BD-25P-BR: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size857KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

KF88X-BD-25P-BR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF88X-BD-25P-BR	-	-	View	Buy Now

KF88X-BD-25P-BR Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug, ROHS COMPLIANT

KF88X-BD-25P-BR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2038501922
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	8.5
Board mount options	BOARD LOCK
body width	0.494 inch
subject depth	0.574 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.177 inch
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF88X-EC-9P-BR

Part Number Builder

LR78160

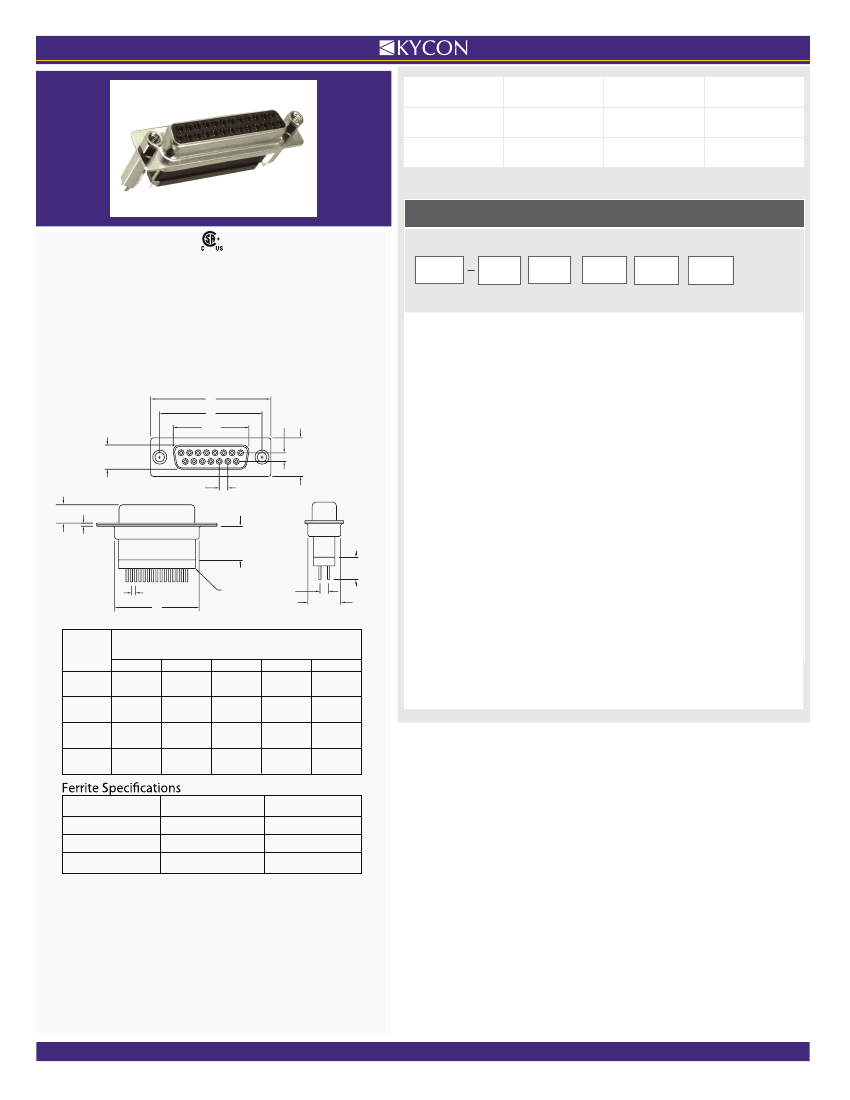

D-SUBMINIATURE CONNECTORS:

KF88X

Series

KF88X Series

Dimensions

Dimensions in mm

KF88X

Series

Shell

Type

Contact

Construction

Contact

Option

Contact

Type

Mounting

Option

High Profile Vertical PCB Mount with Ferrite

Series

KF88X

D-Subminiature Connector Vertical PCB Termination,

High Profile with Ferrite

Contact Shell Size

- 9 Contacts

- 15 Contacts

- 25 Contacts

- 37 Contacts

A, A1

8.36 Plug Interior,

7.90 Socket Exterior

2.77

6.1 Plug,

5.8 Socket

10.98 Max.

0.90

2.84

12.55

Contact Construction

- Precision Machined

- Precision Formed

Contact Type

- Pin Contact (Plug)

- Socket Contact (Receptacle)

Mounting Option Jackscrew Option

- With #4-40 Tin Plated 14.50mm Long Boardlocks

BRJ

- With #4-40 Tin Plated 14.50mm Long Boardlocks

and #4-40 Jackscrews

Contact Kycon for Other Options

7.20

1.385

2.7mm Ferrite

2.84

10.72

Number of

Contacts

(Shell Size)

Dimensions (Inch/mm)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.755

19.18

1.083

27.51

1.614

41.00

2.272

57.71

9 (E)

15 (A)

25 (B)

37 (C)

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Edge Hole

17-27 Ohms

22-30 Ohms

29-34 Ohms

Inner Hole

22-30 Ohms

29-37 Ohms

35-40 Ohms

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013
