Low Profile “Swing-Lock” Board to Wire Connector for Power
DF57 Series
(Compliant with UL-CSA standards)
Swing-Lock Structure explanatory drawing
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Before mating
Lock portion
■

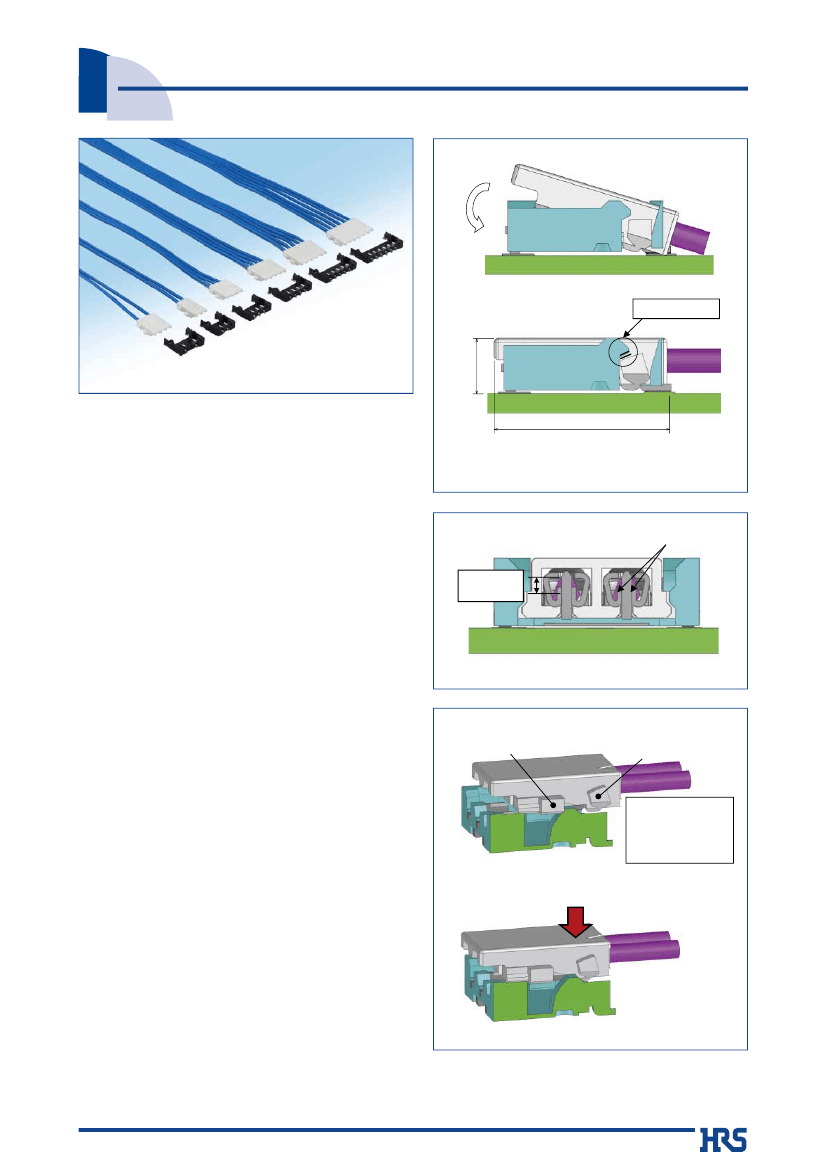

Features
1.Reinforced lock structure with swing lock
A swing-lock structure, featuring our own unique
connection method, reinforces the lock structure of
the electric cable side, with a structure resistant to
tough electric cable routing and disengagement of
cables under load.
In addition, the connection surface has a guide
insertion to facilitate insertability (patented)
A
4.65mm
After mating
Mating HeightA : DF57H
DF57AH
1.4mm
1.6mm
Fig.1
Contact Structure
2.Header lock improves plug retention
When connecting, the header connector secures the
molded-lance. Play of molded lance is prevented for
added strength. (patented)
3.Highly reliable contact structure
Despite the low-profile design, with a stacking height
of 1.4mm, an effective mating length of 0.42mm is
achieved. The structure features two-point contact
terminal geometry with high contact reliability.
Fig.2
Incorrect Positioning
Insert Guide Key
Positive Lock
4.Insert guide key prevents misalignment
Insert guide key guides the crimp socket to the
correct mating position and prevents misalignment,
which improves mating operation and prevents
possible connector breakage with incorrect mating.
5.Solder wicking prevention
The integral molding eliminates any gap between the
terminals and case to prevent solder wicking.
Insert guide key touches to
the header prior to the
positive lock, which guides
the socket to the correct
mating position.
6.Case disengagement prevention
Reinforcing hardware (metal fittings) are integrated in
the molding, which help prevent the case from
disengaging with the terminals due to tough electric
cable routing and load.
Starts mating after the socket is aligned to
the correct position
7.Cost effective
Terminals and metal fittings are collectively integrated
into the molding to reduce assembly cost.
Insert Guide Key Structure
Fig.3
2014.8w
1
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power
■Specifications
2pos.
AWG#26
Current rating
Rating
AWG#28
AWG#30
AWG#32
AWG#34
_
2.5A
1.5A
1.0A
0.8A
3pos.
_
2.0A
4pos.
_
1.5A
1.0A
0.8A
0.5A
5,6pos.
1.5A
Operating temperature range -35ç to 85ç (Note 1)
Operating humidity range 20% to 80%
Storage temperature range -10ç to 60ç (Note 2)
Voltage rating 2 to 6 pos. :50V AC/DC
2 pos. (Middle pin of 3 pos. is removed): 100V AC/DC Storage humidity range 40% to 70% (Note 2)
UL-CSA certified specifications
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2pos.
AWG#26
Rating
Current rating
AWG#28
AWG#30
AWG#32
AWG#34
_
2.5A
1.5A
1.0A
0.8A
3pos.
_
2.0A
4pos.
_
5,6pos.
1.5A
1.5A
1.0A
0.8A
0.5A
Voltage rating 2 - 6 pos. :29V AC/DC
Item
1.Insulation
resistance
2.Withstanding
voltage
3.Contact
resistance
4.Vibration
5.Shock
6.Humidity
7.Temperature
cycle
8.Durability
9.Resistance to
soldering heat
Specification
100 Mø min.
No flashover or insulation breakdown
10 mø max.
No electrical discontinuity of 1 µs or longer
No damage, cracks or parts dislocation.
No electrical discontinuity of 1 µs or longer
No damage, cracks or parts dislocation.
Contact resistance: 20 mø max.,
Insulation resistance: 500 Mø min.
No damage, cracks or parts dislocation.
Contact resistance: 20 mø max.,
Insulation resistance: 500 Mø min.
No damage, cracks or parts dislocation.
Contact resistance: 20 mø max.,
No damage, cracks or parts dislocation.
No deformation of components affecting
performance
100 V DC
500 V AC / 1 minute
20 mV max., at 1 mA.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
10 cycles, 3 direction
Acceleration of 490 m/s
2
, 11 ms duration, sine half-
wave, 3 cycles in each of the 3 axis
96 hours at 40 ±2ç, and humidity of 90 to 95%
-55°C
→
5 to 35°C
→
85°C
→
5 to 35°C
Times: 30 min.
→
2 min. to 3 min.
→
30 min.
→
2 min.
to 3 min. 5 cycles
30 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350°C for 3 seconds
Conditions
Note 1. Includes temperature rise caused by current flow.
Note 2. The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage,
shipment or during transportation.
■Material
Product
Header
Part
Insulator
Contacts
Insulator
Contacts
Material
LCP
Brass
DF57H
DF57AH
Crimp contacts
PBT
LCP
PBT
Finish
Color:Black
Tin Plated
White
Black
White
Tin Plated
---------
UL94V-0
Remarks
UL94V-0
---------
Crimp socket
Phosphor bronze
2
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power
■Ordering
information
Refer to the below information to identify the specifications of the product by its part No.
●Header
DF 57 H −
*
P − 1.2 V
❶
❷
❸
❹
❺
❻
❼
❺
Connector type
P Plug
：
❻
Contact pitch
：1.2mm
❼
Termination section
V
:Straight SMT
❶
Series name
：
DF
57
❷
Series No.
：
❸
Insert guide key
H
: Yes
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2,
❹
Number of contacts： 3, 4, 5, 6
DF 57 H − 2 P − 2.4 V
❹
❹
Number of contacts
：2
❻
❻
Contact pitch
：
2.4mm
(Middle pin of 3 pos. is removed, and rated voltage is 100 V）
●Socket
DF 57
❶
❷
❸
❶
Series name
：DF
❷
Series No.
：57
❸
Applicable wire size:
H −
*
S − 1.2 C
❹
❺
❻
❼
½
❺
Number of contacts：2, 3, 4, 5, 6
❻
Connector type
S
：Crimp
socket
❼
Contact pitch
：1.2mm
½
Termination section
C ：Crimp
socket
Blank
: AWG#28 to AWG#34
❹
Insert guide key
H
: Yes
DF 57 A H −
*
S − 1.2 C
❸
❸
Applicable wire size:
A ：AWG#26
to AWG#34
❺
❺
Number of contacts
：5,
6
●Crimp
contact
DF 57 − 2830 SCF
❶
❶
Applicable wire size:
2628：AWG#26 to AWG#28
2830：AWG#28 to AWG#30
3234：AWG#32 to AWG#34
❷
❷
Packaging
SCF ：SCF:
Female crimp contact / reel
3
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power

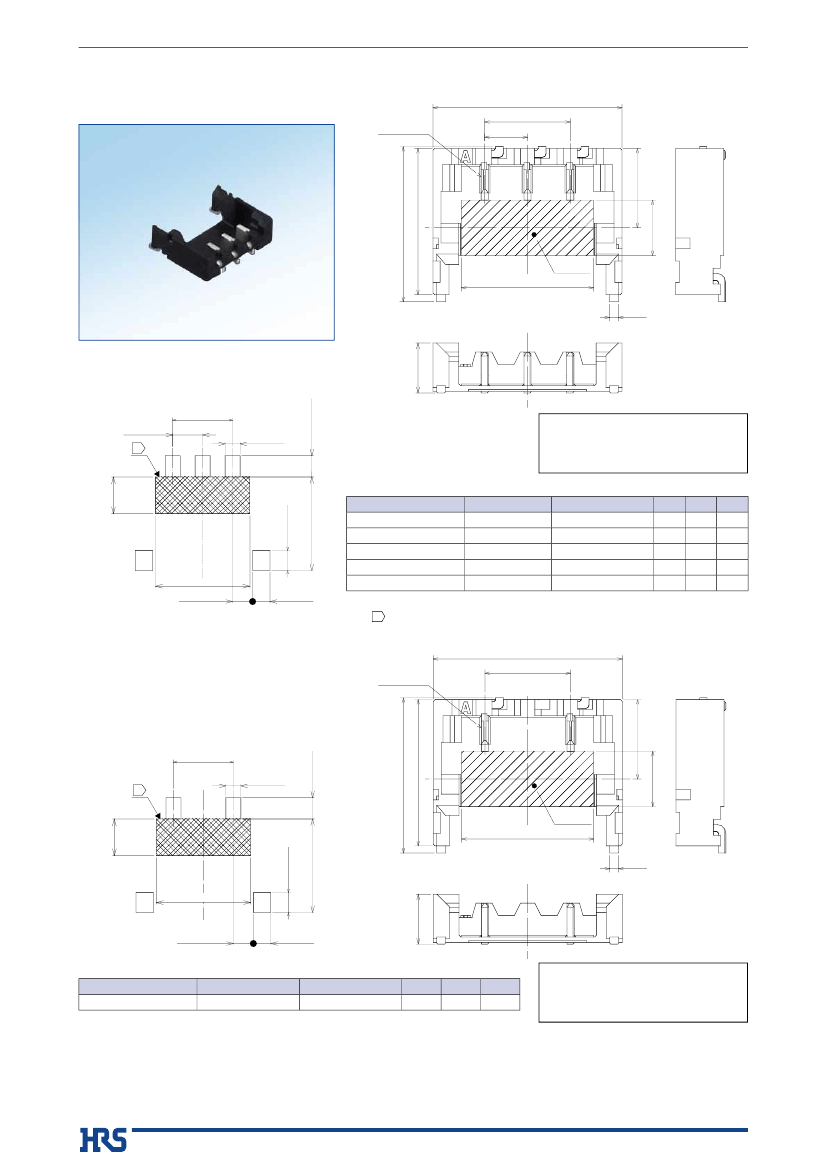

■Header(SMT)
A
B
Contact No.1
P=1.2
4.35
4.1
2.225
Vacuum area
C
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.25
Above image is 3 pos.
Recommended PCB layout
(Thickness: 1.0mm)
1.4
[Specification number]
(21):Tin plated, Embossed tape
packaging (5,000 pcs/reel)
Unit : mm
Part No.
DF57H-2P-1.2V(21)
DF57H-3P-1.2V(21)
DF57H-4P-1.2V(21)
DF57H-5P-1.2V(21)
DF57H-6P-1.2V(21)
HRS No.
666-0104-7 21
666-0105-0 21
666-0106-2 21
666-0107-5 21
666-0108-8 21
No. of contacts
2
3
4
5
6
A
4.1
5.3
6.5
7.7
8.9
B
1.2
2.4
3.6
4.8
6.0
C
2.5
3.7
4.9
6.1
7.3
Note 1 : Embossed tape reel packaging (5,000 pcs/reel).
Note 2 : The crossed-shaded area is a no conductive trace area.
A
B
Contact No.1
4.35
4.1
2.225
Vacuum area
C
0.25
1.4
Recommended PCB layout
(Thickness: 1.0mm)
Unit : mm
Part No.
DF57H-2P-2.4V(21)
HRS No.
666-0109-0 21
No. of contacts
2
A
5.3
B
2.4
C
3.7
[Specification number]
(21):Tin plated, Embossed tape
packaging (5,000 pcs/reel)
4
1.55
1.55
DF57 Series●Low Profile “Swing-Lock” Board to Wire Connector for Power

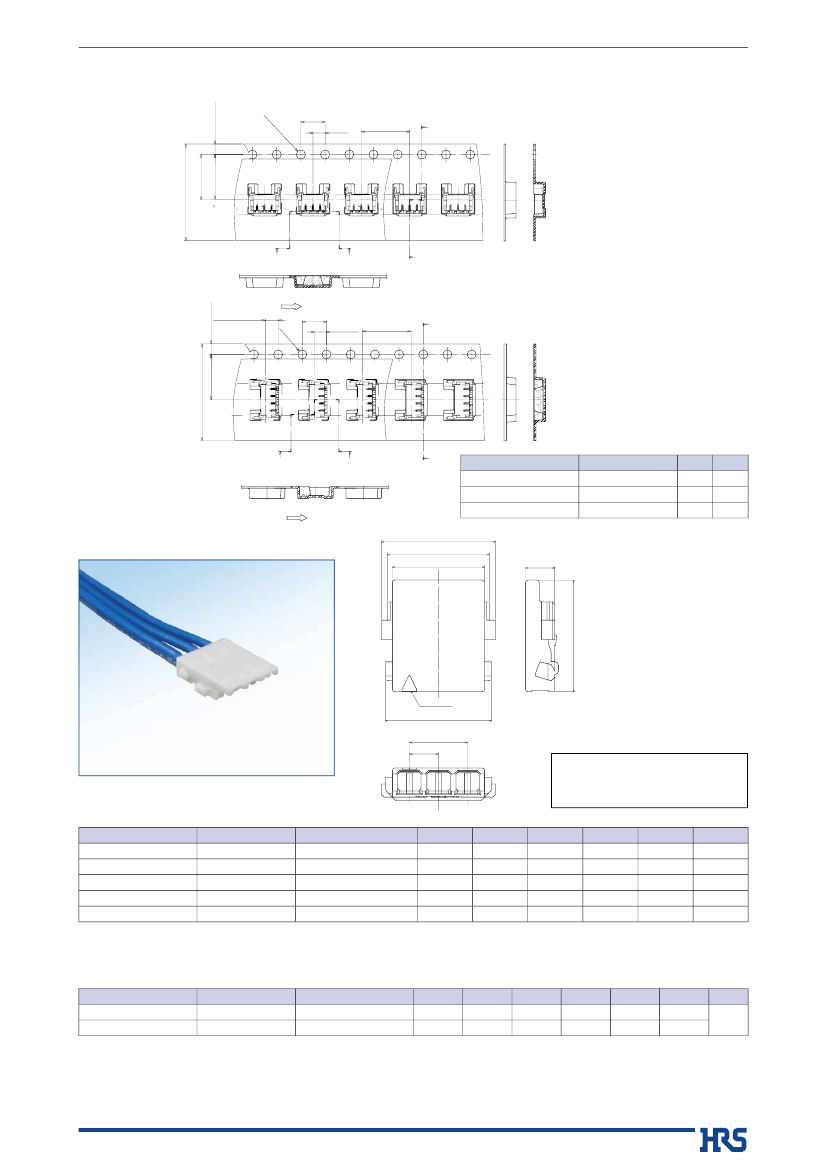

●Packaging
Specification
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit : mm
Part No.
DF57H-4P-1.2V(21)
DF57H-5P-1.2V(21)
DF57H-6P-1.2V(21)
No. of contacts
4
5
6
H
16
16
24
J
7.5
7.5
11.5
■Crimp
socket
Above image is 3 pos.
[Specification number](**) ,**
Blank: Color: White, 1,000 pcs/pack
(15): Color: Black, 1,000 pcs/pack
Unit : mm
HRS No.
666-0100-6 **
666-0012-0 **
666-0101-9 **
666-0102-1 **
666-0103-4 **
No. of contacts
2
3
4
5
6
A
3.5
4.7
5.9
7.1
8.3
B
2.98
4.18
5.38
6.58
7.78
C
2.6
3.8
5.0
6.2
7.4
D
3.2
4.4
5.6
6.8
8.0
Ｅ
1.2
2.4
3.6
4.8
6.0
Ｆ
1.2
1.2
1.2
1.2
1.2
Part No.
DF57H-2S-1.2C(**)
DF57H-3S-1.2C(**)
DF57H-4S-1.2C(**)
DF57H-5S-1.2C(**)
DF57H-6S-1.2C(**)
Note 1.The quantity is delivered per pack (1,000 pcs.). Order by number of pack.
■Socket
for AWG#26
Part No.
DF57AH-5S-1.2C
DF57AH-6S-1.2C
HRS No.
666-0110-0 00
666-0111-2 00
No. of contacts
5
6
Ａ
7.1
8.3
Ｂ
6.58
7.78
Ｃ
6.2
7.4
Ｄ
6.8
8.0
Ｅ
4.8
6.0
Ｆ
1.4
1.4
Unit : mm
Color
Black
Note 1.The quantity is delivered per pack (1,000 pcs.). Order by number of pack.
5
