851-44-002-30-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 851-44-002-30-002000

851-44-002-30-002000: DescriptionIC u0026 Component Sockets; CategoryThe connector The connector; File Size407KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

851-44-002-30-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-44-002-30-002000	-	-	View	Buy Now

851-44-002-30-002000 Overview

IC u0026 Component Sockets

851-44-002-30-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.087 inch
subject depth	0.207 inch
body length	0.115 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	851
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	2

Preview

Download Datasheet

View All

INTERCONNECTS

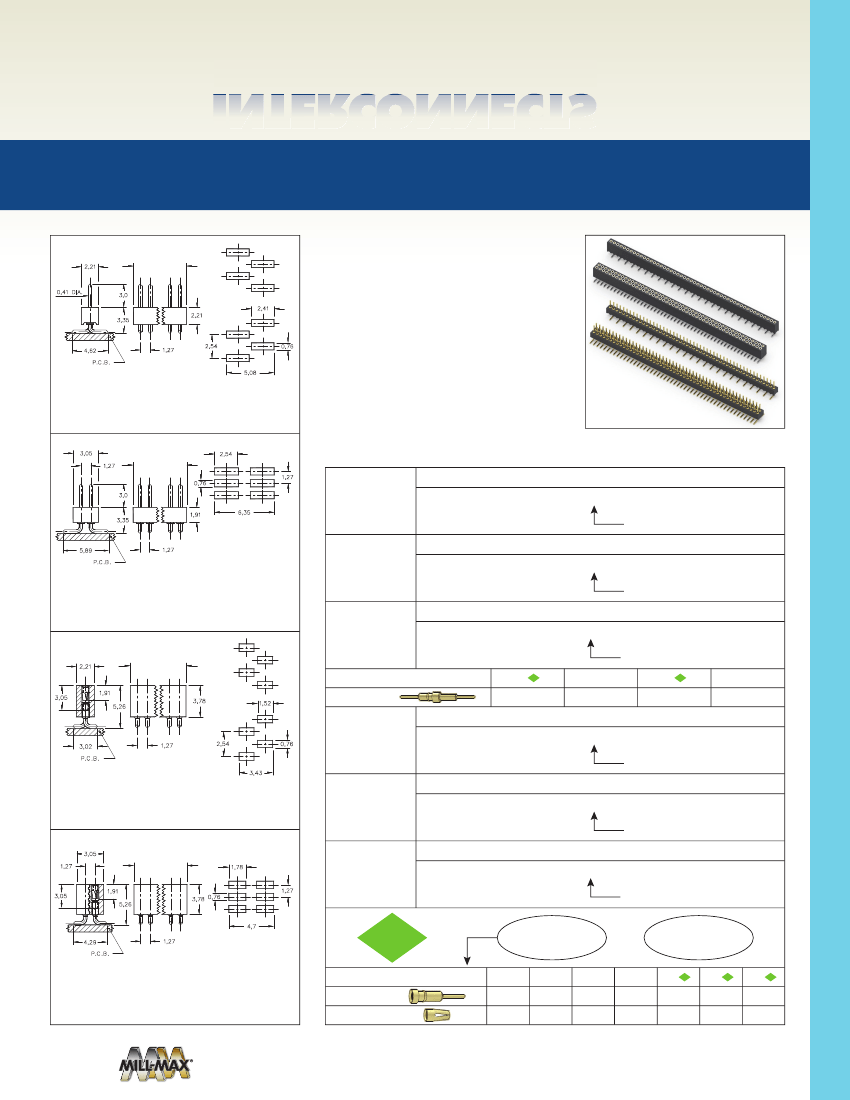

SERIES 850, 851, 852, 853 • 1,27 GRID SURFACE MOUNT

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

•

Single row interconnects having an even

•

Right Hand

Footprint

2,21

2,41

2,21

(Number of Pins

X 1,27) + 0,38

Left Hand

Footprint

0,41 DIA.

3,0

3,35

•

0,76

4,62

P.C.B.

1,27

2,54

5,08

•

Coplanarity 0,13. For pin counts >20 positions, consult

Technical Support.

FIG. 1

3,05

1,27

number of pins are now available with a left

or right hand footprints

Headers (850 and 852) use MM #4006 pins.

See page 208 for details

Sockets (851 and 853) use MM #4890-0

receptacles and accept pin diameters from

0,38 - 0,51. See page 160 for details

Receptacles use Hi-Rel, 3- nger BeCu #11

contact rated at 3 amps. See page 251 for

details

Insulators are high temperature thermoplastic,

suitable for all soldering operations

(Number of Pins

X 1,27/2) + 0,38

0,76

3,0

6,35

3,35

1,27

ORDERING INFORMATION

FIG. 1L

FIG. 1R

FIG. 2

SPECIFY PLATING CODE XX=

3,78

Single Row Header, Left Hand Footprint, Odd or Even # of Pins

850 XX 0_ _ 30 001000

Specify number of pins

02-50

Footprint

1,27

5,89

P.C.B.

Single Row Header, Right Hand Footprint, Even # of Pins

850 XX 0_ _ 30 002000

Specify number of pins

02-50

Coplanarity 0,13. For pin counts >40 positions, consult

Technical Support.

FIG. 2

Left Hand

Footprint

2,21

Double Row Header, Even # of Pins

852 XX _ _ _ 30 001000

Specify number of pins

0,25µm Au

(Number of Pins

X 1,27) + 0,38

1,91

5,26

004-100

5,08µm Sn

3,05

Right Hand

Footprint

1,52

Pin Plating

5,08µm Sn/Pb

3,02

P.C.B.

1,27

2,54

0,76

FIG. 3L

FIG. 3R

FIG. 4

Single Row Socket, Left Hand Footprint, Odd or Even # of Pins

851 XX 0_ _ 30 001000

Specify number of pins

Coplanarity 0,13. For pin counts >20 positions, consult

Technical Support.

3,43

FIG. 3

3,05

1,27

Single Row Socket, Right Hand Footprint, Even # of Pins

851 XX 0_ _ 30 002000

Specify number of pins

02-50

(Number of Pins

X 1,27/2) + 0,38

1,78

0,76

5,26

1,27

Specify number of pins

RoHS - 2

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

4,7

4,29

P.C.B.

1,27

Footprint

2011/65/EU

XX=Plating Code

See Below

Coplanarity 0,13. For pin counts >40 positions, consult

Technical Support.

FIG. 4

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn 5,08µm Sn

0,25µm Au 0,76µm Au

2,54µm Sn/Pb

0,25µm Au 0,76µm Au 2,54µm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

44 Plating Non-Standard

PAGE 37 | INTERCONNECTS

Double Row Socket, Even # of Pins

853 XX _ _ _ 30 001000
