90816-3220 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 90816-3220

90816-3220: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

90816-3220 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	90816-3220	-	-	View	Buy Now

90816-3220 Overview

Board Connector, 20 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Latch, Black Insulator, Receptacle,

90816-3220 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1401091039
Reach Compliance Code	compliant
Country Of Origin	Ireland, Malaysia
ECCN code	EAR99
YTEOL	9.4
Other features	POLARIZED
Board mount options	PEG
body width	0.195 inch
subject depth	0.333 inch
body length	1.228 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.6958 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHTHALAMIDE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	23u inch
Rated current (signal)	1.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Evacuation force-minimum value	.2502 N

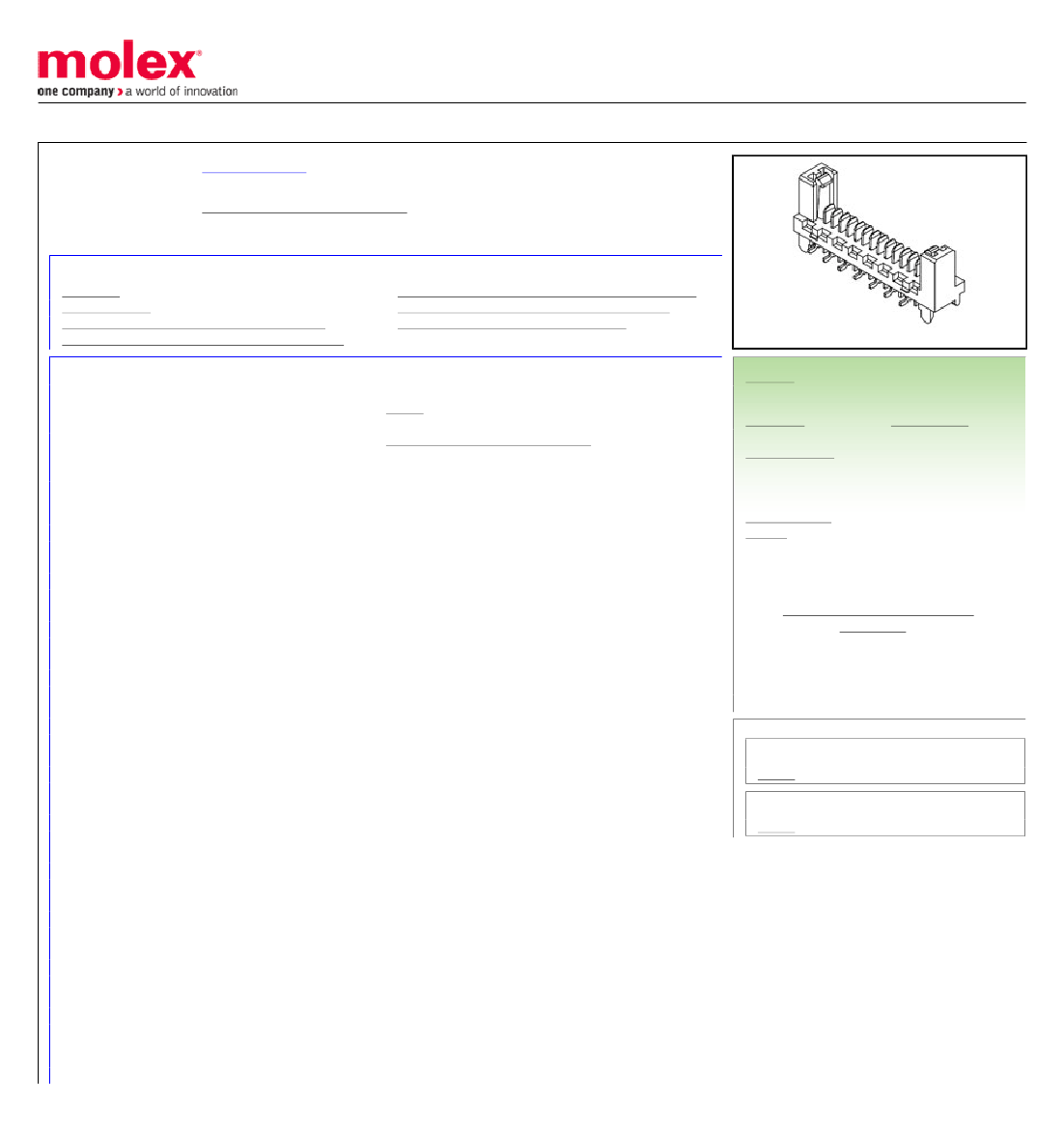

Preview

Download Datasheet

View All

This document was generated on 10/20/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0908163220

Active

Picoflex Ribbon-Cable Connectors

Picoflex Surface Mount Latched Vertical Header with PCB Pegs, 20 Circuits, PdNi with

Gold Flash Plating, Black

Documents:

3D Model

Drawing (PDF)

Product Specification PS-99020-0011 (PDF)

Product Specification TS-90816-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Packaging Specification PK-90816-001-001 (PDF)

Packaging Specification PK-90816-006 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Headers

90816

Signal, Wire-to-Board

Picoflex Ribbon-Cable Connectors

Picoflex

883906499433

Black

N/A

Yes

Brass

Gold over Palladium Nickel

Nickel

Nylon

1.115/g

Vertical

1.05mm

Yes

1.60mm

Embossed Tape on Reel

1.27mm

0.762µm

Yes

Partial

Yes

-40°C to +105°C

Surface Mount

1.2A

250V

Search Parts in this Series

90816 Series

Mates With

90327 Picoflex PF-50
