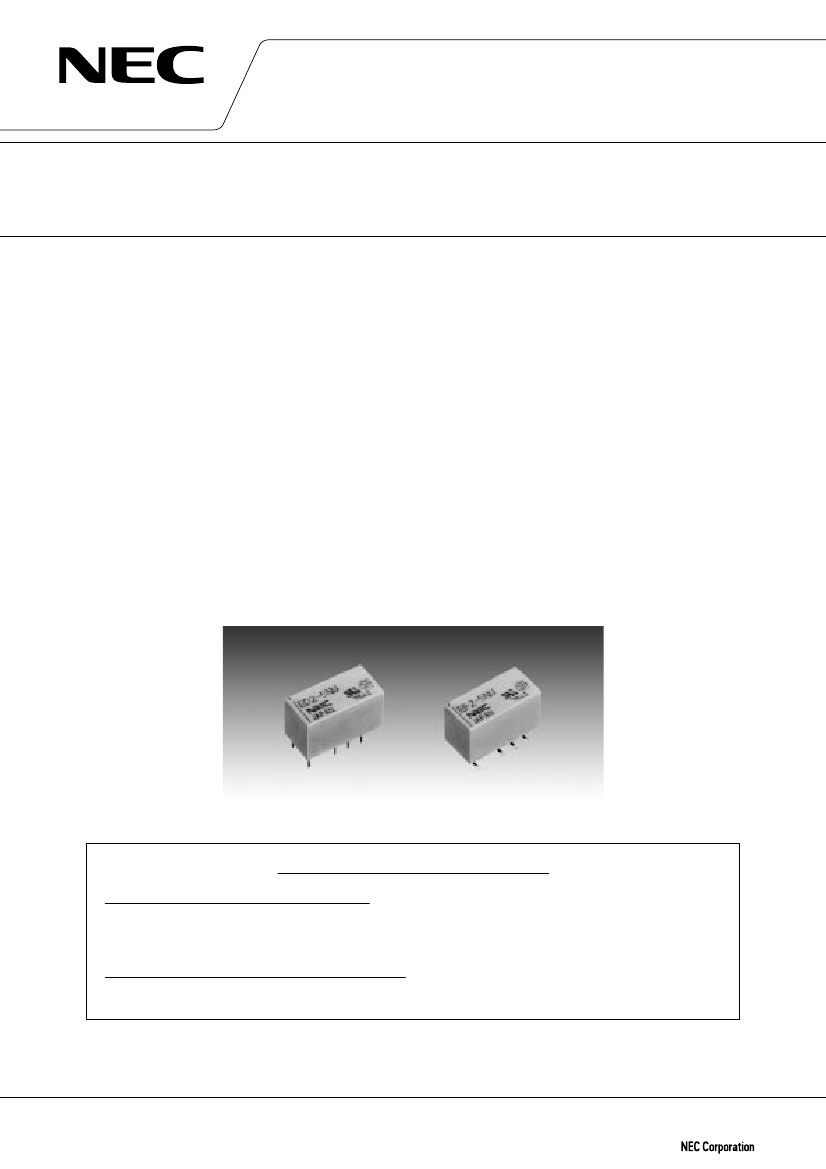

DATA S H E E T
MINIATURE SIGNAL RELAY
ED2/EF2 SERIES
Ultra-low power, compact and lightweight, High breakdown voltage,
Surface mounting type
DESCRIPTION
NEC's new miniature signal relays, ED2/EF2 series, achieved 50 mW of ultra low power consumption.
FEATURES
™
Low power consumption (50 mW)
™
Applicable for the surge voltage standard of FCC (1500 V, 10
×
160
µ
s) and BELLCORE (2500 V, 2
×
10
µ
s)
™
Two types for through-hole mounting (ED2 series) and surface mounting (EF2 series)
™
Variation of dense mounting type and/or long-joint-life type for latest SMT
• Compatible configuration and terminal allocation with dense mounting type of EE2 series
• Upgraded soldering joint reliability between the relay terminal and PCB by optimization of the terminal
configuration;
20-year-joint-life under 35˚C-per-day-temperature-difference specified in IPC-SM-785 for telecommuication
equipment
APPLICATIONS
Electronic switching systems, PBX, terminal equipment, telephone system, instrumental equipment.
For Right Use of Miniature Relays
DO NOT EXCEED MAXIMUM RATINGS.
Do not use relays under exceeding conditions such as over ambient temperature, over voltage
and over current. Incorrect use could result in abnormal heating, damage to related parts or
cause burning.
READ CAUTIONS IN THE SELECTION GUIDE.
Read the cautions described in NEC's "Miniature Relays" (ER0046EJ∗) when you choose relays
for your application.
The information in this document is subject to change without notice.
Document No. ER0304EJ2V0DS00 (2nd edition)
Date Published February 1999 M
Printed in Japan
©
1997
ED2/EF2 SERIES
DIMENSIONS AND PAD LAYOUTS
(Unit : mm (inch))
ED2 SERIES
15.0 (0.59) MAX.
9.4(0.37) MAX.
7.5 (0.30) MAX.
8 -
φ
0.8 (0.031)
10-
φ
0.8 (0.031)
3.2
(0.13)
0.5
(0.02)
5.08 2.54 2.54 2.54
(0.20)(0.10)(0.10)(0.10)
0.25
(0.01)
5.08
(0.20)
2.54
(0.100)
4
×
2.54 (0.100)
2.54
(0.100)
5
×
2.54 (0.100)
(Bottom fiew)
Note.
General tolerance :
±0.2
(±0.008)
Dimensions in
show basic size.
NJ type : Leads-2.8 mm (0.110)
Note.
General tolerance :
±0.1
(±0.004)
EF2 SERIES
EF2-..
EF2-..NU
15.0 MAX.
(0.591)
10.0 MAX.
(0.394)
7.5 MAX.
(0.296)
EF2-..NUX
1.0(0.039)
15.0 MAX.
(0.591)
10.35 MAX.
(0.408)
7.5 MAX.
(0.296)
2
×
2.54(0.100)
Non-latch and Single coil latch
2
×
2.54(0.1)
2.54(0.1)
Double coil latch
2.54(0.100)
note2
A
1.0
(0.039)
1.35
(0.053)
note2
note2
5.08
(0.200)
2-2.54
(2-0.100)
5.08
(0.200)
9.5
(0.374)
5.08
(0.200)
note2
2-2.54
(2-0.100)
5.08
(0.2)
9.0
(0.354)
5.08
(0.200)
3-2.54
(0.100)
(Bottom view)
EF2-..NUH
15.0 MAX.
(0.591)
10.0 MAX.
(0.394)
7.5 MAX.
(0.296)
EF2-..NUN
15.0 MAX.
(0.591)
10.6 MAX.
(0.418)
7.5 MAX.
(0.296)
note2
5.08
(0.200)
2-2.54
(2-0.100)
5.08
(0.200)
7.5
(0.295)
5.08
(0.200)
note2
2-2.54
(2-0.100)
5.08
(0.200)
7.5
(0.295)
Type
EF2-..
EF2-..NU
EF2-..NUX
EF2-..NUH
EF2-..NUN
A
3.0 (0.118)
3.0 (0.118)
2.73 (0.107)
2.0 (0.079)
2.0 (0.079)
B
7.29 (0.287)
7.29 (0.287)
7.02 (0.276)
6.29 (0.248)
6.29 (0.248)
1.0
(0.039)
1.6
(0.063)
Note 1.
General torelance :
±0.2
(
±0.008)
Note 2.
This pair of pins at the right end applies
to double coil latch type only.
Note 1.
General torelance :
±
0.1 (
±
0.004)
Note 2.
This pair of pads at the right end
applies to double coil latch type only.
2
DATA SHEET ER0304EJ2V0DS00
B
ED2/EF2 SERIES
PIN CONFIGURATIONS
(bottom view)
ED2 SERIES
1
3
4
5
R S
Index mark of
relay direction
12
10
9
8
12
10
9
8
1
3
4
5
S
12
10
9
8
7
1
3
4
5
6
R
Non-latch type
(not energized position)
Single coil latch type
(reset position)
Double coil latch type
(reset position)
S : Coil polarity of set (operate)
R : Coil polarity of reset (release)
EF2 SERIES
1
3
4
5
1
3
4
5
1
3
4
5
6
R S
S
12
10
9
8
12
10
9
8
7
R
Index mark of
relay direction
12
10
9
8
Non-latch type
(not energized position)
Single coil latch type
(reset position)
Double coil latch type
(reset position)
S : Coil polarity of set (operate)
R : Coil polarity of reset (release)
MARKINGS
(top view)
1
2
2
1
q
Part number
ED2-5
ED2-5NU
w
Manufacturer
e
Country of origin
r
Date code
5
9717
4
6
t
Index mark of relay direction
(pin No. 1, 12)
3
Standard type
4
3
UL recognized,
CSA certified type (Under application for latch type)
y
UL, CSA Marking
JAPAN
9717
5
JAPAN
SAFETY STANDARD AND RATING
UL Recognized
CSA Certificated
(UL508)*
(CSA C22.2 No14)
File No E73266
File No LR46266
30 Vdc, 1 A
(Resistive)
110 Vdc, 0.3 A (Resistive)
125 Vac, 0.5 A (Resistive)
* Spacing : UL114, UL478
DATA SHEET ER0304EJ2V0DS00
3
ED2/EF2 SERIES
PERFORMANCE CHARACTERISTICS
(Community)
Contact Form
Maximum Switching Power
Contact Ratings
Maximum Switching Voltage
Maximum Switching Current
Maximum Carrying Current
Minimum Contact Ratings
Initial Contact Resistance
Contact Material
Nominal Operating Power
Non-Latch Type
Single Coil Latch Type
Double Latch Type
Operate Time (Excluding Bounce)
Release Time (Excluding Bounce)
Insulation Resistance
Between Open Contacts
Breakdown Voltage
Between Adjacent Contacts
Non-latch type and single-coil latch type
1500 Vac for one minute (2500 V surge, 2
×
10
µ
s *
2
)
Double-coil latch type
1000 Vac for one minute (1500 V surge, 10
×
160
µ
s *
1
)
735 m / s
2
(75 G) (misoperating)
980 m / s
2
(100 G) (destructive failure)
10 to 55 Hz at double amplitude of 3 mm (20 G)
(misoperating)
10 to 55 Hz, double amplitude of 5 mm (30 G)
(Destructive failure)
Non-latch type (Additional “N”): –40 to +85˚C
Ambient Temperature
Non-latch type (Standard): –40 to +70˚C
Latch type : –40 to +70˚C
Coil Temperature Rise
No-load
Running specifications
Load
Weight
7 degrees at nominal coil voltage (50 mW)
1
×
10
8
*
3
operations (Non-latch type)
1
×
10
7
operations (Latch type)
50 Vdc 0.1 A (resistive), 1
×
10
6
operations at 70˚C
10 Vdc 10 mA (resistive), 1
×
10
6
operations at 70˚C
Approximately 2.2 grams
2 Form c
30 W (resistive)
220 Vdc
1A
2A
10 mV.dc, 10
µ
A *
4
50 mΩ typ. (Initial)
Silver alloy with gold alloy overlay
50 to 70 mW
30 to 80 mW
50 to 80 mW
Approximately 3 ms
Approximately 2 ms without diode
1000 MΩ at 500 Vdc
1000 Vac for one minute (1500 V surge, 10
×
160
µ
s
∗
1
)
62.5 VA (resistive)
250 Vac
Between Coil and Contact
Shock Resistance
Vibration Resistance
∗
1
rise time : 10
µ
s, fall time : 160
µ
s
∗
2
rise time : 2
µ
s, fall time : 10
µ
s
∗
3
This shows a number of operation where it can be running by which a fatal is not caused, and number of operation by wich
a stesdy characteristic is maintained is 1
×
10
7
times.
∗
4
This value is a reference value in the resistive load.
Minimum capacity changes depending on seitching frequency and enviroment temperature and the load.
4
DATA SHEET ER0304EJ2V0DS00
ED2/EF2 SERIES
PART NUMBER SYSTEM
ED2 – 9 S NU
Nil : Standard type
NU : UL recognized, CSA certified type
NJ : Trimed leads
(UL recognized, CSA certified type)
Latch type
Nil : Non-latch type (Note
1)
S : Single coil latch type
T : Double coil latch type
Nominal coil voltage
1.5, 3, 4.5, 5, 6, 9, 12, 24 V
ED2 series
EF2 - 5 S NUH
Feature
Nil
NU
NUX
NUH
NUN
: Standard type
: UL recognized, CSA certified type
: High solder joint reliability (20 years)
: Minimum footprint (7.5
×
15)
: High solder joint reliability with minimum footprint
Latch type
Nil : Non-latch type (Note
2)
S : Single coil latch type
T : Double coil latch type
Nominal coil voltage
1.5, 3, 4.5, 5, 6, 9, 12, 24 volts
EF2 series
(UL, CSA : Under application for latch type)
Note 1.
There are two specification in operate voltage of Non-latch type relay.
Part Number
Additional “N” type
Standard type
∗
: Nominal coil voltage
ED2-*NU
-*NJ
ED2-∗
Must Operate Voltage
75%
80%
Note 2.
There are two specification in operate voltage of Non-latch type relay.
Part Number
ED2-*NU
-*NUX
-*NUH
-*NUN
EF2-∗
Must Operate Voltage
Additional “N” type
75%
Standard type
∗
: Nominal coil voltage
80%
DATA SHEET ER0304EJ2V0DS00
