CC1008-820G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CC1008-820G

CC1008-820G: DescriptionGeneral Purpose Inductor, 0.82uH, 2%, 1 Element, Ceramic-Core, SMD, 1211, CHIP, 1211; CategoryPassive components inductor; File Size2MB，1 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

CC1008-820G Overview

General Purpose Inductor, 0.82uH, 2%, 1 Element, Ceramic-Core, SMD, 1211, CHIP, 1211

CC1008-820G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	CHIP, 1211
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1211
structure	Chi
core material	CERAMIC
DC Resistance	1.61 Ω
Nominal inductance(L)	0.82 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.28 mm
Package length	2.92 mm
Package form	SMT
Package width	2.8 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	45
Maximum rated current	0.386 A
self resonant frequency	350 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 100 MHZ
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25 MHz
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

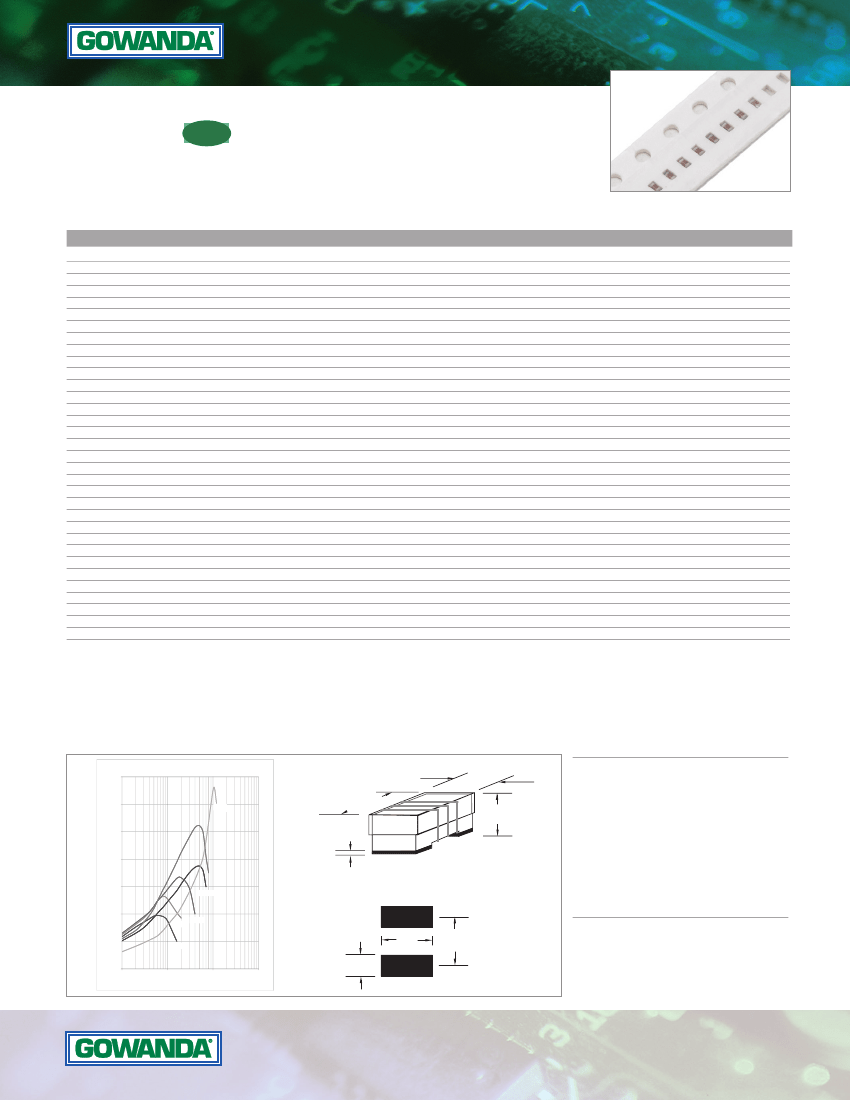

STANDARD RF INDUCTORS - SURFACE MOUNT

CC1008

COMPLIANT

RoHS

Ceramic Wirewound, Open Construction

L TEST

FREQ

MHz

7.9

FREQ

MHz

CERAMIC CORE

500

350

100

SRF

MHz

MIN

4100

3300

2500

2400

1600

1300

1500

1300

1000

950

850

750

700

600

570

500

450

415

375

350

290

250

200

160

DCR

OHMS

MAX

0.08

0.09

0.10

0.11

0.12

0.13

0.14

0.15

0.16

0.18

0.20

0.22

0.56

0.63

0.70

0.77

0.84

0.91

1.05

1.12

1.19

1.33

1.47

1.61

1.75

2.00

2.30

2.60

2.80

3.80

4.20

4.40

4.90

CURRENT

RATING

mA DC MAX

1000

655

617

585

560

535

515

475

460

450

425

405

385

370

345

325

305

295

250

240

235

220

PART

NUMBER

CC1008-010*

CC1008-012*

CC1008-015*

CC1008-018*

CC1008-022*

CC1008-027*

CC1008-033*

CC1008-039*

CC1008-047*

CC1008-056*

CC1008-068*

CC1008-082*

CC1008-100*

CC1008-120*

CC1008-150*

CC1008-180*

CC1008-220*

CC1008-270*

CC1008-330*

CC1008-390*

CC1008-470*

CC1008-560*

CC1008-680*

CC1008-820*

CC1008-101*

CC1008-121*

CC1008-151*

CC1008-181*

CC1008-221*

CC1008-271*

CC1008-331*

CC1008-391*

CC1008-471*

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

MIN

Substitute “M” for 20% tolerance, “K” for 10% tolerance or “J” for 5% tolerance

Substitute “M” for 20% tolerance, “K” for 10% tolerance, “J” for 5% tolerance or “G” for 2% tolerance

Substitute “K” for 10% tolerance, “J” for 5% tolerance or “G” for 2% tolerance

Custom designs are available to meet your specific requirements; please contact factory.

140

Typical Q Versus Frequency

CC1008

0.110 (2.8)

MAX

0.115 (2.92)

MAX

0.008 (0.20)

REF

0.090 (2.28)

MAX

120

!"#$%

12nH

100

NOTES:

• Operating Temperature Range:

-40°C to +125°C

• Current Rating is based on a 35°C

temperature rise at an ambient

temperature of 90°C

• Terminations are Gold Plated Nickel

• Inductance and Q measured using the HP4291A

• SRF measured using the HP8753C

47nH

100nH

RECOMMENDED FOOT PRINT

750nH

TAPE AND REEL SPECS:

330nH

1800nH

10.00

100.00

1000.00

10000.00

0.040

(1.016)

0.100

(2.54)

0.090

(2.29)

in. (mm)

Pcs./Reel maximum

Pitch between parts:

Tape width:

Reel diameter:

2000

4 mm

8 mm

7 in.

Frequency MHz

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

011314
