Size 16 Coaxial Socket
D38999
M39029/77
852-009
Shielded
Contacts
Ser. I, III, IV

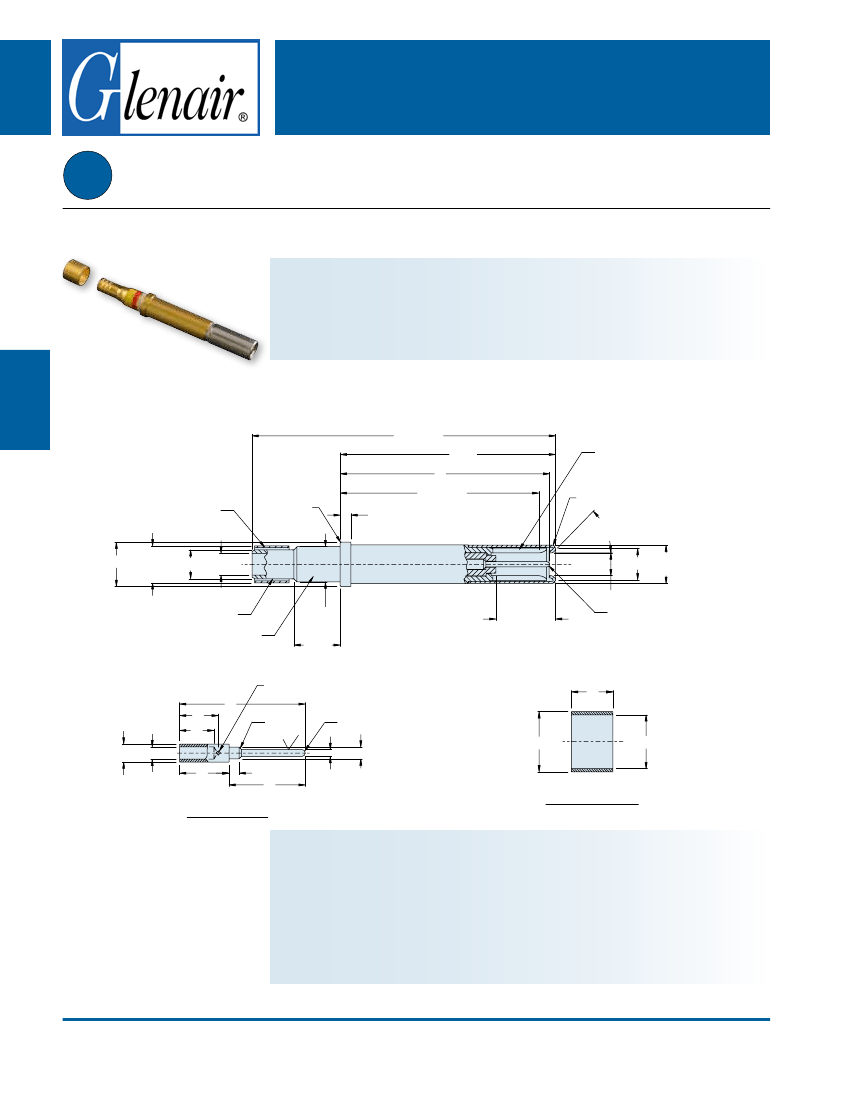

Size #16 Coaxial Socket Contacts for MIL-DTL-38999 Series I, III and IV Connectors
These #16 socket contacts accept 50 ohm and 75 ohm coaxial cable. Inner contact is rated at
1 amp, the outer contact 12 amps. DWV rating is 800 Vac rms sea level, 250 Vac at 50,000 feet.
Contacts are packaged individually and are unassembled with instruction sheet. One contact
consists of outer contact , fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner
and outer contacts are gold-plated copper alloy. Approved to SAE AS39029. VSWR rating 1.5:1
maximum up to 700 MHz. 5000 megohm insulation resistance. Mates with: M39029/76.
B
.896 Max
.626
.620
X
.585 Min
Shield Crimp Sleeve
R .003 Max
.033
.029
*
Outer Contact Mates
with .0635/.0615 Pin
(Spring Design Optional)
R .002 Min
47°
43°
ØC
ØA
Max
ØF
ØG
After
Crimp
ØZ
ØD
Outer Contact Barrel
BIN Color Bands
(See Table)
ØE
.063
Min
R .020 Thru One Wall Only
.013 Radial Location Optional
47°/43°
32
Spherical Radius
.166 Min
Depth
ØB
Inner Pin Contact
N
P
ØM
ØL
R
U
K
ØJ
ØV
ØW
Shield Crimp Sleeve
ØH
S
T
Inner Pin Contact
Material and Finish
Contact Body: Copper Alloy/Gold Plated
Hood: Stainless Steel/Passivated
Center Contact: Copper Alloy/Gold Plated
Crimp Sleeve: Copper Alloy/Gold Plated
Insulator: Teflon
* Indicates point at which a square ended pin of the same basic diameter as the mating
contact first engages the outer contact spring
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
