NOTES:
1. IDENTIFICATION: 1RU HORIZONTAL, MIXED (4) C-13 & (4) C-19, METERED
208V / 20A / SINGLE-PHASE POU
PART NO.
HB1B1E0BA08W1
COLOR
BLACK
2. ACCESSORY COMPONENTS:
(4) 10-32 x 1/2” MOUNTING SCREWS
(4) 12-24 x 1/2” MOUNTING SCREWS
3. DIMENSIONS IN PARENTHESES ARE METRIC (mm).
4. POWER METER - RED, 4-DIGIT LED CONTINUOUSLY SCROLLS
THROUGH POWER FACTOR, AMPS, VOLTS (RMS), AND
REAL POWER IN WATTS (RMS).
®
5. UL
®
& c-UL LISTED 60950 AND NOM COMPLIANT.
6. RoHS COMPLIANT.
18.9 [480.1]
17.0 [431.8]
7. VISIT OUR ON-LINE CATALOG AT WWW.PANDUIT.COM FOR
A CURRENT LIST OF PRODUCTS APPLICABLE FOR USE
WITH THIS PART.
8. MAXIMUM AVAILABLE INPUT POWER = 3.3 KW
9. INSTALLATION SHALL COMPLY WITH ALL APPLICABLE
NATIONAL, STATE, AND LOCAL CODES.
1.85 [47.0]
POWER METER
PANDUIT P/N
HB1B1E0BA08W1
WEIGHT
6 lb (2.7 kg)
1.72 [43.7]
10 FOOT INLET POWER CORD
PLUG
20 AMP, 250V
STRAIGHT BLADE
NEMA 6-20P
09V098CI/01.PRT
09V098CI_DC/01A.PRT
FOUR (4)
RECEPTACLES
15 AMP, 250V
STRAIGHT BLADE
IEC 60320/C13
FOUR (4)
RECEPTACLES
20 AMP, 250V
STRAIGHT BLADE
IEC 60320/C19
1RU HORIZONTAL, MIXED (4) C-13 & (4) C-19, METERED
POWER OUTLET UNIT

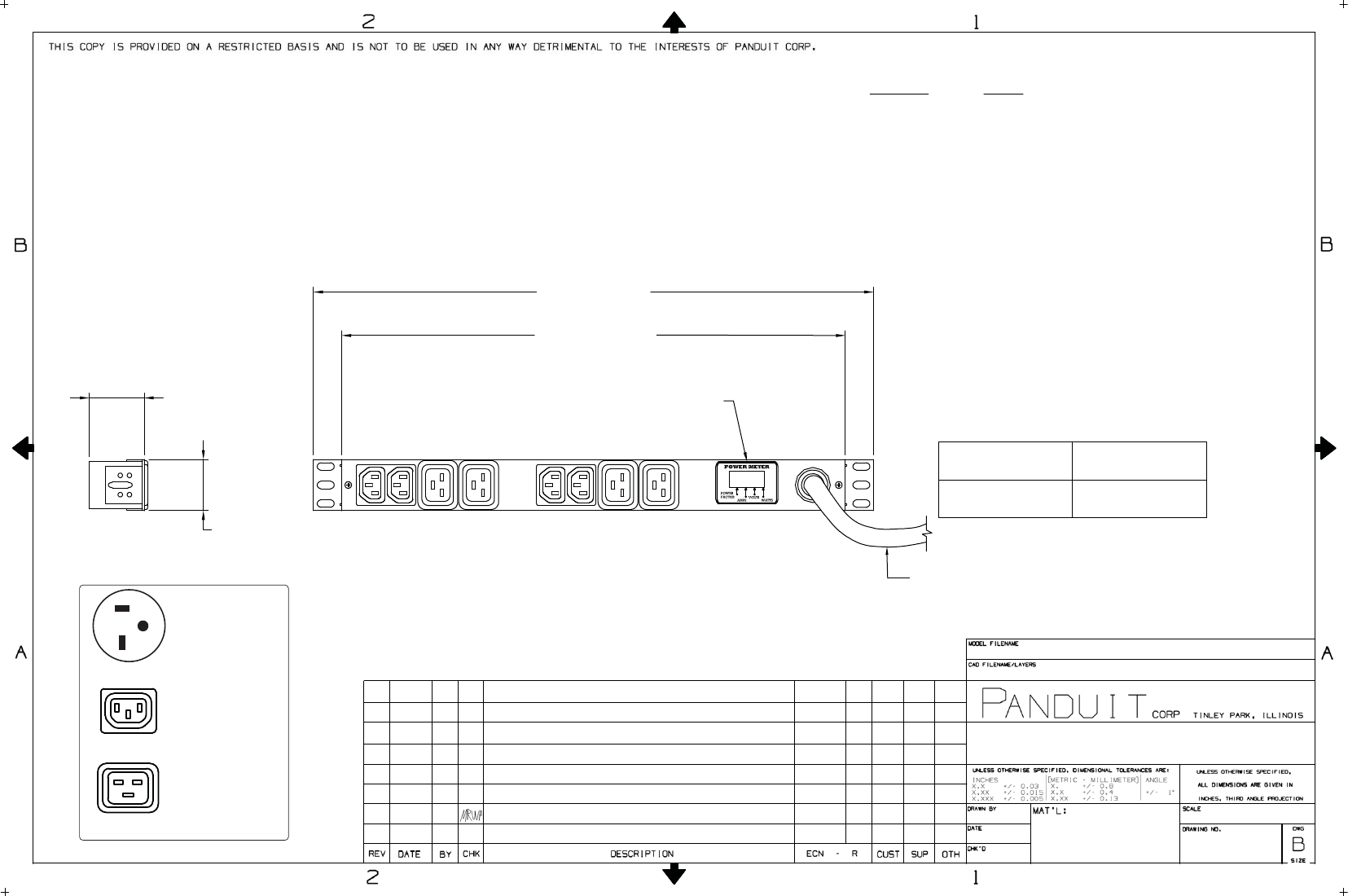

CUSTOMER DRAWING
01A
00A
9-5-12
2-24-11
PIP
A. UPDATED NOTE #5 & 8.
B. ADDED NOTE #9.
09V098CI
09V098CI
MAV
2-24-11
NONE
09V098CI
MAV KRKE
RELEASED TO PRODUCTION
KRKE
