8A26-2030-LJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8A26-2030-LJ

8A26-2030-LJ: DescriptionI/O Connectors 26P RT ANGLE SMT TYPE MINI-SAS; CategoryThe connector The connector; File Size436KB，10 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

8A26-2030-LJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8A26-2030-LJ	-	-	View	Buy Now

8A26-2030-LJ Overview

I/O Connectors 26P RT ANGLE SMT TYPE MINI-SAS

8A26-2030-LJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8A26
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ZINC ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0

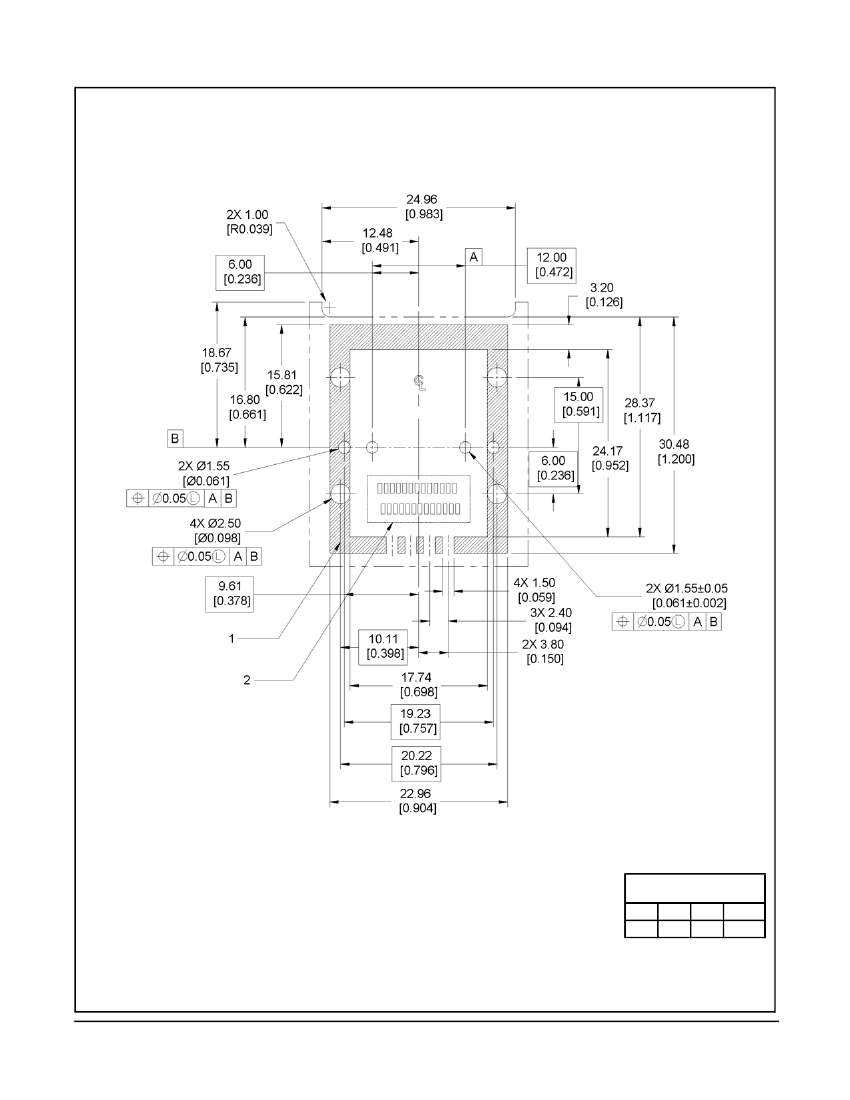

Preview

Download Datasheet

View All

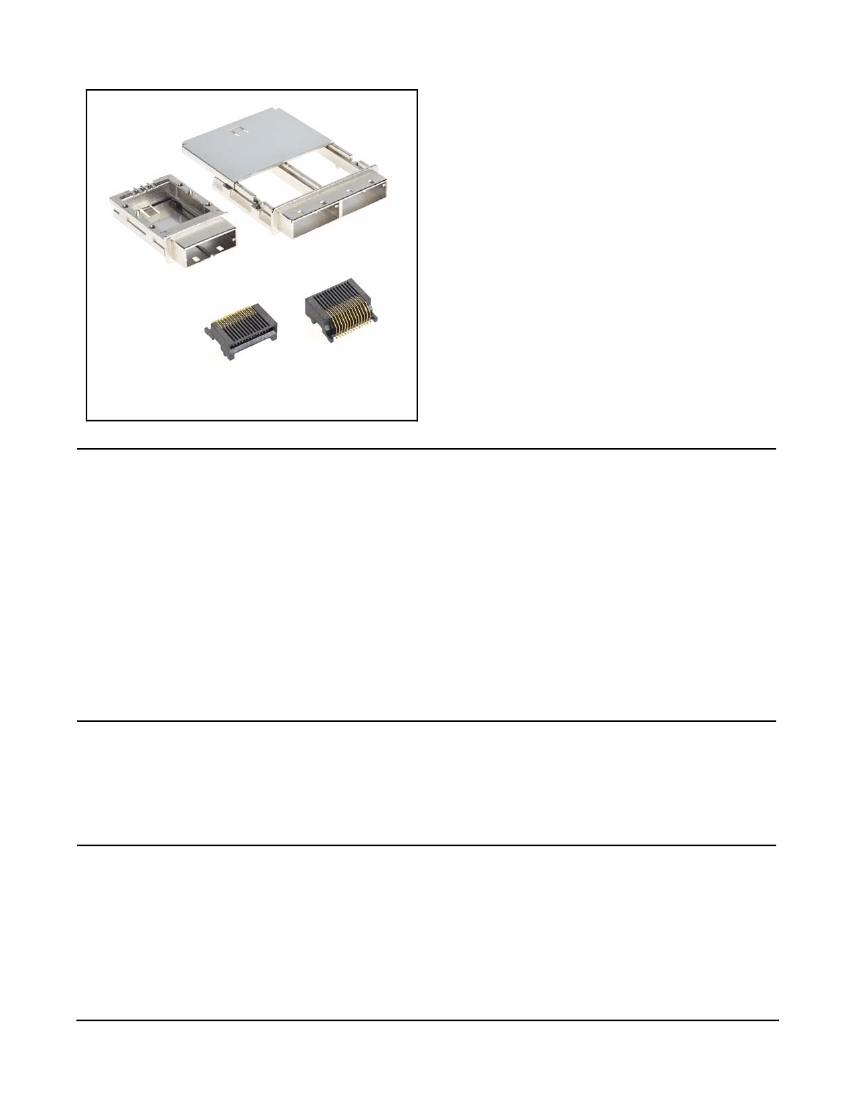

3M™ Mini Serial Attached SCSI (miniSAS) Connector

Right Angle Surface Mount Receptacle/Metal Cage

8A26/8C26 Series

• 6.0 Gbps aggregate input/output connector for

server applications

• 1 × 1 and 1 × 2 screw mounted cages for

external cable assembly applications

• Meets SFF-8086 Specification

• Meets SFF-8088 Specification

• Meets SAS Specification, SAS-1.1

• Multiple cage key options available

• See Regulatory Information Appendix (RIA)

for chemical compliance information

Date Modified: October 11, 2007

TS-2211-C

Sheet 1 of 7

Physical

Insulation Material:

High Temperature Thermoplastic

Flammability:

UL 94V-0

Color:

Black

Contact Material:

Copper Alloy

Underplating Plating:

50 µ" [ 1.27 µm ] Nickel

Wiping Area Plating:

30 µ" [ 0.76 µm ] Gold

Solder Tails Plating:

100 µ" [ 2.54 µm ] Matte Tin

EMI Guide Cage Outer Shell Material:

Zinc Alloy

Plating:

30 µ" [ 0.762 µm ] Nickel (RIA El and C1 apply)

Cover Material:

Stainless Steel 0.25 mm [ 0.010" ]

Cover Plating:

30 µ" [ 0.762 µm ] Nickel

EMI Gasket Material:

Conductive Foam

Electrical

Connector

Current Rating:

Per Contact: 0.5 A

300 V

min. for 1 minute

Insulation Resistance:

MΩ min.

Withstanding Voltage:

Environmental

Operating Temperature:

-20°C to +85°C (Connector and metal cage)

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

8A26-2030-LJ Related Products

	8A26-2030-LJ	8C26-1A000	8A26-2030-LJ-PP	8A26-2030-LJ-TR	8C26-2AA00	8C26-12000	8C26-24400
Description	I/O Connectors 26P RT ANGLE SMT TYPE MINI-SAS	I/O Connectors RA RCPT MTL EMI CAGE EXT DUAL KEY	I/O Connectors 26PIN/RASMT/TYPE30" G-PLTNG TRAY MYLR CP	26 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT	I/O Connectors MSAS EXT CAGE 26 PIN 1X2, KEY 2 u0026 4	I/O Connectors XE004226173 8C26-12000 =MSAS-EXTERNAL CAGE, 26 PIN, 1 BY 1,KEY 2	I/O Connectors 26P EXT CAGE MINISAS 1X2 KEY 4 u0026 4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN (100) OVER NICKEL (50)	Matte Tin (Sn) - with Nickel (Ni) barrier	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN OVER NICKEL	MATTE TIN (100) OVER NICKEL (50)	MATTE TIN (100) OVER NICKEL (50)	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY	ZINC ALLOY
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	26	26	26	52	26	52
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	3M	3M	3M	-	3M	3M	3M
