39-29-1103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-29-1103

39-29-1103: DescriptionRectangular Power Connector, 10 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-29-1103 Overview

Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal

39-29-1103 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	MINI-FIT JR
Connector type	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5566
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Shell material	NYLON
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

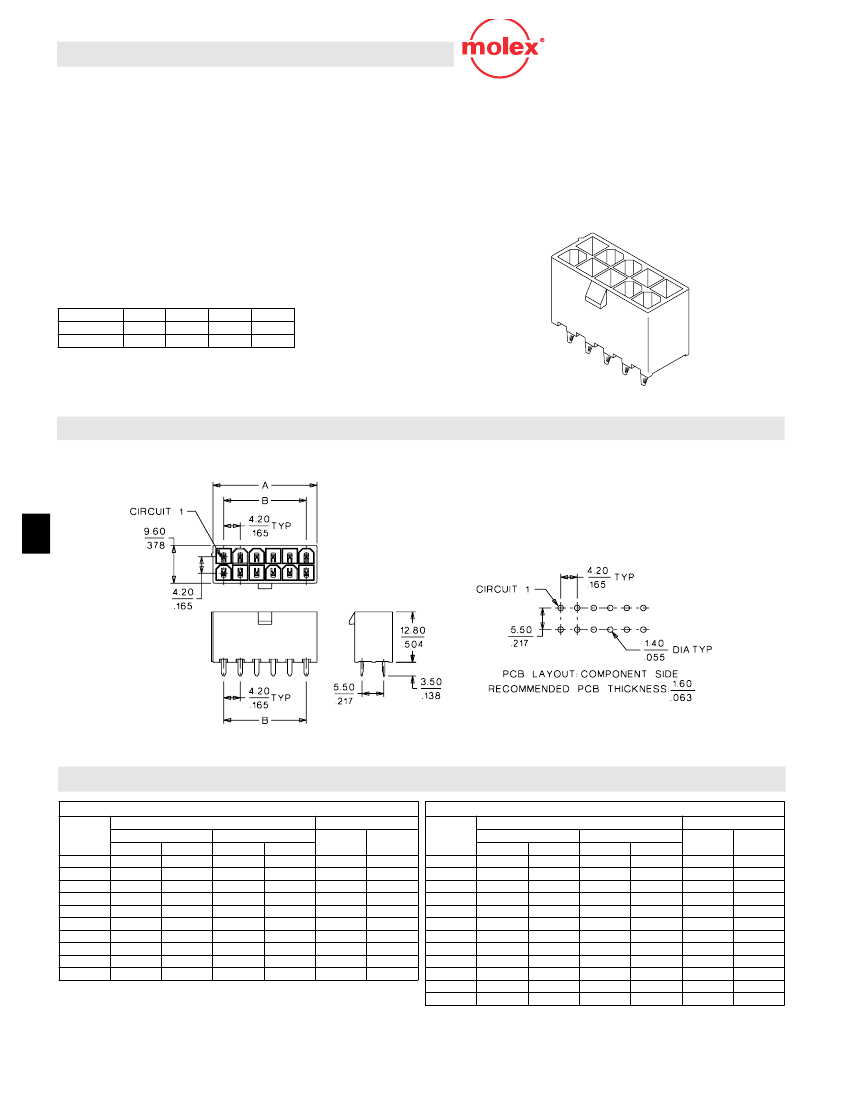

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Electrical (cont’d)

Positive housing locks to mate with Mini-Fit, Jr. receptacle Contact Resistance: 10m

Ω

max.

Fully isolated terminals to protect contacts from damage Dielectric Withstanding Voltage: 1500V AC

Insulation Resistance: 1000 M

Ω

min.

Reference Information

Mechanical

Product Speciﬁcation: PS-5556-0001

Contact Insertion Force: 1.5kg max.

Packaging: Tray or bag

Contact Retention to Housing: 3.0kg min.

UL File No.: E29179

Wire Pull-Out Force: 9.0kg min.

CSA File No.: LR19980

Insertion Force to PCB: 5.0kg max.

TUV License No.: R75142

Mating Force: 0.7kg (1.54 lb) max.

Mates With: 5557 receptacle

Unmating Force: 0.35kg (0.7 lb) min.

Designed In: Millimeters

Normal Force: 200g min.

Electrical

Durability: 30 cycles

Voltage: 600V

Physical

Current: (Used with 16 AWG)

Housing: 6/6 nylon, UL 94V-2 or 94V-0

Circuits

2–3

4–6

7–10

12–24

Contact: Brass or Phosphor Bronze

Amperes-Jr.

Plating: Tin, select Gold or overall Gold

Amperes-HCS

Temperature: -40 to +105˚C

4.20mm (.165") Pitch

Mini-Fit, Jr.

™

Header

5566

Vertical, Dual Row

Without Pegs

Power Connectors

ORDERING INFORMATION AND DIMENSIONS

With Drain Holes

Order No.

Circuits

Tin Plated

94V-2

94V-0

•39-29-3026

•39-31-0020

•39-29-3046

•39-31-0040

•39-29-3066

•39-31-0060

•39-29-3086

•39-31-0080

•39-29-3106

•39-31-0100

•39-29-3126

•39-31-0120

•39-29-3146

•39-31-0140

•39-29-3166

•39-31-0160

•39-29-3206

•39-29-3226

Gold Plated (30

94V-2

94V-0

•39-31-0027

•39-31-0028

•39-31-0047

•39-31-0048

•39-31-0067

•39-31-0068

•39-31-0087

•39-31-0088

•39-31-0107

•39-31-0108

•39-31-0127

•39-31-0128

•39-31-0147

•39-31-0148

•39-31-0167

•39-31-0168

•39-31-0207

•39-31-0227

5.40

9.60

13.80

18.00

22.20

26.40

30.60

34.80

43.20

47.40

(.210)

(.380)

(.540)

(.710)

(.870)

(1.040)

(1.200)

(1.370)

(1.700)

(1.870)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

37.80

42.00

Dimension

(.170)

(.330)

(.500)

(.660)

(.830)

(.990)

(1.160)

(1.490)

(1.650)

Circuits

Without Drain Holes

Order

Tin Plated

94V-2

94V-0

•39-28-1023

•39-28-8020

•39-28-1043

•39-28-8040

•39-28-1063

•39-28-8060

•39-28-1083

•39-28-8080

•39-29-1103

•39-28-8100

•39-28-1123

•39-28-8120

•39-28-1143

•39-28-8140

•39-28-1163

•39-28-8160

•39-28-1183

•39-28-8180

•39-28-1203

•39-28-8200

•29-28-1223

•39-28-8220

•39-28-1243

•39-28-8240

No.

Gold Plated (30

94V-2

94V-0

•39-29-0023

•39-29-6028

•39-29-0043

•39-29-6048

•39-29-0063

•39-29-6068

•39-29-0083

•39-29-6088

•39-29-0103

•39-29-6108

•39-29-0123

•39-29-6128

•39-29-0143

•39-29-6148

•39-29-0163

•39-29-6168

•39-29-0183

•39-29-6188

•39-29-0203

•39-29-6208

•39-29-0223

•39-29-6228

•39-29-0243

•39-29-6248

5.40

9.60

13.80

18.00

22.20

26.40

30.60

34.80

39.00

43.20

47.40

51.60

(.210)

(.380)

(.540)

(.710)

(.870)

(1.040)

(1.200)

(1.370)

(1.540)

(1.700)

(1.870)

(2.030)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

Dimension

(.170)

(.330)

(.500)

(.660)

(.830)

(.990)

(1.160)

(1.320)

(1.490)

(1.650)

(1.820)

• US Standard Product, available through Molex franchised distributors

K-40

990

39-29-1103 Related Products

	39-29-1103	29-28-1223
Description	Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 22 Contact(s), Male, Solder Terminal
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
Other features	MINI-FIT JR	MINI-FIT JR
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	5566	5566
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Shell material	NYLON	NYLON
Termination type	SOLDER	SOLDER
Total number of contacts	10	22
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
