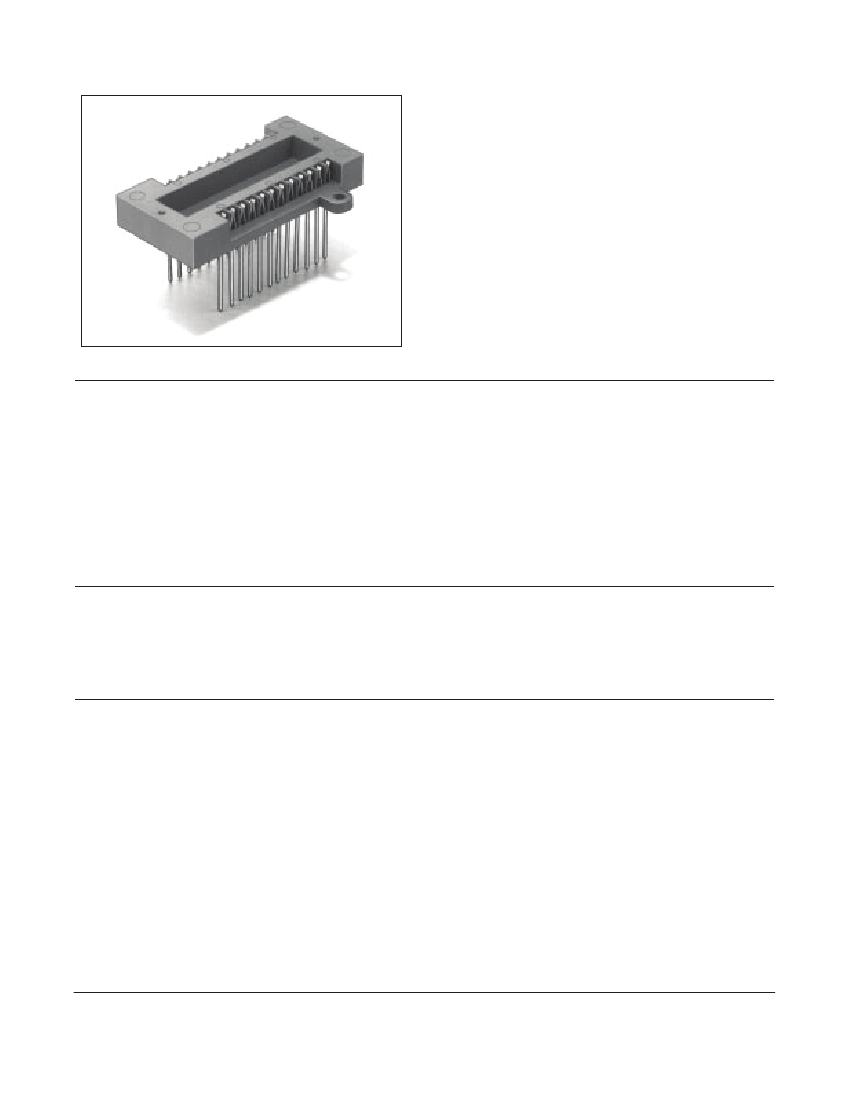

receptacle (2 screws provided with each receptacle)
• Available in wire-wrap and solder-tail options, with
and without mounting flanges
Date Modified: September 17, 2012
TS-0454-B
Sheet 1 of 3
Physical
Insulation
Material:
Flammability:
Color:
Marking:
Contact:
Material:
Plating:
Glass Filled Polysulfone
UL 94V-0
Green
3M Logo & Part Number Identifier
Beryllium Copper
30 µ” (0.76 µm) Gold over 50 µ” (1.3 µm) Nickel
Electrical
Current Rating:
1 Amp
Insulation Resistance:
> 1 10
9
W at 500 Vdc
Withstanding Voltage:
1,000 Vrms at Sea Level
Environmental
Operating Temperature Rating:
- 55°C to +125°C
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Textool
™
Receptacles for DIP Sockets
Receptacle Part
Numbers
214-3339-XX
216-3340-XX
218-3341-XX
220-3342-XX
222-3343-XX
224-1275-XX
224-5248-XX
228-1277-XX
228-4817-XX
228-1290-XX
232-1285-XX
240-3639-XX
240-1280-XX
242-1293-XX
242-1281-XX
248-1282-XX
264-1300-XX
264-4493-XX
290-1294-XX
Dimensions
A
1.00
[ 25.4 ]
[ 24.4 ]
[ 24.1 ]
1.00
[ 25.4 ]
1.06
[ 26.9 ]
1.26
[ 32.0 ]
.96
[ 24.4 ]
1.26
[ 32.0 ]
1.06
[ 26.9 ]
1.09
[ 27.9 ]
1.25
[ 32.0 ]
1.66
[ 42.2 ]
1.27
[ 32.3 ]
1.30
[ 33.0 ]
1.26
[ 32.0 ]
1.25
[ 31.8 ]
1.52
[ 38.5 ]
1.70
[ 43.2 ]
1.61
[ 40.8 ]
C
.30
[ 7.6 ]
F
E
Ref
B
.13 or .62
[ 3.3 ] or [ 15.7 ]
Contact Tail
Length
B
.60
[ 15.2 ]
.56
[ 14.2 ]
.55
[ 14.0 ]
.60
[ 15.2 ]
.65
[ 16.5 ]
.86
[ 21.8 ]
.56
[ 14.2 ]
.86
[ 21.8 ]
.66
[ 16.8 ]
.70
[ 17.8 ]
.86
[ 21.9 ]
1.26
[ 32.0 ]
.86
[ 21.8 ]
.90
[ 22.9 ]
.86
[ 21.8 ]
1.11
[ 28.3 ]
1.30
[ 33.0 ]
1.19
[ 30.2 ]
C
1.28
[ 32.5 ]
1.37
[ 34.8 ]
1.49
[ 37.8 ]
1.58
[ 40.1 ]
1.69
[ 42.9 ]
1.77
[ 45.0 ]
D
.820
[ 20.83 ]
.773
[ 19.63 ]
.770
[ 19.56 ]
.820
[ 20.83 ]
.870
[ 22.09 ]
1.080
[ 27.43 ]
.773
[ 19.63 ]
1.085
[ 27.56 ]
.887
[ 22.53 ]
.92
[ 23.4 ]
1.08
[ 27.5 ]
1.480
[ 37.59 ]
1.085
[ 27.56 ]
1.12
[ 28.5 ]
1.080
[ 27.43 ]
1.070
[ 27.18 ]
1.34
[ 34.0 ]
1.520
[ 38.61 ]
1.42
[ 36.0 ]
E
.300
[ 7.62 ]
F
.600
[ 15.26 ]
.700
[ 17.78 ]
.804
[ 20.42 ]
.900
[ 22.86 ]
1.005
[ 25.53 ]
1.100
[ 7.62 ]
1.300
[ 33.02 ]
1.301
[ 33.05 ]
.970
[ 24.74 ]
1.500
[ 38.10 ]
1.900
[ 48.26 ]
1.900
[ 48.26 ]
1.460
[ 37.08 ]
2.00
[ 50.80 ]
2.500
[ 63.50 ]
2.230
[ 56.64 ]
3.243
[ 82.37 ]
3.150
[ 80.01 ]
G
H
96
95
.300
[ 7.62 ]
1.98
[ 50.3 ]
1.59
[ 40.5 ]
2.17
[ 55.2 ]
2.58
[ 65.5 ]
2.08
[ 52.9 ]
2.68
[ 68.1 ]
2.98
[ 75.8 ]
2.85
[ 72.5 ]
3.95
[ 100.3 ]
3.77
[ 95.7 ]
.400
[ 10.16 ]
.600
[ 15.24 ]
.300
[ 7.62 ]
.600
[ 15.24 ]
.400
[ 10.16 ]
.600
[ 15.24 ]
1.000
[ 25.4 ]
.600
[ 15.24]
.600
[ 15.24 ]
.600
[ 15.24 ]
.600
[ 15.24 ]
.800
[ 20.32 ]
.900
[ 22.86 ]
.100
[ 2.54 ]
.40
[ 10.2 ]
.070
[ 1.78 ]
.41
[ 10.4 ]
.100
[ 2.54 ]
.40
[ 10.2 ]
.070
[ 1.78 ]
.100
[ 2.54 ]
.070
[ 1.78 ]
.100
[ 2.54 ]
.070
[ 1.78 ]
.41
[ 10.4 ]
.40
[ 10.2 ]
.50
[ 12.7 ]
.41
[ 10.4 ]
.50
[ 12.7 ]
.41
[ 10.4 ]
Tolerance
Dimension
Inch
(mm)
A
D
E
Tolerance
.00
.000
(.0)
(.00)
± .010 ± .005
(± .25) (± .13)
2X #0-80 Tapped Hole
H
G
2X Dia. .093 Typ
(2.36)
.27
[ 6.9 ]
.09
[ 2.3 ]
.025 Sq Typ
[ 0.64 ]
TS-0454-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Textool
™
Receptacles for DIP Sockets
Ordering Information
Receptable
Part Numbers
3
3
3
3
3
1
3
1
3
2
1
3
1
2
1
1
2
3
2
214-3339-XX-0602J
216-3340-XX-0602J
218-3341-XX-0602J
220-3342-XX-0602J
222-3343-XX-0602J
224-1275-XX-0602J
224-5248-XX-0602J
228-1277-XX-0602J
228-4817-XX-0602J
228-1290-XX-0602J
232-1285-XX-0602J
240-3639-XX-0602J
240-1280-XX-0602J
242-1293-XX-0602J
242-1281-XX-0602J
248-1282-XX-0602J
264-1300-XX-0602J
264-4493-XX-0602J
290-1294-XX-0602J
32
40
42
48
64
90
.100 [2.54 ]
.070 [ 1.78 ]
.100 [2 54 ]
.070 [ 1.78 ]
.100 [2.54 ]
.070 [ 1.78 ]
.800 [ 20.32 ]
.900 [ 22 86 ]
28
.070 [ 1.78 ]
Contact
Quantity
14
16
18
20
22
24
Dimensions
Distance Between
Contact Spacing
Rows
.300 [ 7 62 ]
.100 [2.54 ]
.400 [ 10.16 ]
.600 [ 15.24 ]
.300 [ 7.62 ]
.600 [ 15.24 ]
.400 [ 10 16 ]
.600 [15.24 ]
1.000 [25.40 ]
.600 [15 24 ]
Contact Tail Length:
XX
= 09, .13 [ 3.3 ] Solder Tail w/ flanges
= 19, .62 [ 15.8 ] Wire Wrap w/ flanges
= 29, .13 [ 3.3 ] Solder Tail w/out flanges
= 39, .62 [ 15.8 ] Wire Wrap w/out flanges
Tolerance
Dimension
Inch
(mm)
Tolerance
.00
.000
(.0)
(.00)
± .010 ± .005
(± .25) (± .13)
1
Available with -09, -19, -29 and -39 options.
2
Only available with the -09 & -29 option for the .070” (1.78 mm) spacing
3
Only available with -09 and -19 options
TS-0454-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
