39716-0009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39716-0009

39716-0009: DescriptionPluggable Terminal Blocks PLUG HORIZ DBL WIRE ENT MTG 9C-GRN; CategoryThe connector; File Size157KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39716-0009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39716-0009	-	-	View	Buy Now

39716-0009 Overview

Pluggable Terminal Blocks PLUG HORIZ DBL WIRE ENT MTG 9C-GRN

39716-0009 Parametric

Parameter Name	Attribute value
Product Category	Pluggable Terminal Blocks
Manufacturer	Molex
RoHS	Not Applicable
Product	Plugs
Number of Positions	9 Position
Factory Pack Quantity	400

Preview

Download Datasheet

View All

TYP.

.29

CIRCUITS

PART

NUMBER

397160002

397160003

397160004

397160005

397160006

397160007

397160008

397160009

397160010

397160011

397160012

PART NUMBER DATA

ENGINEERING

NUMBER

M750B-20-2-02-3

M750B-20-2-03-3

M750B-20-2-04-3

M750B-20-2-05-3

M750B-20-2-06-3

M750B-20-2-07-3

M750B-20-2-08-3

M750B-20-2-09-3

M750B-20-2-10-3

M750B-20-2-11-3

M750B-20-2-12-3

COLOR

GREEN

A IN mm

.78

.98

1.18

1.38

1.58

1.78

1.98

2.18

2.38

2.58

2.78

19.8

24.9

30.0

35.1

40.2

45.2

50.3

55.4

60.5

65.6

70.6

B IN mm

.200

.400

.600

.800

1.000

1.200

1.400

1.600

1.800

2.000

2.200

5.08

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

C IN mm

.600

.800

1.000

1.200

1.400

1.600

1.800

2.000

2.200

2.400

2.600

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

REF. LAST 2 DIGITS OF PART NUMBER EQUALS CIRCUIT COUNT

.200

5.08

.85

.200

TYP.

.33

.18

WIRE ENTRY

TYP.

M750B

.57

.23

1.14

WIRE ENTRY

SPECIFICATIONS

1.MATERIAL:

A. BODY : PA66, UL94 V-0

B. SCREW: M3 STEEL, ZINC PLATED

C. COVER: PA66, UL94 V-0

D. CAGE: BRASS, NI PLATED

E. CONTACT: Cu ALLOY, TIN PLATED

F. MTG SCREW: M2.5, STEEL, ZINC PLATED

3.RATING: 250V, 12A

4.MAX TORQUE: 4.9 IN LBS.

5.WIRE STRIP LENGTH: .39in. (10.0mm)

CONTACT FACTORY FOR OPTIONAL COLORS

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DESCRIPTION

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

METRIC

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

INCH

---

APPROVED BY

DATE

molex

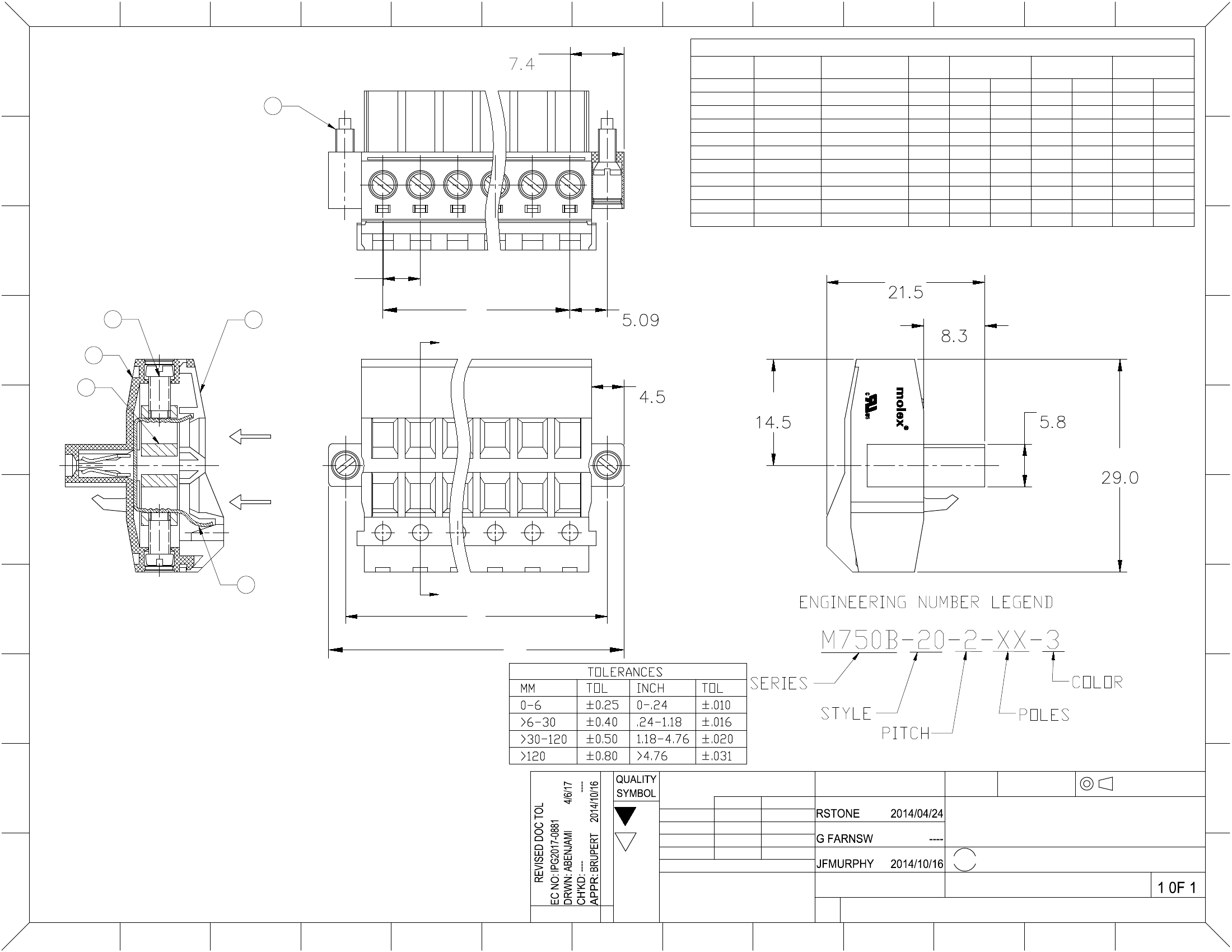

TERMINAL PLUG-HORIZ.

5.08MM, DBL WIRE ENTRY

WITH MOUNTING ENDS

MOLEX INCORPORATED

SHEET NO.

7.DIMS SHOWN ARE FOR REFERENCE ONLY

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-39716-001

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
