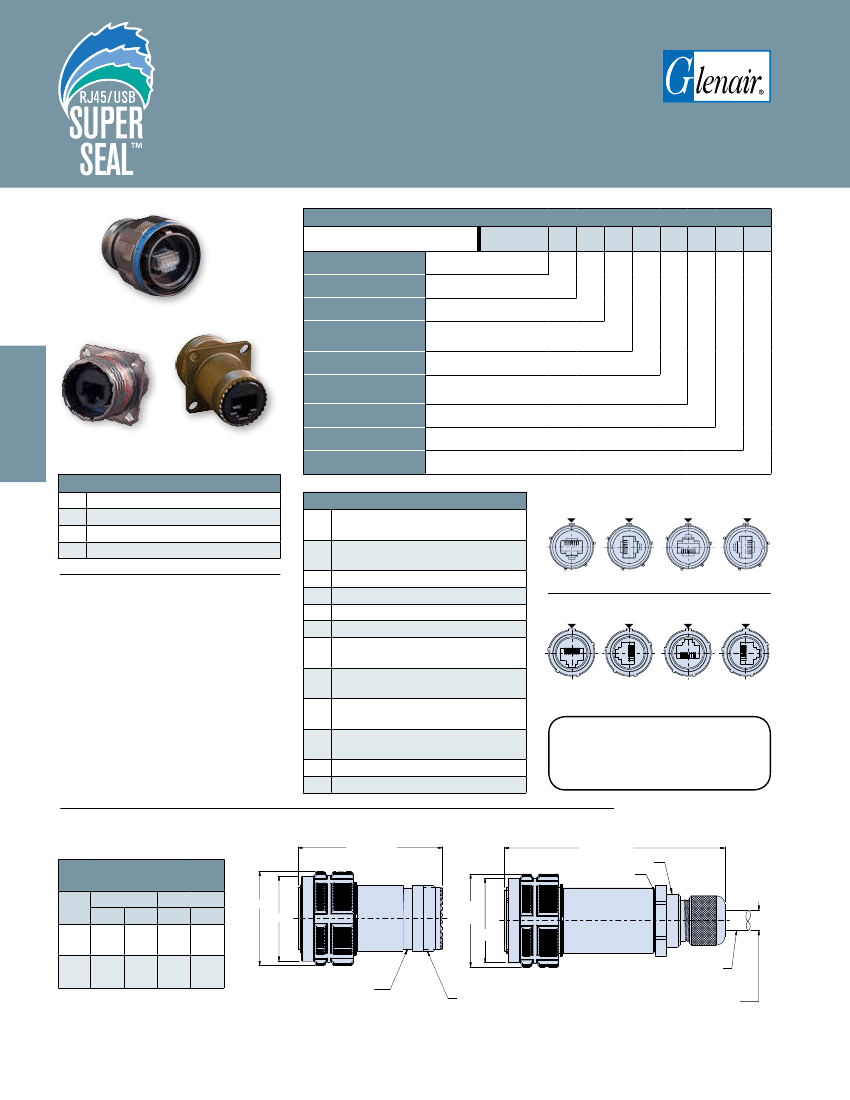

RJ45 CAT 5E ETHERNET
MIL-DTL-38999 Series III Type Connectors
233-300 Coupler with Accessory Threads and RJ45
Plug-to-Jack (plug) or Jack-to-Jack (Receptacle)
How to Order
Sample Part Number
Basic Numberv
Finish
233-300
See Material and Finish table
See Connector Style table
–
= Inline shielded RJ45 insert
G
= Shielded and grounded to shell
2
17
or
19
5H
= Cat 5E
For Cat 6A applications consult factory
233-300
NF
00
G
17
5H
N
1
T
Plug
Front View
Connector Style
1
Insert-to-Shell
Grounding
Shell Size
B
RJ45 Category
Alternate Key Position
1
Per MIL-DTL-38999
A, B, C, D, E, N
=
Normal
Receptacle
Front View
NF
Receptacle
Rear View
RJ45 Orientation
Shrink Boot
1, 2, 3,
or
4
T
= Part No. 770-028 (Omit for None)
Material and Finish
1
Aluminum/Cadmium, Olive Drab
00
01
05
07
Connector Style
1
Wall mount receptacle with
slotted holes
3
Wall mount receptacle with slotted holes
and metal cable gland
3
Inline Receptacle
rear panel mount, jam nut receptacle
RJ45 Orientation Options (Plug Face)
Master Key
ME
Aluminum/Electroless Nickel
MT
Aluminum/Nickel PTFE
ZR
Aluminum/Black Zinc-Nickel
NOTES
1. See Section A for alternate key
positions, panel cutout dimensions
2. G option is inline shielded and grounded
to shell, available for receptacle only
3. Connector style 00 & 01 with slotted
hole is front panel mount only
4. Meets IP67 in unmated condition, IP68
mated
5. For shrink boot see part number 770-028
6. Receptacles are JACK-JACK and plugs are
PLUG-JACK configurations
Code 1
Master Keyway
Code 2
Code 3
Code 4
08
In-line receptacle with metal cable gland
D0
Wall mount receptacle with round holes
Wall mount receptacle with round holes
and metal gland
Wall mount receptacle with metric
CM
clinch nuts
Wall mount receptacle with metric clinch
CG
nuts and metal gland
Wall Mount Receptacle with standard
CS
clinch nuts
G6
plug
D1
G7
plug with metal cable gland
5
RJ45 Orientation Options (Recetpatacle Face)
Code 1
Code2
Code 3
Code 4
All external dimensions, features,
etc. compliant with D38999/20, /24,
&/26. Consult factory for additional
information.
G6 - PLUG WITH INTEGRAL SHRINK BOOT AND G7 - PLUG WITH METAL GLAND
G6 and G7 - plug
Dimensions
Shell
Size
17
19
A Dia Max
in
mm
1.406
1.516
35.71
38.51
B Dia
in
mm
1.276
1.268
32.41
32.21
Ø A Max
ØB
2.150 (54.61)
Max
3.500 (88.9) Max
Metal Gland
O-ring
ØA
Max
ØB
Cable Shown
For Reference
Only
Accommodates cable (outside)
diameter of .275 (7.0) nominal
1.382 35.10
1.374 34.90
Integral Shrink
Boot Groove
C Thread
Shell Size 17:
M25 x 1.0-6g 0.100R
Shell Size 17:
M28 x 1.0-6g 0.100R
B-2
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
RJ45 CAT 5E ETHERNET
MIL-DTL-38999 Series III Type Connectors
233-300 Coupler with Accessory Threads and RJ45
Plug-to-Jack (plug) or Jack-to-Jack (Receptacle)

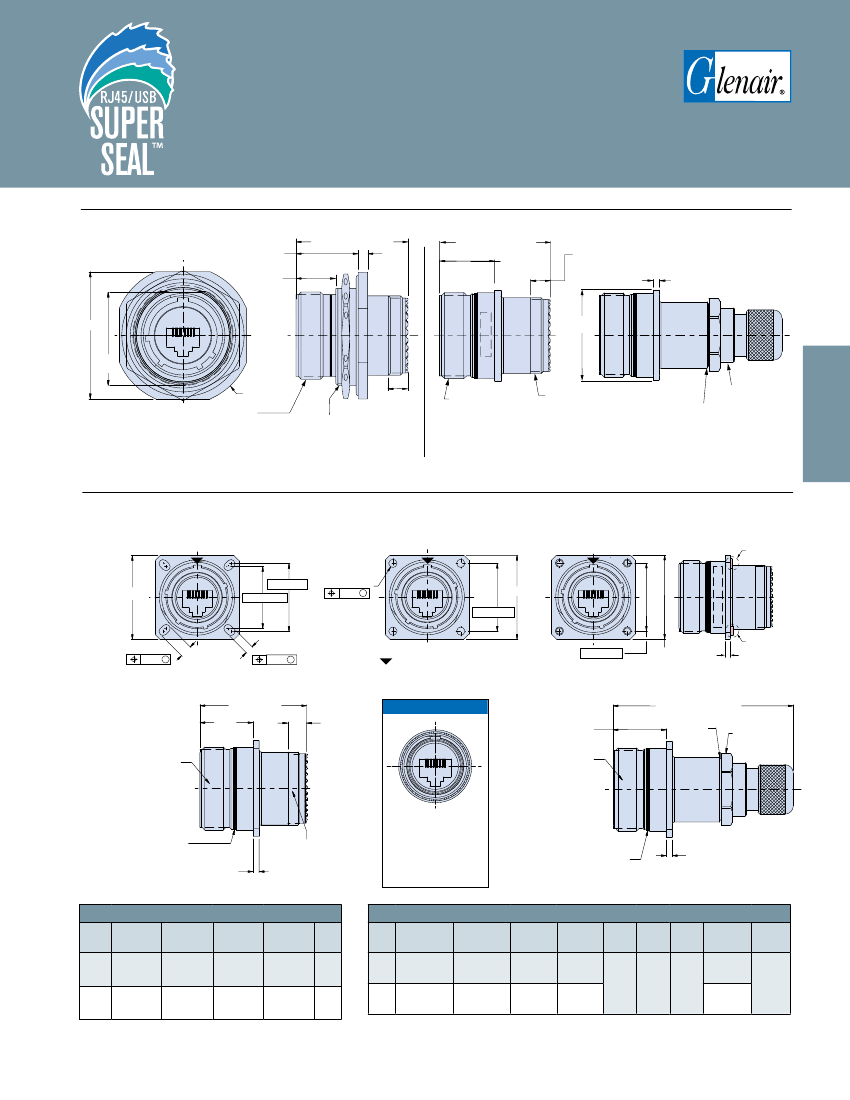

07 - REAR PANEL MOUNT JAM NUT AND 05 OR 08 - INLINE RECEPTACLES
.890 (22.61)
Max
.579
(14.71)
.555
(14.10)
2X M
N
FLAT
øL
A Thread
Shell Size 17:
1.1875-.1P-.3L-TS-2A
Shell Size 19:
1.2500-.1P-.3L-TS-2A
.280
(7.11)
Min. Full
Thd
A Thread
Shell Size 17:
1.1875-.1P-.3L-TS-2A
Shell Size 19:
1.2500-.1P-.3L-TS-2A
R Thread
Shell Size 17:
M25 X 1.0-6g 0.100R
Shell Size 19:
M28 X 1.0-6g 0.100R
Metal Gland
O-Ring
1.600 (40.64) Max
S
1.600 (40.64) Max
.823(20.90)
.768(19.51)
.280 (7.11)
Min. Full Thd
G
ØT
P Thread
Shell Size 17:
M32 X 1.0-6g 0.100R
Shell Size 19:
M35 X 1.0-6g 0.100R
B
07 Jam Nut Receptacle (mating face and side view)
05 Inline with Acceesory Threads and
08 Inline with Metal Gland (side view only)
00, 01, DO, D1, CM AND CG - WALL MOUNT RECEPTACLES WITH ACCESSSORY THREADS OR METAL GLAND
00, 01 - Wall Mount Receptacle
with Slotted Holes (Mating Face)
D0, D1 - Wall Mount Receptacle
with Round Holes (Mating Face)
CM Metric and CS Standard - Wall Mount Receptacles
(Mating Face and Side View)
CM Only
B Sq.
2x C Bsc 4x ØJ Holes
.005
M
2x D Bsc
3
B Sq.
2x C Bsc
4x F
.005
M
4x E
.005
M
= Master Keyway
2x C Bsc
B Sq. (CM)
B1 Sq. (CS)
CS Only
G (CM only)
G1 (CS only)
Note:
See CM & CS style
for side view and style
speci c dimensions.
00, D0, CM - Wall Mount Receptacle
1.600 Max
.823
.768
01, D1, CG - Wall Mount Receptacle with Metal Gland
3.100 (78.74) Max
.823 (20.90)
.768 (19.51)
A Thread
Shell Size 17
1.1875-.1P-.3L-TS-2A
Shell Size 19
1.2500-.1P-.3L-TS-2A
O-ring
Metal Gland
Rear View
.280 Min.
Full Thd
A Thread
Shell Size 17
1.1875-.1P-.3L-TS-2A
Shell Size 19
1.2500-.1P-.3L-TS-2A
Color Band: Red
(Fully Mated Indicator)
G
R Thread
Shell Size 17
M25 x 1.0-6g 0.100R
Shell Size 19
28x 1.0-6g 0.100R
ØT
Max
For all 233-300
plug and receptacle
styles. Position
rotates relative
to Code
(Code 1 shown)
Color Band: Red
(Fully Mated Indicator)
G
Jam Nut and Inline Receptacle Dimensions
Shell
Size
17
19
ØL
M
N
S
Shell
Size
17
19
B Sq
1.323 (33.60)
1.299 (32.99)
1.449 (36.80)
1.425 (36.20)
Wall Mount Receptacle Dimensions
B1 Sq
C Bsc
D Bsc
E
1.437 (34.50)
.136
1.062 (26.97) .969(24.61)
1.397 (35.48)
(3.45)
.120
1.531 (38.89)
1.156 (29.36) 1.062 (26.97) (3.05)
1.491 (37.87)
3
F
.202
(5.13)
.186
(4.72)
G
.098
(2.49)
.083
(2.11)
1.764 (44.81) 1.642 (41.71) 1.191 (30.25)
1.740 (44.20) 1.610 (40.89) 1.181 (30.00)
1.949 (49.50) 1.827 (46.41) 1.316 (33.43)
1.925 (48.90) 1.795 (45.59) 1.306 (33.17)
.122 (3.09) 1.275
.083 (2.11) (32.39)
.153 (3.89) 1.337
.114 (2.90) (33.96)
G1
.122 (3.10)
.083 (.58)
.153 (3.89)
.144 (3.66)
ØJ
Holes
.136
(3.45)
.120
(3.05)
