M80-8282642 datasheet, PDF - EEWORLD Datasheet

M80-8282642: CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

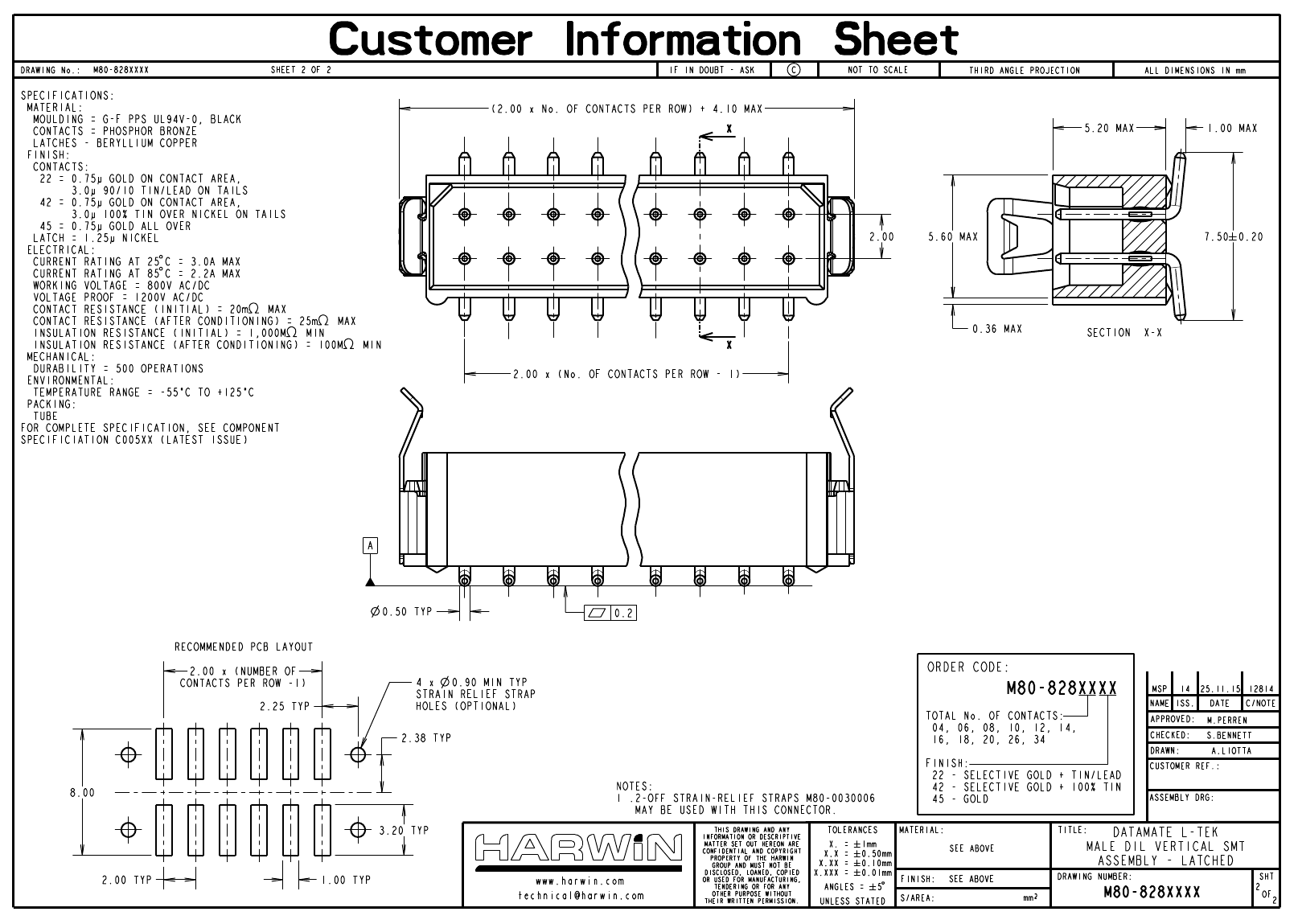

Download Datasheet Parametric Compare View All

M80-8282642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8282642	-	-	View	Buy Now

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	LATCHED
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (118)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-828
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

	M80-8282642	M80-8281822	M80-8281042	M80-8283422
Description		Headers u0026 Wire Housings 9+9 POS DIL SMT MALE VERT LOCKING LATCH	RS-232 Interface IC 1uA 3-5.5V Tcvr w/AutoShutdown	Headers u0026 Wire Housings 17+17 POS VERT MALE LATCHED TIN/LEAD
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	LATCHED	LATCHED	LATCHED	LATCHED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	NOT SPECIFIED	GOLD (30)	NOT SPECIFIED
Contact completed and terminated	TIN (118)	TIN LEAD (118)	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	26	18	10	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Body/casing type	PLUG	PLUG	-	PLUG
Maker	-	Harwin	Harwin	Harwin
ECCN code	-	EAR99	EAR99	EAR99
