Part Number

Search

87264-2253

Description
Headers u0026 Wire Housings 2mm MGrid Rcpt S/E R S/E RA .76AuLF 22Ckt
CategoryThe connector    The connector
File Size249KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87264-2253 Online Shopping

Suppliers Part Number Price MOQ In stock
87264-2253 - - View Buy Now

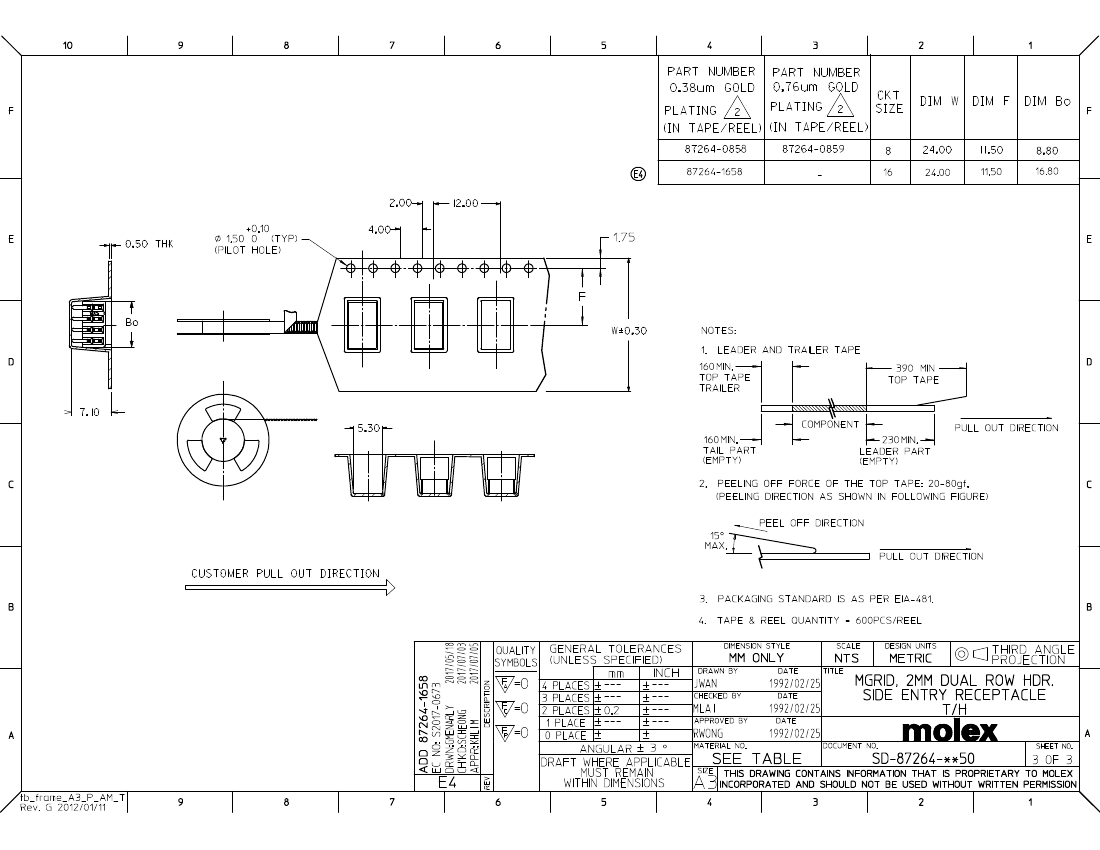

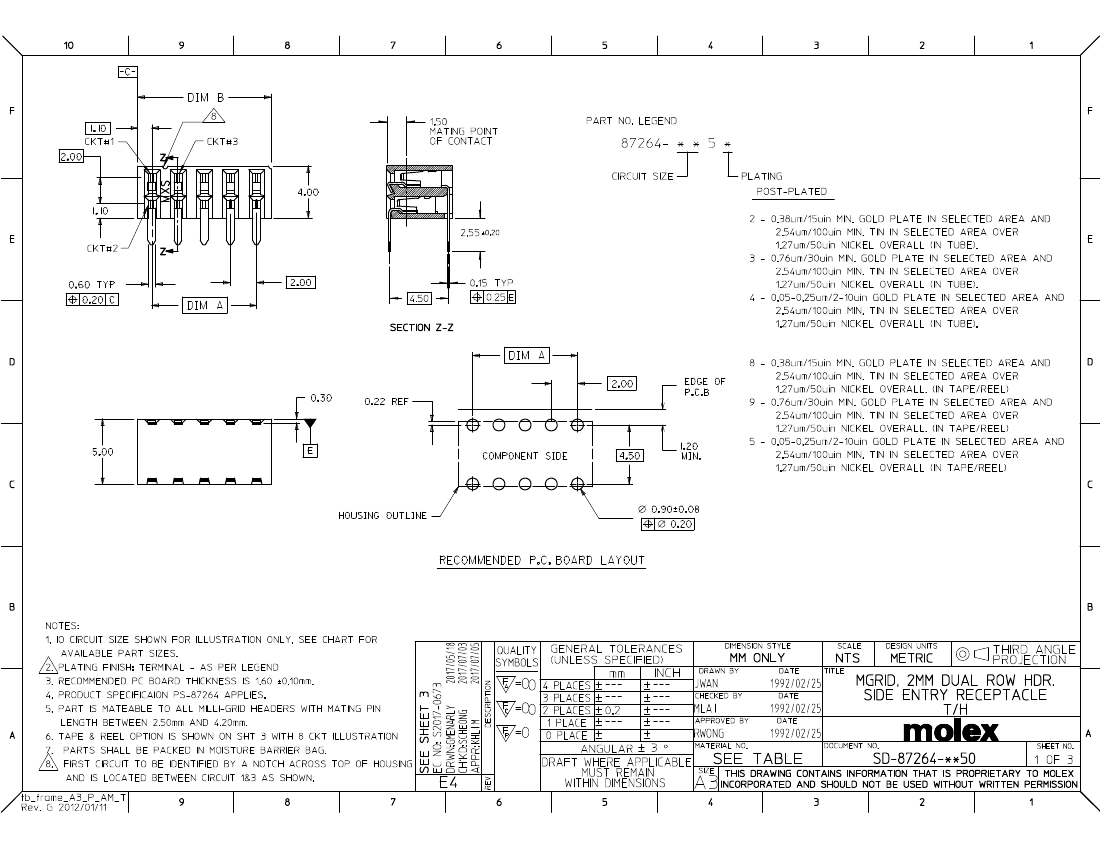

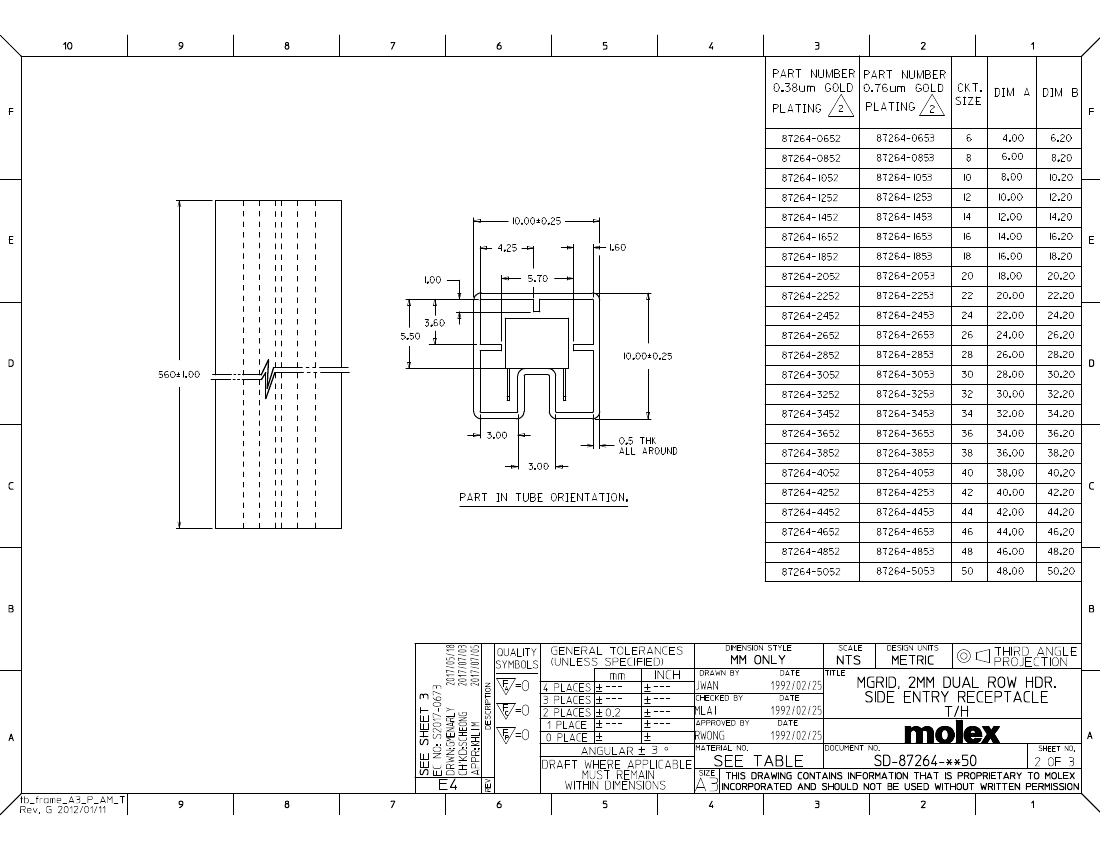

87264-2253 Overview

Headers u0026 Wire Housings 2mm MGrid Rcpt S/E R S/E RA .76AuLF 22Ckt

87264-2253 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresMILLI-GRID
body width0.157 inch
subject depth0.197 inch
body length0.874 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTIN (100) OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number87264
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.4958 mm
Plating thickness30u inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.1 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts22
Base Number Matches1
