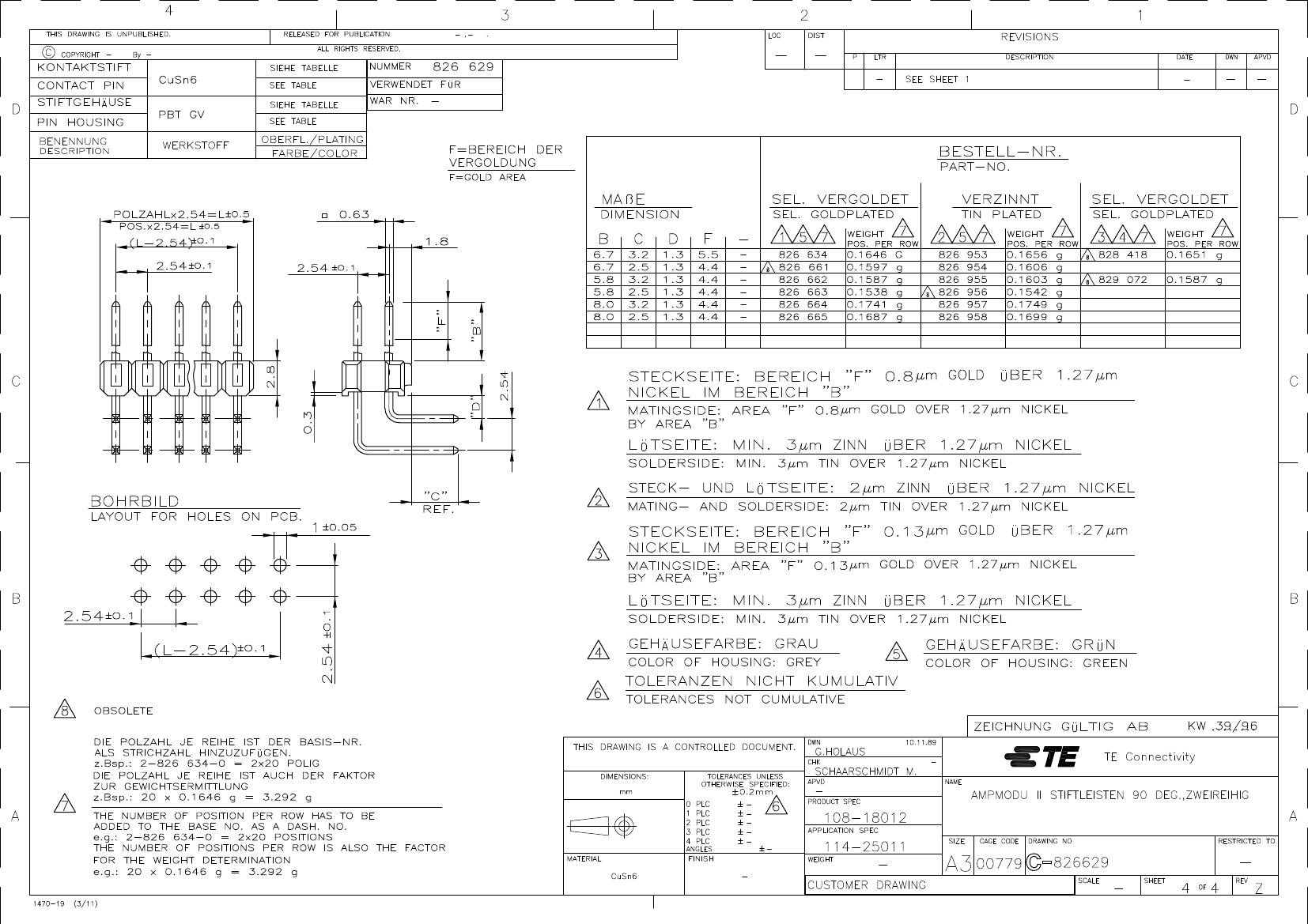

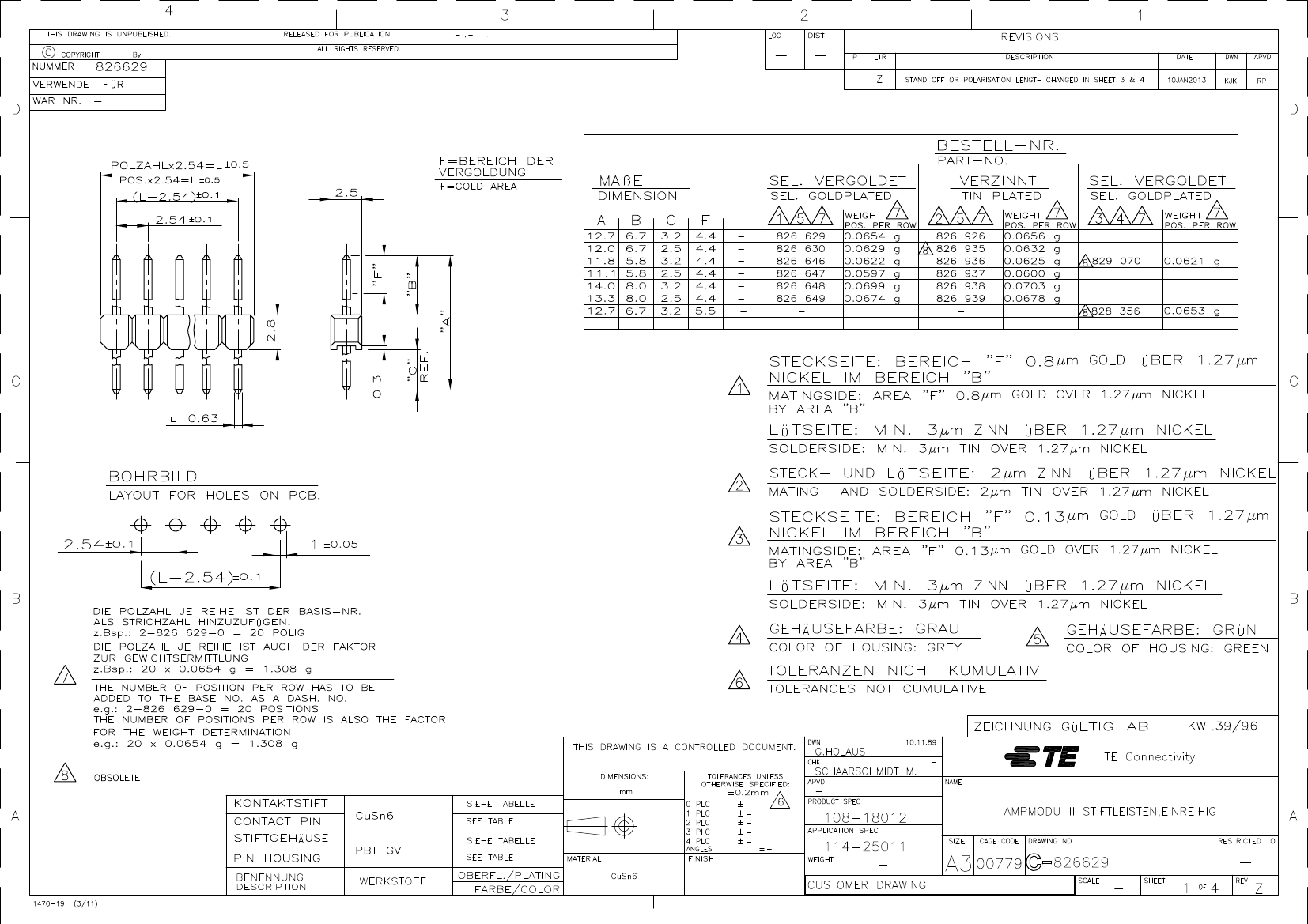

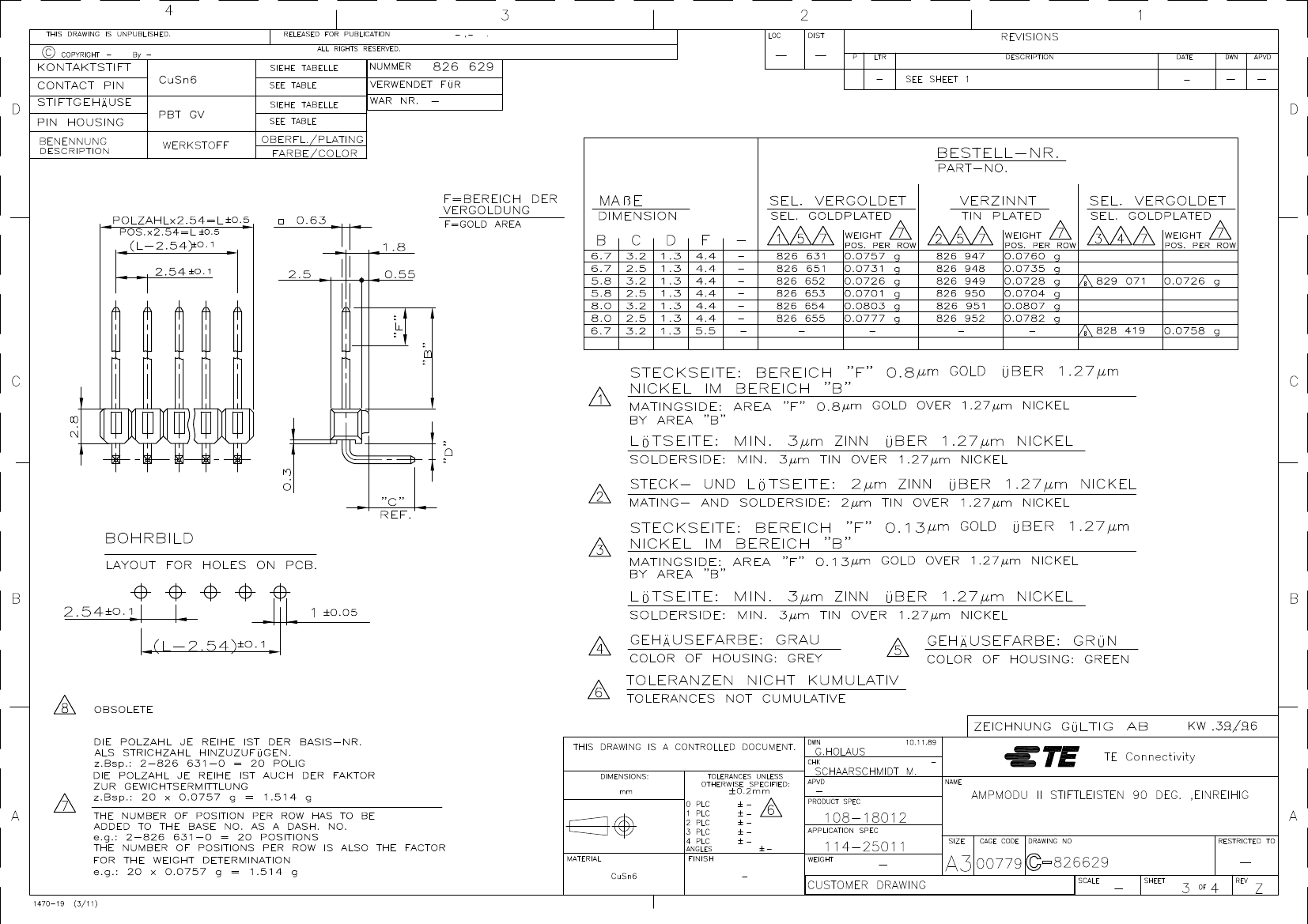

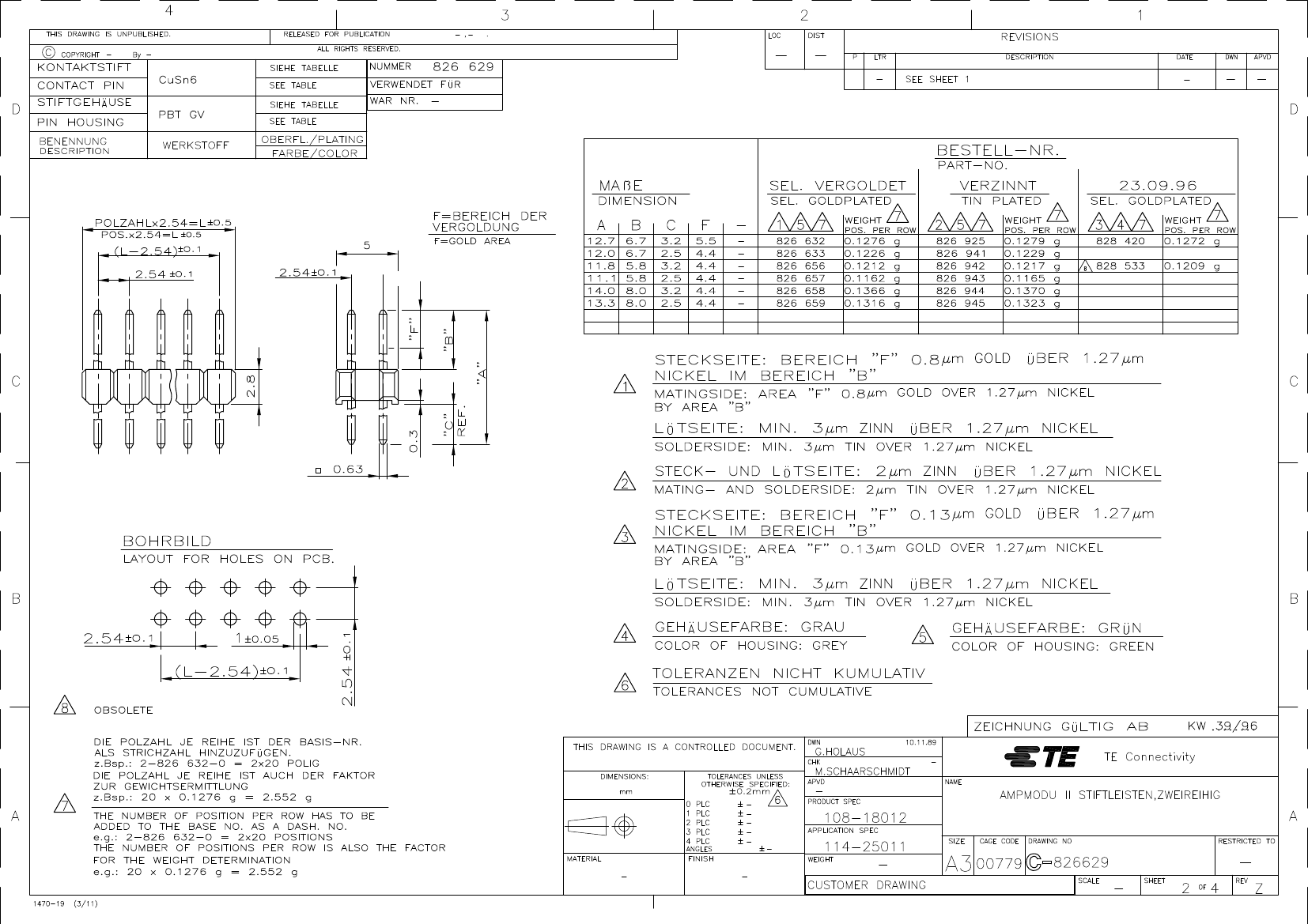

22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | AMPMODU |
| body width | 0.098 inch |
| subject depth | 0.11 inch |
| body length | 2.2 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | GREEN |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 31u inch |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 22 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 2-826629-2 | 826953-7 | 4-826951-0 | 3-826647-2 | 826658-9 | 826936-7 | SG73P2BTTED12R0F | |
|---|---|---|---|---|---|---|---|
| Description | 22 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | CONNECTOR, 14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | 40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER | 32 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 18 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | CONNECTOR, 7 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | Fixed Resistor, Metal Glaze/thick Film, 0.33W, 12ohm, 200V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | unknown | unknown | unknown | compliant | unknown | compliant |
| Other features | AMPMODU | AMPMODU | AMPMODU | AMPMODU | AMPMODU | AMPMODU | - |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contact to complete cooperation | GOLD (30) | TIN OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Contact completed and terminated | Tin (Sn) | TIN | TIN | TIN | - | TIN | - |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | - |
| Contact material | PHOSPHOR BRONZE | BRASS | BRASS | PHOSPHOR BRONZE | NOT SPECIFIED | BRASS | - |
| DIN compliance | NO | NO | NO | NO | NO | NO | - |
| Filter function | NO | NO | NO | NO | NO | NO | - |
| IEC compliance | NO | NO | NO | NO | NO | NO | - |
| JESD-609 code | e3 | e3 | e3 | e3 | - | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO | NO | - |
| Mixed contacts | NO | NO | NO | NO | NO | NO | - |
| Installation method | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT | STRAIGHT | STRAIGHT | - |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | - |
| Number of rows loaded | 1 | 2 | 1 | 1 | 2 | 1 | - |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | - |
| Total number of contacts | 22 | 14 | 40 | 32 | 18 | 7 | - |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | - |
| Base Number Matches | 1 | - | - | 1 | 1 | 1 | - |
