37-92500-12-X: DescriptionD-Sub Micro-D Connectors 50P PCB MINI RIBBON R/A SOCKET BLUE; CategoryThe connector; File Size298KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

37-92500-12-X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	37-92500-12-X	-	-	View	Buy Now

37-92500-12-X Overview

D-Sub Micro-D Connectors 50P PCB MINI RIBBON R/A SOCKET BLUE

37-92500-12-X Parametric

Parameter Name	Attribute value
Product Category	D-Sub Micro-D Connectors
Manufacturer	Kycon
RoHS	No
Gender	Female
Number of Positions	50 Position
Number of Rows	2 Row
Termination Style	Through Hole
Mounting Angle	Vertical
Contact Material	Phosphor Bronze
Contact Plating	Gold
Current Rating	5 A
Shell Material	Steel
Shell Plating	Nickel

Preview

Download Datasheet

View All

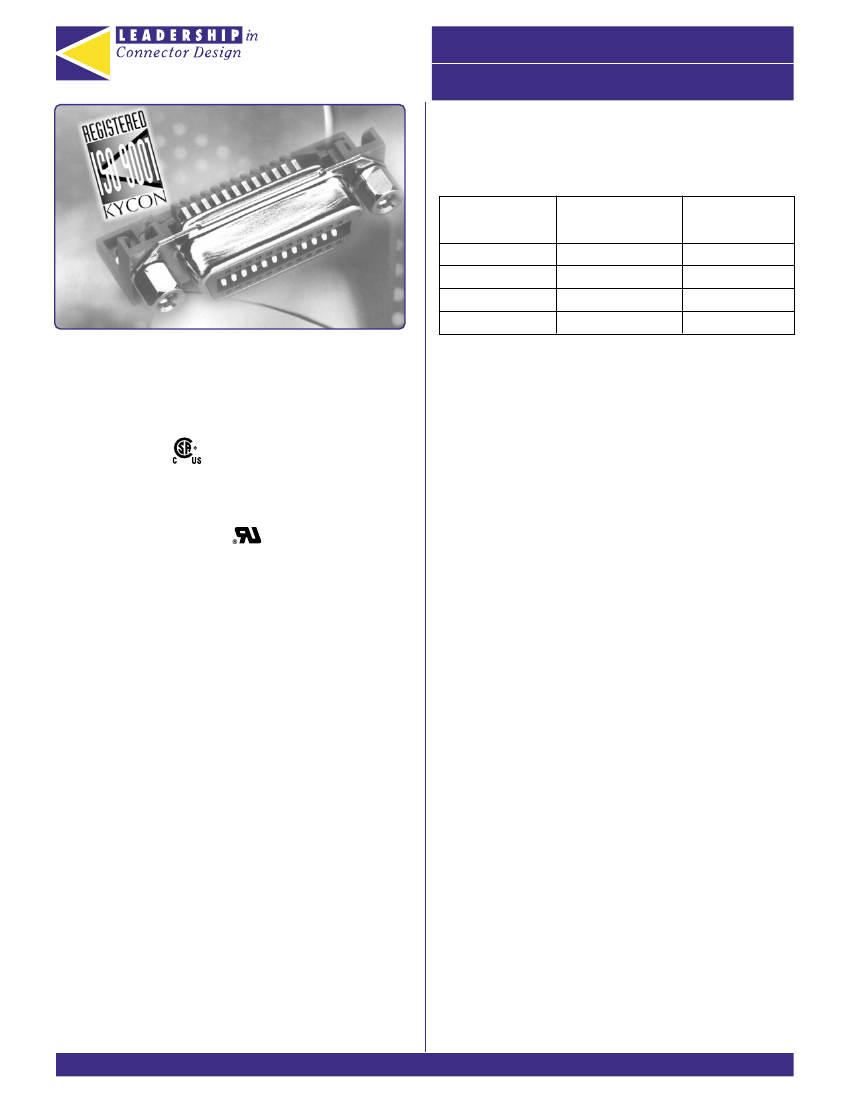

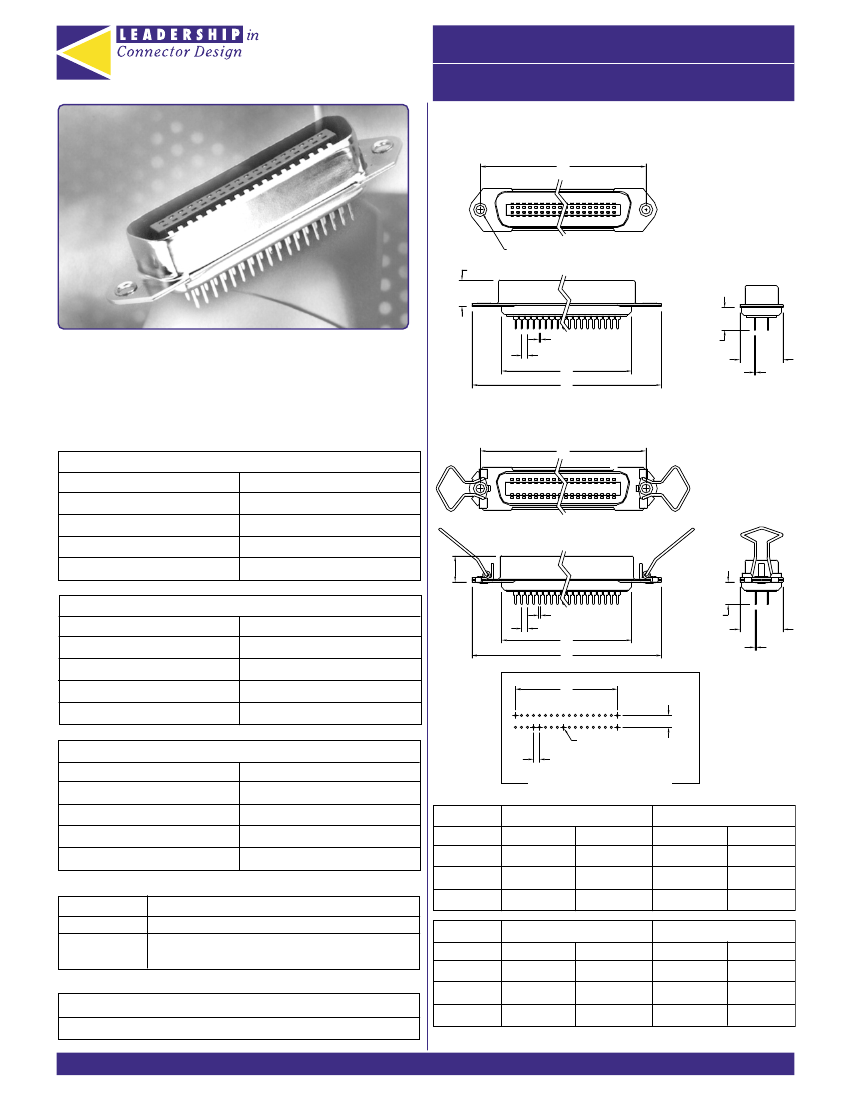

MINIATURE RIBBON CONNECTORS

KYCON

37 Series

Mechanical Characteristics

Insertion and Withdrawal Force

Number of

Contacts

Insertion

Force (kg)

1.4

2.7

3.7

4.6

Withdrawal

Force (kg)

1.0

1.9

2.0

4.3

37 Series

Miniature Ribbon

Connectors

Features

LR78160

Durability

Subjected to 500 Cycles of Insertions and Withdrawals,

After Test, Connectors Meet the Maximum Contact

Resistance Specifications

Electrical Characteristics

Contact Current Rating

5 Amps

Contact Resistance

Voltage Drop, at DC 5 Amps Current,

Shall be 8.5 Millivolts Max

Dielectric Withstanding Voltage

1200 V AC Min

Insulation Resistance

1000 Megohms Min

Temperature Rating

-55°C to + 105°C

• Applications Include Computer Peripherals, Data Processing,

Telecommunications and Industrial Controls

• UL Recognized Material

• Design Meets the Requirements of IEEE-488 and SCSI

Applications

• Plug and Socket Available in 14, 24, 36, and 50 Positions

• Bright Nickel Plated Shells for EMI/RFI Shielding

• D Shaped Connector Mating and Polarization

• CSA/NRTL Certified File No. LR78160

Performance Specifications

Materials and Finish

Shell

Steel Material, Nickel Finish

Insert

PBT Thermoplastic, Blue, 30% Glass

Filled, Self-Extinguishing, 94V-0 Rated

Contact Material

Phosphor Bronze

Contact Finish

Gold Flash Over 0.0001 (0.00254) Nickel

136

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

2002
