Power entry modules without line filter
https://www.schurter.com /PG05
Felcom 64

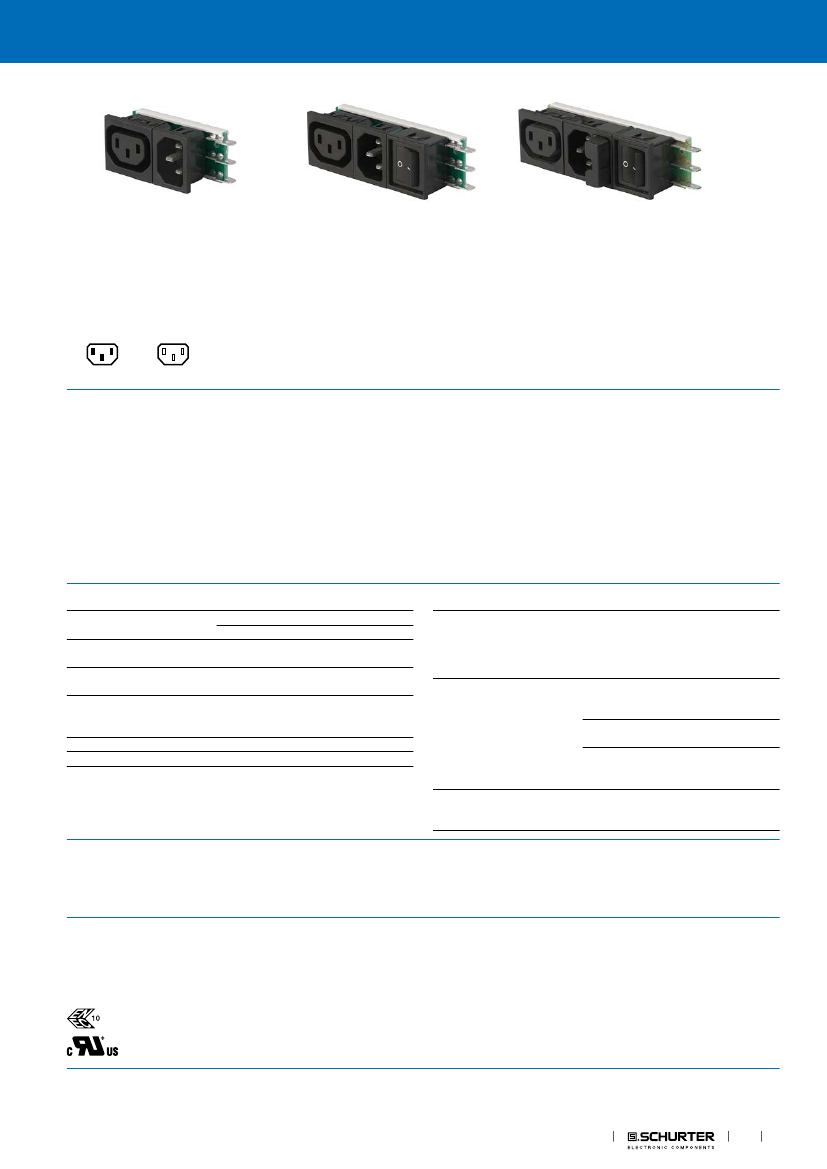

IEC Appliance Inlet C14 with modular extended Components
6421.005X.XX
Appliance inlet
Appliance outlet
6431.005X.XX
Appliance inlet
Switch
Appliance outlet
6432.0X5X.XX
Appliance inlet
Fuseholder
Switch
Appliance outlet
C14
70° C
F
70° C
Approvals and Compliances
Description
- Panel Mount :
Snap-in version , from front side
- 2 - 5 Functions :
Appliance Inlet , Protection class I , Outlet , Line Switch 2-pole , Fu-
seholder for fuse-links 5 x 20 mm 1- or 2-pole , Solder terminals 3.5 x
0.8 mm or quick connect terminals 6.3 x 0.8 mm
Characteristics
-
-
-
-
-
Modular component selection
Individual components soldered on a printed circuit board
Plug removal necessary for fuse-link replacement
Fully insulated from the rear
Suitable for use in equipment according to IEC/UL 60950
Other versions on request
References
Weblinks
- Line switch with other rocker marking
Alternative: version with line filter
Felcom 54
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Allowable Operation Tempe-
rature
Insulation cover
Terminal
10 A / 250 VAC; 50 Hz
10 A / 125/250 VAC; 60 Hz
-25 °C to 70 °C
Suitable for appliances with protection
class I acc. to IEC 61140
Solder terminals 3.5 x 0.8 mm or quick
connect terminals 6.3 x 0.8 mm , tin-
plated
Snap-in: 1/1.2/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1
and F acc. to
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Rocker switch 2-pole, non-illuminated,
IEC 61058-1
Technical Details
Fuseholder
Panel Thickness S
Material: Housing
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Switch
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: Felcom
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40028094
UL File Number: E103791, E96454
Connectors
1
Felcom 64
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG

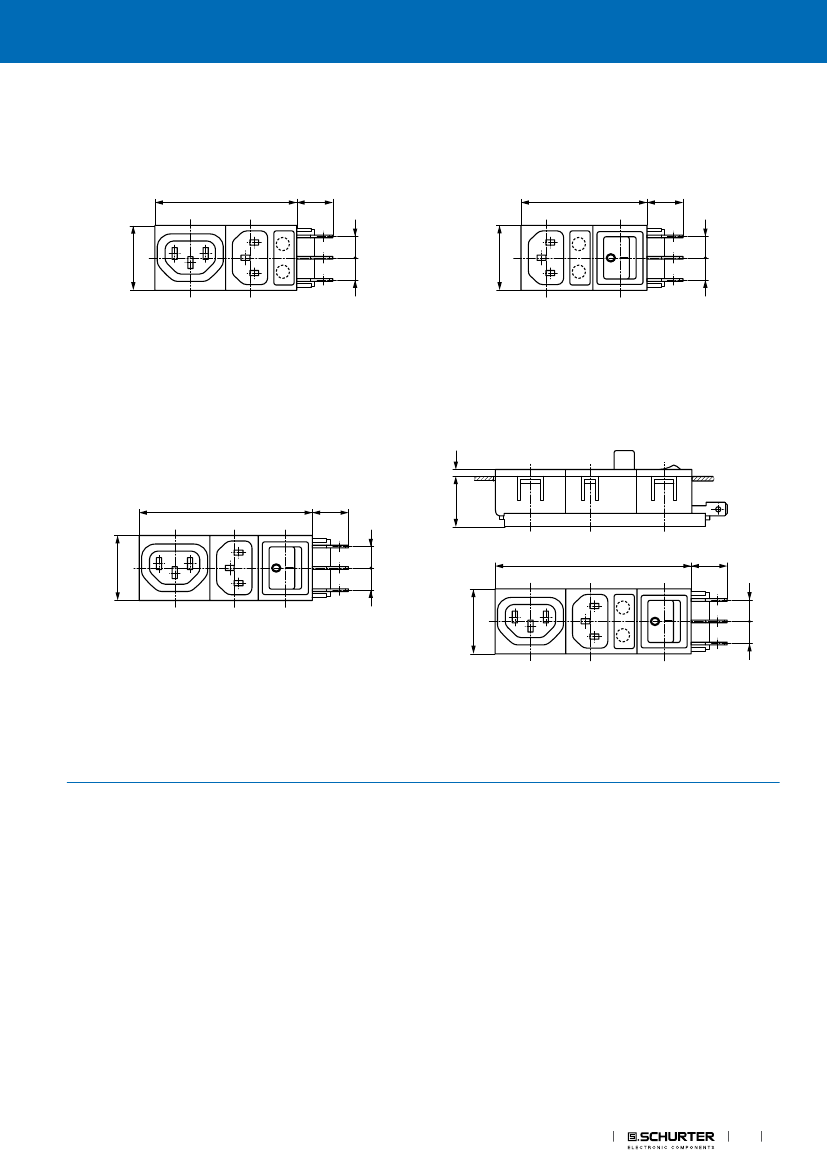

Dimensions [mm]
55.0 1)
A
47.9 1)
A
+0.30
0
+0.30
0
10
30
10
30
Variants 6421.005X.XX
Mounting hole: 53.6
+0,2
x 27.6
+0,2
A: Quick-connect terminal 6.3x0.8 mm: 17.1 mm
A: Solder terminal 3.5x0.8 mm: 12.3 mm
Variants 6422.005X.XX
Mounting hole: 46.7
+0,2
x 27.6
+0,2
A: Quick-connect terminal 6.3x0.8 mm: 18.1 mm
A: Solder terminal 3.5x0.8 mm: 13.3 mm
2
Connectors
10
10
Power entry modules without line filter
https://www.schurter.com /PG05
Felcom 64
65.5 1)
A
58.4 1)
A
+0.30
0
+0.30
0
10
30
10
30
Variants 6423.0X5X.XX
Mounting hole: 65.5
+0,2
x 27.6
+0,2
A: Quick-connect terminal 6.3x0.8 mm: 18.15 mm
A: Solder terminal 3.5x0.8 mm: 13.35 mm
Variants 6424.0X5X.XX
Mounting hole: 57
+0,2
x 27.6
+0,2
A: Quick-connect terminal 6.3x0.8 mm: 18.1 mm
A: Solder terminal 3.5x0.8 mm: 13.3 mm
80.1
A
23
1)
+0.50
0
3
±0.20
+0.30
0
90.6 1)
10
10
A
30
10
+0.30
0
10
30
Variants 6431.005X.XX
Mounting hole: 80.1
0/+0.2
x 27.6
0/+0.2
A: Quick-connect terminal 6.3x0.8 mm: 18.1 mm
A: Solder terminal 3.5x0.8 mm: 13.3 mm
1) In an uninstalled state the total length of the combinations may be slightly bigger
than the nominal dimension. However, they can always be installed in the specified
mounting cutouts.
Variants 6432.0X5X.XX
Mounting hole: 90.6
+0,2
x 27.6
+0,2
A: Quick-connect terminal 6.3x0.8 mm: 18.1 mm
A: Solder terminal 3.5x0.8 mm: 13.3 mm
Connectors
10
10
3
Felcom 64

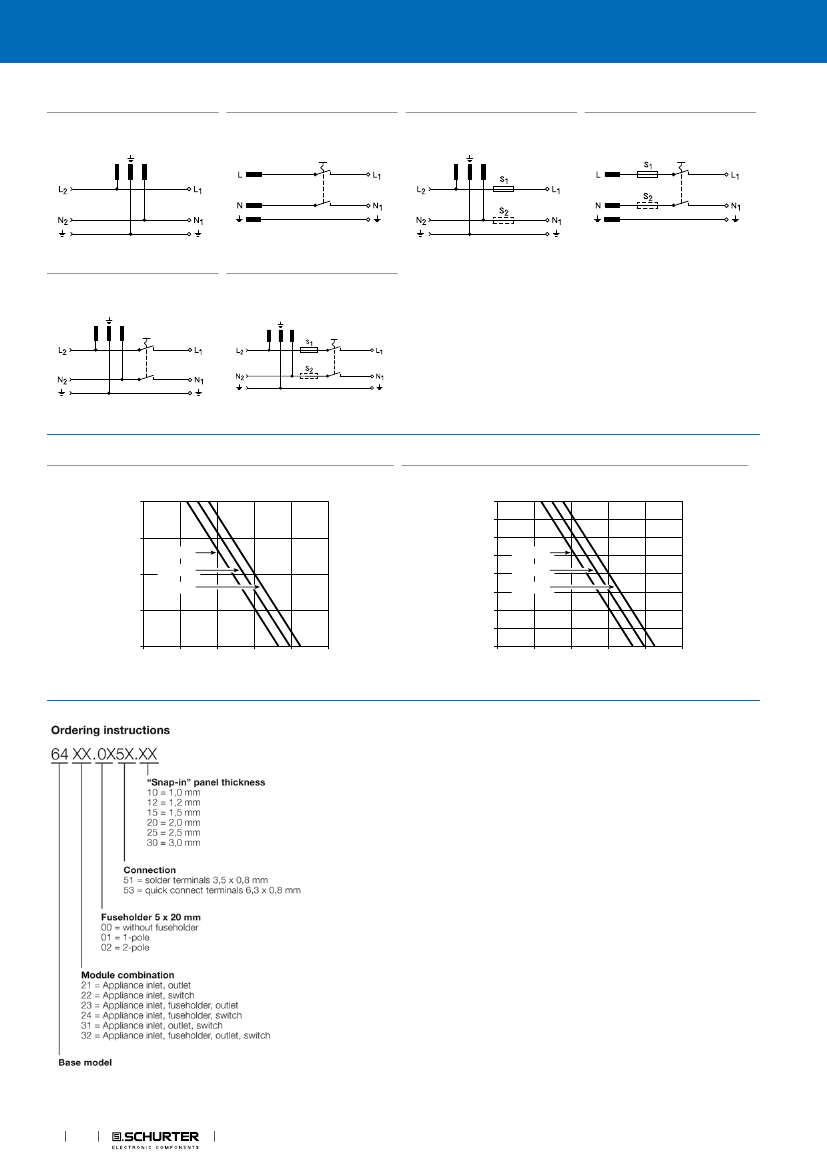

Diagrams
6421
L
LINE
Power entry modules without line filter
https://www.schurter.com /PG05
6422
N
1)
2)
6423
L
LINE
6424
N
1)
2)
1)
2)
1)
2)
1) Load 2
2) Load 1
1) Line
2) Load 1
1) Load 2
2) Load 1
1) Line
2) Load 1
6431
L
LINE
6432
N
L
LINE
N
1)
2)
1)
2)
1) Load 2
2) Load 1
1) Load 2
2) Load 1
Derating Curves
1-pole
Admissible power acceptance in Watt
2.0
2-pole
Admissible power acceptance in Watt
per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = << I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
Felcom 64
All Variants
Type
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Felcom 64
Connectors
C14
C14
C14
C14
C14
C14
C14
C14
