Inductors
For General Applications
SMD
FEATURES
• The NL series are available in 5 form factors ranging from 2016
to 5650.
• Utilizing a miniaturized winding structure, these products provide
high Q characteristics.
• Inductance tolerance is ±5 percent.
APPLICATIONS
Personal computers, hard disk drives, and other electronic equip-
ment.
SPECIFICATIONS
Operating temperature range –20 to +85°C
Storage temperature range –40 to +85°C [Unit of products]
NL Series NL3225 Type
FLUX AND CLEANING
Rosin-based flux is recommended.
Cleaning Conditions
Solvent
Time
Chlorine-based solvent
(Do not use acid or alkali solvents.)
2min max.
PRODUCT IDENTIFICATION
NL 201614
(1)
(2)
(1)Series name
(2)Dimensions L×W×T
201614
252018
322522
453232
565050
2.1×1.6×1.4mm
2.5×2.0×1.8mm
3.2×2.5×2.2mm
4.5×3.2×3.2mm
5.6×5.0×5.0mm
T- 2 R 2 J
(3) (4) (5)
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERING
10s max.
230°C
200°C
150°C
100°C
Preheating: 120s
Time (s)
Natural
cooling
30s max.
(3)Packaging style
T
Taping (reel)
(4)Inductance value
1R0
330
1µH
33µH
FLOW SOLDERING
10s max.
260°C
Natural
cooling
(5)Inductance tolerance
J
K
±5%
±10%
150°C
100°C
Preheating: 120s
Time (s)
PACKAGING STYLE AND QUANTITIES
Packaging style
Taping
Type
NL201614T
NL252018T
NL322522T
NL453232T
NL565050T
Quantity
2000 pieces/reel
2000 pieces/reel
2000 pieces/reel
500 pieces/reel
400 pieces/reel
IRON SOLDERING
Perform soldering at 250°C on 30W max. within 5 seconds.
VAPOR-PHASING
10s max.
220°C
215°C
150°C
100°C
Preheating: 120s
Time (s)
Natural
cooling
30s max.
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
Inductors
For General Applications
SMD
NL Series NL3225 Type
SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN
470J
3.2±0.2
2.2±0.2
0.5
Terminal
electrode
(0.4)
2.5±0.2
2
1
1.9±0.1 Weight: 50mg
2
1
Inductor
Pattern
Dimensions in mm
ELECTRICAL CHARACTERISTICS
Inductance
(µH)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
∗
Inductance
tolerance
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±10, ±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
15
17
19
21
23
23
25
25
26
26
27
27
28
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
Test frequency
L, Q (MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
Self-resonant
frequency
(MHz)min.
2500
2300
2100
1900
1700
1500
1400
1300
1200
1100
1000
900
700
500
450
400
350
320
300
250
220
180
160
140
120
100
85
80
75
70
60
55
50
45
40
35
30
20
DC resistance
(Ω)max.
0.13
0.14
0.16
0.18
0.2
0.22
0.24
0.27
0.3
0.33
0.36
0.4
0.44
0.22
0.25
0.28
0.32
0.36
0.4
0.45
0.5
0.55
0.6
0.65
0.7
0.75
0.85
0.9
1
1.1
1.2
1.3
1.5
1.6
1.8
2
2.1
2.5
Rated
current
(mA)max.
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
400
390
370
350
320
290
260
250
220
200
180
170
150
140
Part No.
NL322522T-010X
∗
NL322522T-012X
NL322522T-015X
NL322522T-018X
NL322522T-022X
NL322522T-027X
NL322522T-033X
NL322522T-039X
NL322522T-047X
NL322522T-056X
NL322522T-068X
NL322522T-082X
NL322522T-R10X
NL322522T-R12X
NL322522T-R15X
NL322522T-R18X
NL322522T-R22X
NL322522T-R27X
NL322522T-R33X
NL322522T-R39X
NL322522T-R47X
NL322522T-R56X
NL322522T-R68X
NL322522T-R82X
NL322522T-1R0J
NL322522T-1R2J
NL322522T-1R5J
NL322522T-1R8J
NL322522T-2R2J
NL322522T-2R7J
NL322522T-3R3J
NL322522T-3R9J
NL322522T-4R7J
NL322522T-5R6J
NL322522T-6R8J
NL322522T-8R2J
NL322522T-100J
NL322522T-120J
X: Please specify the inductance tolerance, K(±10%) or J(±5%)
• Inductance tolerance is only standard.
• Test equipment L, Q: YHP4194A IMPEDANCE ANALYZER (16085A+16093B+TDK TF-1) [L
SRF: HP8753C NETWORK ANALYZER
Rdc: MATSUSHITA VP-2941A DIGITAL MILLIOHM METER
0.12µH]
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
Inductors
For General Applications
SMD
ELECTRICAL CHARACTERISTICS
Inductance
(µH)
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Inductance
tolerance
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Q
min.
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
20
20
Test frequency
L, Q (MHz)
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
NL Series NL3225 Type
Self-resonant
frequency
(MHz)min.
20
20
20
20
17
16
15
13
12
11
10
10
8
7
7
6
5
5
4
DC resistance
(Ω)max.
2.8
3.3
3.7
5
5.6
6.4
7
8
9
10
10
11
15
17
21
28
34
42
40
0.12µH]
Rated
current
(mA)max.
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
45
40
35
25
Part No.
NL322522T-150J
NL322522T-180J
NL322522T-220J
NL322522T-270J
NL322522T-330J
NL322522T-390J
NL322522T-470J
NL322522T-560J
NL322522T-680J
NL322522T-820J
NL322522T-101J
NL322522T-121J
NL322522T-151J
NL322522T-181J
NL322522T-221J
NL322522T-271J
NL322522T-331J
NL322522T-391J
NL322522T-471J
• Inductance tolerance is only standard.
• Test equipment L, Q: YHP4194A IMPEDANCE ANALYZER (16085A+16093B+TDK TF-1) [L
SRF: HP8753C NETWORK ANALYZER
Rdc: MATSUSHITA VP-2941A DIGITAL MILLIOHM METER
TYPICAL ELECTRICAL CHARACTERISTICS
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
INDUCTANCE CHANGE vs. DC
SUPERPOSITION CHARACTERISTICS
1000
500
Universal
bridge
1000
Test circuit
DC
1
Test equipment:
RF IMPEDANCE
ANALYZER 4191A, YHP
4194A IMPEDANCE/GAIN-PHASE
1000 ANALYZER
500
220µH
100µH
L=5H C=20000µF
A
Specimen
YHP model-4255A
or equivalent
0.5
220µH
100µH
82µH
100
Inductance (
µH
)
100
Inductance (
µH
)
50
Inductance (
µH
)
50
0.1
0.1µH
0.068µH
47µH
18µH
12µH
10
8.2µH
5
0.05
0.047µH
0.033µH
0.022µH
0.015µH
10
5
10µH
1
0.01
0.01µH
0.5
0.2
1µH
1
0.5
0.1
0.5
1
5
Frequency (MHz)
10
40
1.5µH
0.05
0.5 1
5
10
50 100
Frequency (MHz)
500 1000
5
10
50
100
DC current (mA)
500
Specifications which provide more details for the proper and safe use of the described product are available upon request.
All specifications are subject to change without notice.
Inductors
For General Applications
SMD

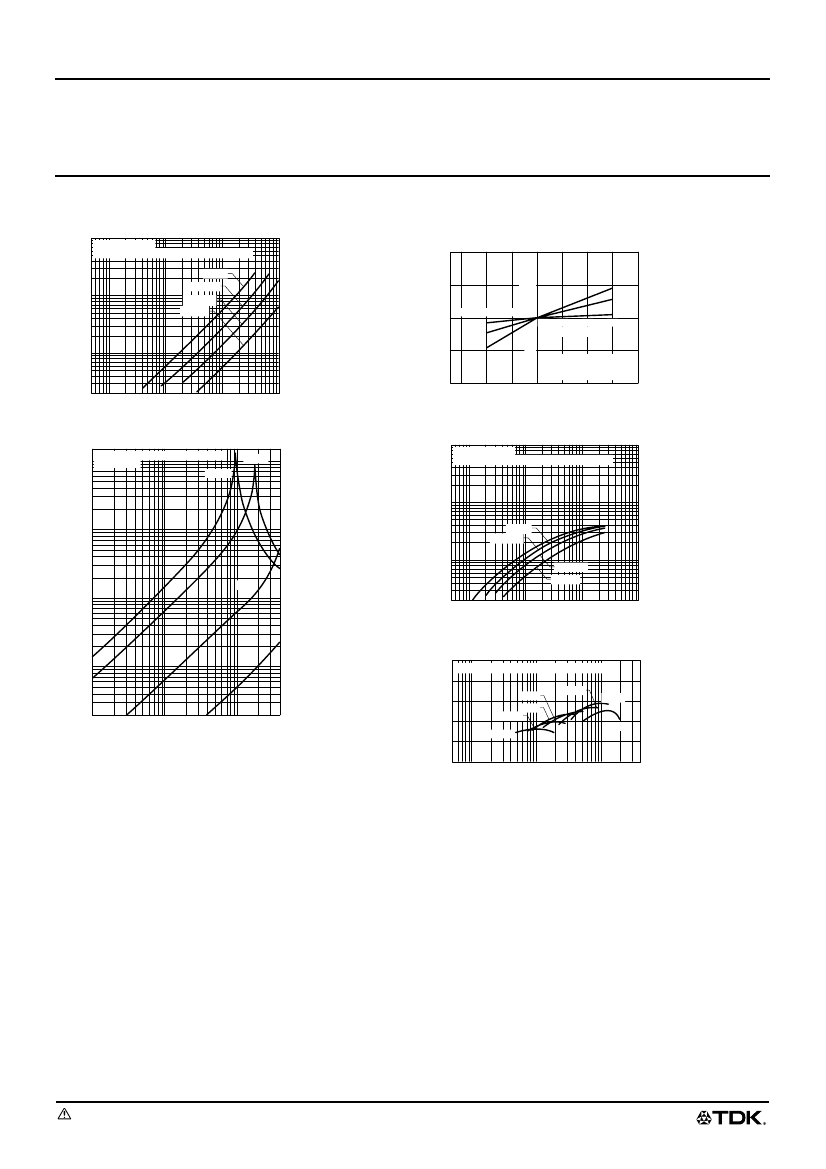

TYPICAL ELECTRICAL CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
1000
Test equipment:
500 RF IMPEDANCE ANALYZER 4191A, YHP
0.1µH
0.047µH
100
50
0.022µH
0.01µH
NL Series NL3225 Type
INDUCTANCE CHANGE vs. TEMPERATURE
CHARACTERISTICS
∆L
/L
20°C
(%)
5
Impedance (
Ω
)
8.2µH
33µH
100µH
80
20 40
60
Temperature(°C)
–40 –20
100µH
3.3µH
8.2µH
0
10
5
–5
Test equipment:
LCR model-4275A, YHP
at 10kHz 1Vrms
0.5 1
5
10
50 100
Frequency (MHz)
500 1000
Q vs. FREQUENCY CHARACTERISTICS
1000
4194A IMPEDANCE/GAIN-PHASE
100k ANALYZER
220µH
50k
100µH
Test equipment:
500 RF IMPEDANCE ANALYZER 4191A, YHP
100
Q
50
0.1µH
0.047µH
10
5
10µH
1k
0.5 1
500
5
10
50 100
Frequency (MHz)
500 1000
10k
5k
Impedance (
Ω
)
0.022µH
0.01µH
100
50
1µH
100
80
60
Test equipment:Q meter model-4343B, YHP
33µH
68µH
100µH
220µH
10µH
4.7µH
2.2µH
0.1
0.5
1
5
Frequency (MHz)
10
40
Q
40
20
0
0.05 0.1
0.5 1
5
Frequency (MHz)
10
511_NL3225
980330
