Harness Sectioning Connectors
Panel-through connectors
Sicma

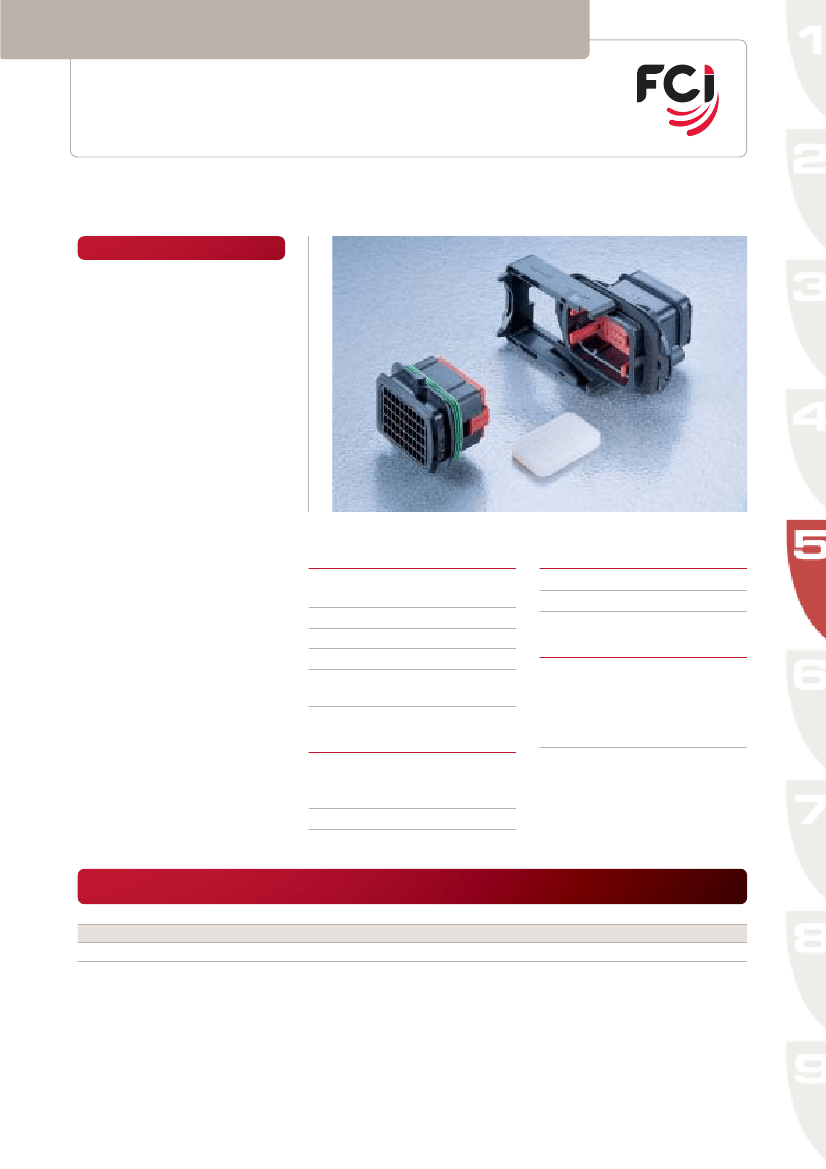

50 way panel-through system for 1.5 mm terminals
Features
•
High density connector using
•
•
•
1.5 mm terminals
Splashproof connector when
equipped with a rubber boot
Female housing fitted with a
silicone interfacial seal
Male housing equipped with a panel
seal and two integrated harpoons
for easy pre-locking on panel
Pre-assembled front grids support
blade terminals guiding and mating
Terminal position assurance (T.P.A.)
Locking cam
Particularly suitable for door
connection
Sealed version available with rear
mat-seal
•
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +125°C
Tooling
•
T.P.A. removal tool:
•
Terminal removal tool:
T25400
T25300
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
> 80 N
< 10 N
< 90 N
Connector compatibility
•
Usable terminals:
-
-
-
-
Sicma-2
Sicma-2
Sicma-3
Sicma-3
1.5
1.5
1.5
1.5
mm
mm
mm
mm
female terminals
male terminals
female terminals
male terminals
•
Sealing protection:
IP 64
when equipped with a rubber boot
Construction
•
Housing material:
- PBT for male & female housings
- PBT for locking cam
•
Interfacial seal:
Silicone
Part Numbers
DTB 5000 FH
DTB 5000 MH
DTB 5000 ST
No. of
position
50
50
Terminal size
1.5 mm
1.5 x 0.8 mm
Type
Female housing
Male housing
Locking cam
Colour
Black
Black
Black
5.40
Harness Sectioning Connectors
Panel-through connectors
Sicma
50 way panel-through system for 1.5 mm terminals

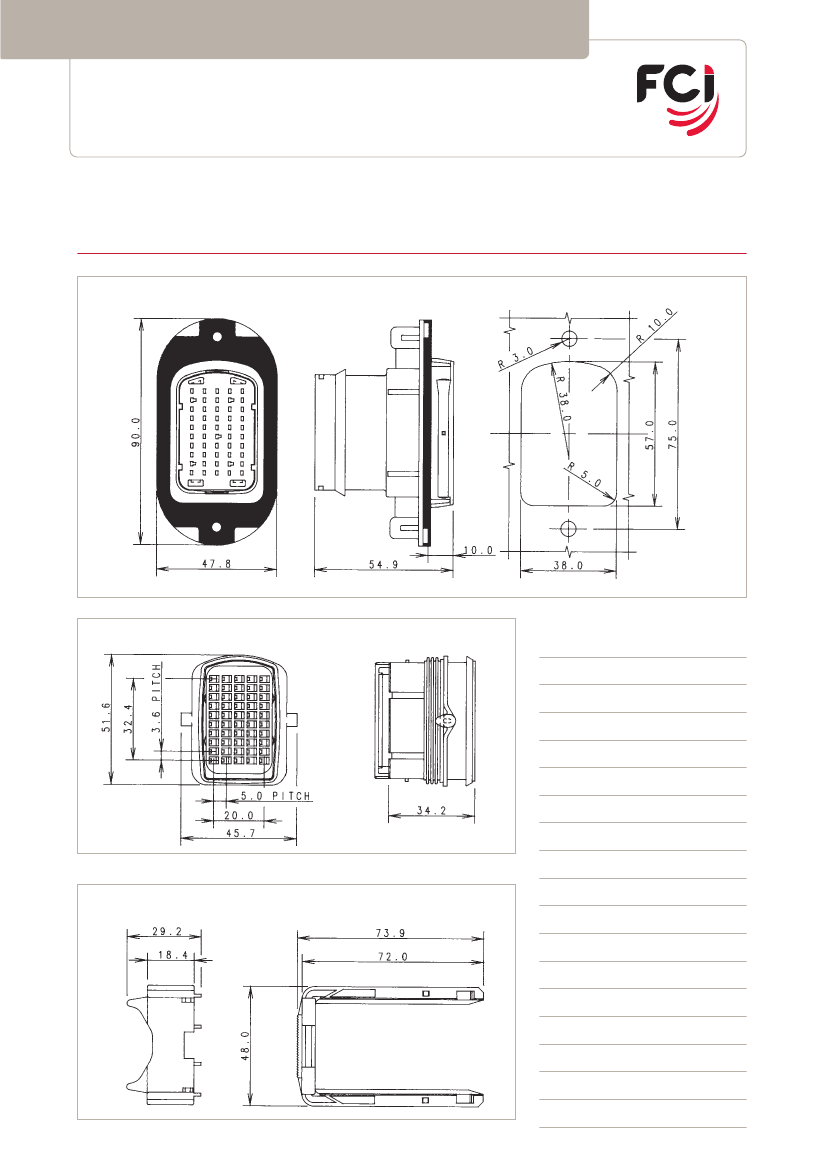

Dimensional characteristics
Male housing
Female housing
Notes:
Locking cam
5.41
