1. Add suffix “-TR” to the model for tape and reel packaging.
2. When measured at a current of less than 100 mA/1 kHz
3. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
SOLDERABILITY
parameter
reflow soldering
260
250
240
217
180
150
120
conditions/description
see reflow profile
min
245
typ
250
max
255
units
°C
60
50
°C
60
Time (second)
70
120
140
180
240
250
300
340
360
380
420
430
480
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
UJ2-MIBH-4-MSMT
│
DESCRIPTION:
USB JACK
date
08/08/2016│
page
2 of 4
MECHANICAL DRAWING
units: mm
tolerance:
X.X ±0.2 mm
X.XX ±0.1 mm
PCB layout tolerance:
±0.05 mm
MATERIAL
contact terminals
shield
insulator
copper alloy
stainless steel
LCP (black)
PLATING
contact: 30 µ” gold over
nickel
solder: 30 µ” gold over
nickel
nickel
Recommended PCB Layout
Top View
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
UJ2-MIBH-4-MSMT
│
DESCRIPTION:
USB JACK
date
08/08/2016│
page
3 of 4

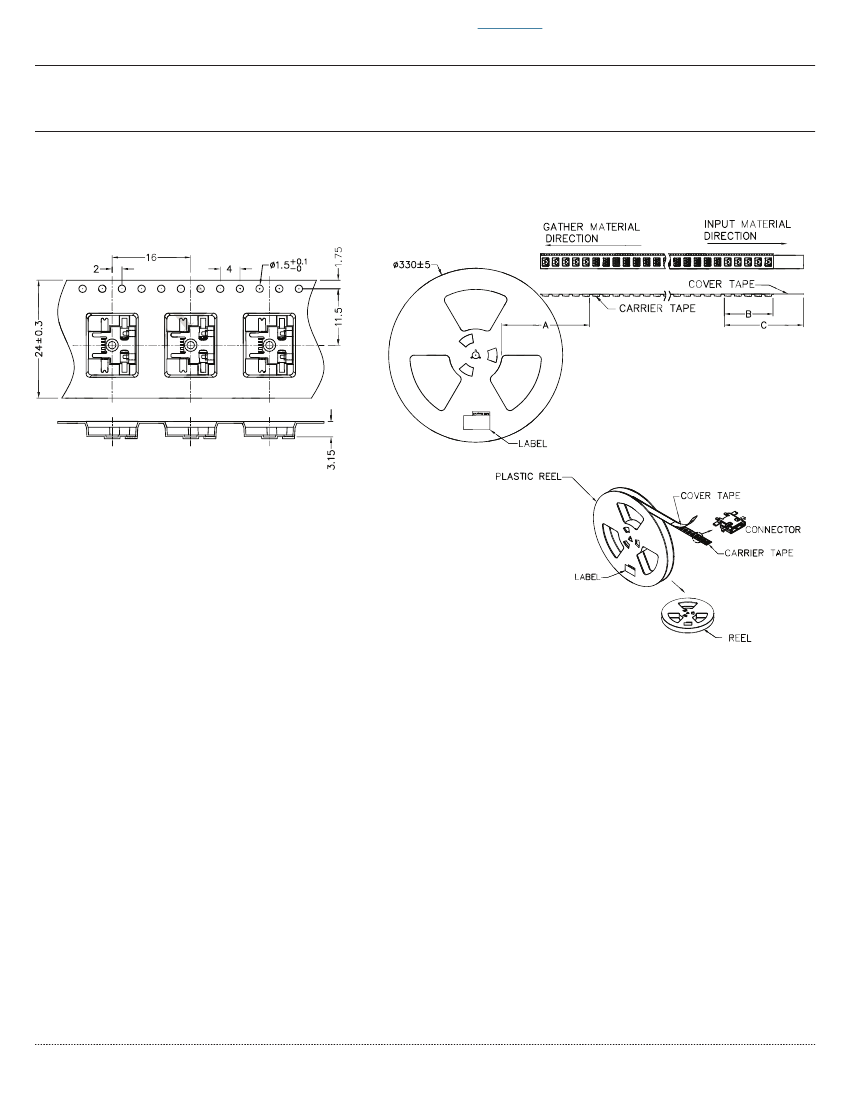

PACKAGING
units: mm
Reel Size: Ø330 mm
Reel QTY: 3,000 pcs per reel
A: Empty 160 mm min.
B: Empty 100 mm min.
C: Cover 400 mm min.
cui.com
For more information, please visit the
product page.
CUI Inc
│
MODEL:
UJ2-MIBH-4-MSMT
│
DESCRIPTION:
USB JACK
date
08/08/2016│
page
4 of 4
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
08/08/2016
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
techsupport@cui.com
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a
life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
