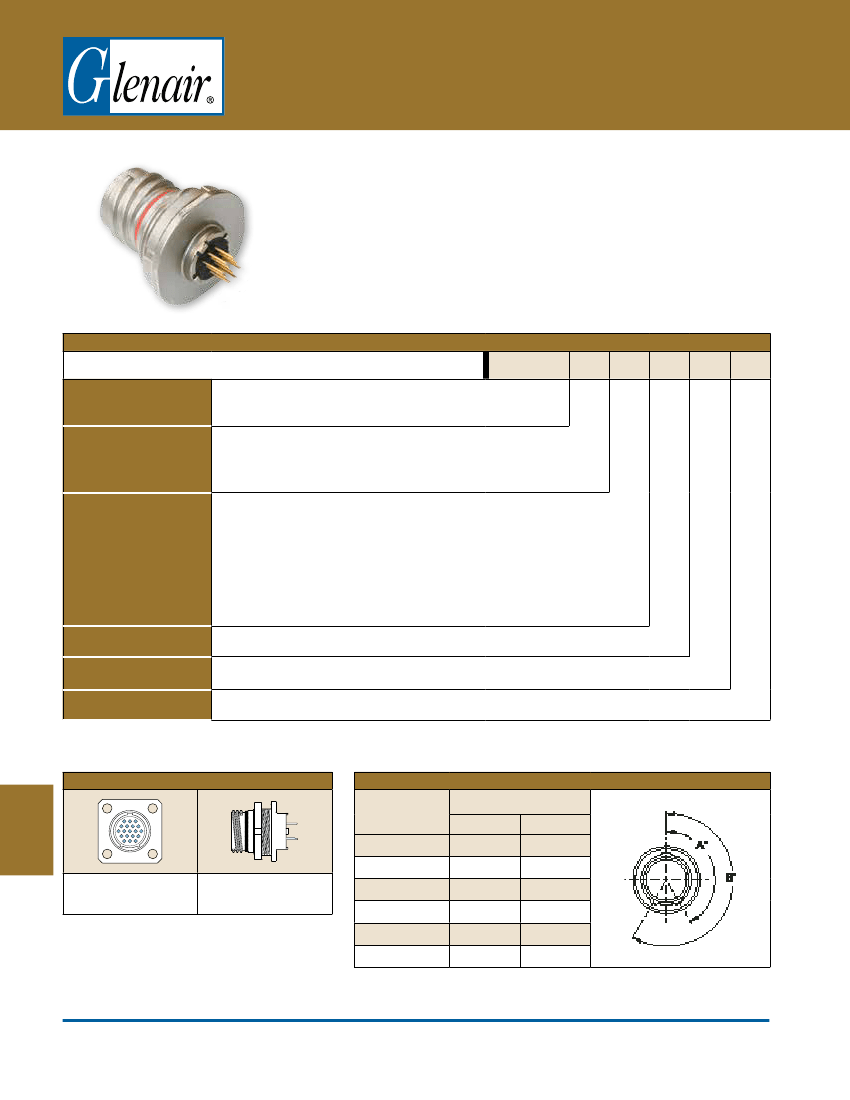

Series 805 Mighty Mouse Triple-Start ACME Thread
PCB or Solder Cup Receptacle
805-005 and 805-017 Ordering Information
Printed Circuit Board/Solder Cup Receptacles
feature low profile shells for
minimum protrusion inside enclosures and integral standoffs for board washout.
Contacts are non-removable.
Water Immersion, Unmated
Specify 805-005 connectors for applications where
open face water immersion is not a requirement. For MIL-STD-810 Method 512G
immersion requirements, specify 805-017 watertight connectors . These 805-017
connectors are specially sealed (“MOD-518”) and are 100% tested to maintain a
helium leak rate of 1 x 10
-4
cc/second at one atmosphere pressure differential from
-40° C to +70° C.
How To Order
Sample Part Number
Series
H
-02, -12, -22
Square Flange
-07
Jam Nut
Series 805
Shell Style (See Table I)
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
A
= Normal
805-017
805-005
= Receptacle with Standard Epoxy Potting
805-017
= Receptacle with Special “MOD-518” Sealing For Open Face
(unmated) Water Immersion Requirements. 100% Leak Tested.
-02
= Square Flange Front or Rear Mount
-12
= Square Flange Rear Mount Non-Locking Clinch Nuts
-22
= Square Flange Rear Mount Locking Clinch Nuts
-07
= Jam Nut Rear Panel Mount
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
ZB
= Stainless Steel / Olive Drab Chromate over Cadmium
ZC
= Stainless Steel / Zinc Cobalt Alloy/Black Chromate
See Contact Arrangements Page H-2
P
= Pin, PC Tail
S
= Socket, PC Tail
B
= Pos. B
E
= Pin, Solder Cup
F
= Socket, Solder Cup
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
-07
M
10-13
P
B
Table I: Shell Style
Key Position
Normal (A)
B
C
D
E
F
A
150°
75°
95°
140°
75°
95°
Table II: Key Positions
Key Rotation
B
210°
210°
230°
275°
275°
210°
Dimensions in Inches (millimeters) are subject to change without notice.
