510-93-012-05-001002

CategoryThe connector    socket
File Size483KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

510-93-012-05-001002 Online Shopping

Suppliers Part Number Price MOQ In stock
510-93-012-05-001002 - - View Buy Now

510-93-012-05-001002 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPGA SOCKET
Contact to complete cooperationGOLD (30) OVER NICKEL (100)
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact materialNOT SPECIFIED
Device slot typeIC SOCKET
Type of equipment usedPGA12
Shell materialPOLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 codee0
Number of contacts12
PIN GRID ARRAY
SOCKETS

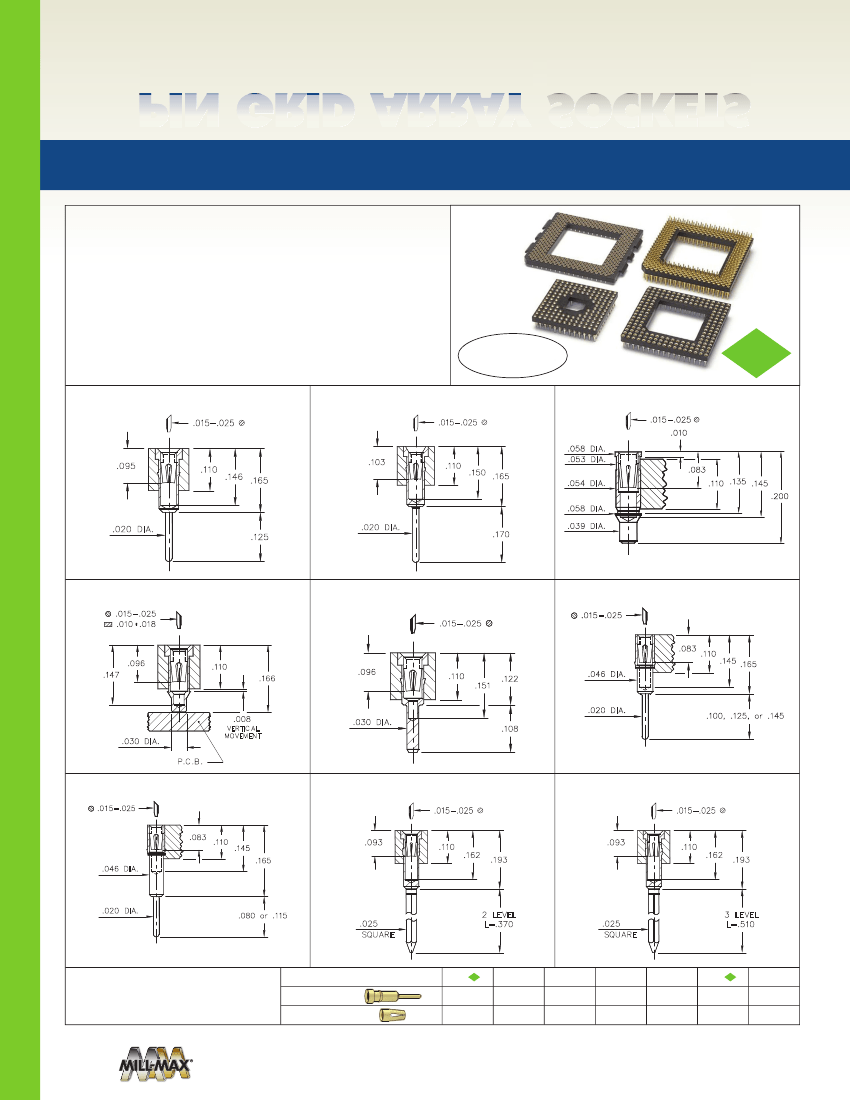

SERIES 510,511,513,514,515,518,522,523 • .100” AND INTERSTITIAL GRID •
SURFACE MOUNT, THROUGH
-
HOLE AND WIREWRAP
Series 510, 511, 514, 515, 522 and 523 PGA sockets are available
on .100” centers
Series 513 and 518 PGA sockets are available for Interstitial patterns
Choice of three low force clips to cover all applications
High temperature PCT polyester insulator material suitable for all
forms of soldering including lead-free
details
For Electrical, Mechanical and Environmental Data, see page 137 for
SERIES 510
(Standard Solder Tail)
.015-.025
XX=Plating Code
See Below
2011/65/EU
RoHS - 2
SERIES 511
(Long Solder Tail)
.015-.025
SERIES 513
(SMT Receptacle)
.015-.025
.010
.058 DIA.
.053 DIA.
.095
.110
.103
.110
.146 .165
.150
.165
.083
.054 DIA.
.058 DIA.
.110 .135 .145
.200
.020 DIA.
.125
.020 DIA.
.170
.039 DIA.
Interstitial Patterns Only
SERIES 514
(SMT Receptacle)
.015-.025
.010 .018
SERIES 515
(Low Pro le Solder Tail)
.015-.025
SERIES 518
(Solder Tail No, Heatsink Tabs)
.015-.025
.083
.096
.147
.110
.166
.110
.096
.145 .165
.110
.151
.122
.046 DIA.
.008
.030 DIA.
P.C.B.
VERTICAL
MOVEMENT
.020 DIA.
.030 DIA.
.100, .125, or .145
.108
Interstitial Patterns Only
SERIES 518
(Solder Tail w/ Heatsink Tabs)
PAGE 138 | IC SOCKETS / TO SOCKETS
.015-.025
SERIES 522
(2 Level Wrapost)
.015-.025
SERIES 523
(3 Level Wrapost)
.015-.025
.083
.110
.145
.165
.093
.110
.093
.162
.193
.110
.162
.046 DIA.
.193
.020 DIA.
.080 or .115
.025
SQUARE
2 LEVEL
L=.370
.025
SQUARE
3 LEVEL
L=.510
Interstitial Patterns Only
Visit www.mill-max.com/pga
to con gure a formal part number
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
13
10
µ”
Au
30
µ”
Au
91
10
µ”
Au
93
30
µ”
Au
99
100
µ”
Sn/Pb
43
200
µ”
Sn
30
µ”
Au
200
µ”
Sn/Pb 200
µ”
Sn/Pb 200
µ”
Sn/Pb
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
