M80-5T1140500-00-000-04-331

Description

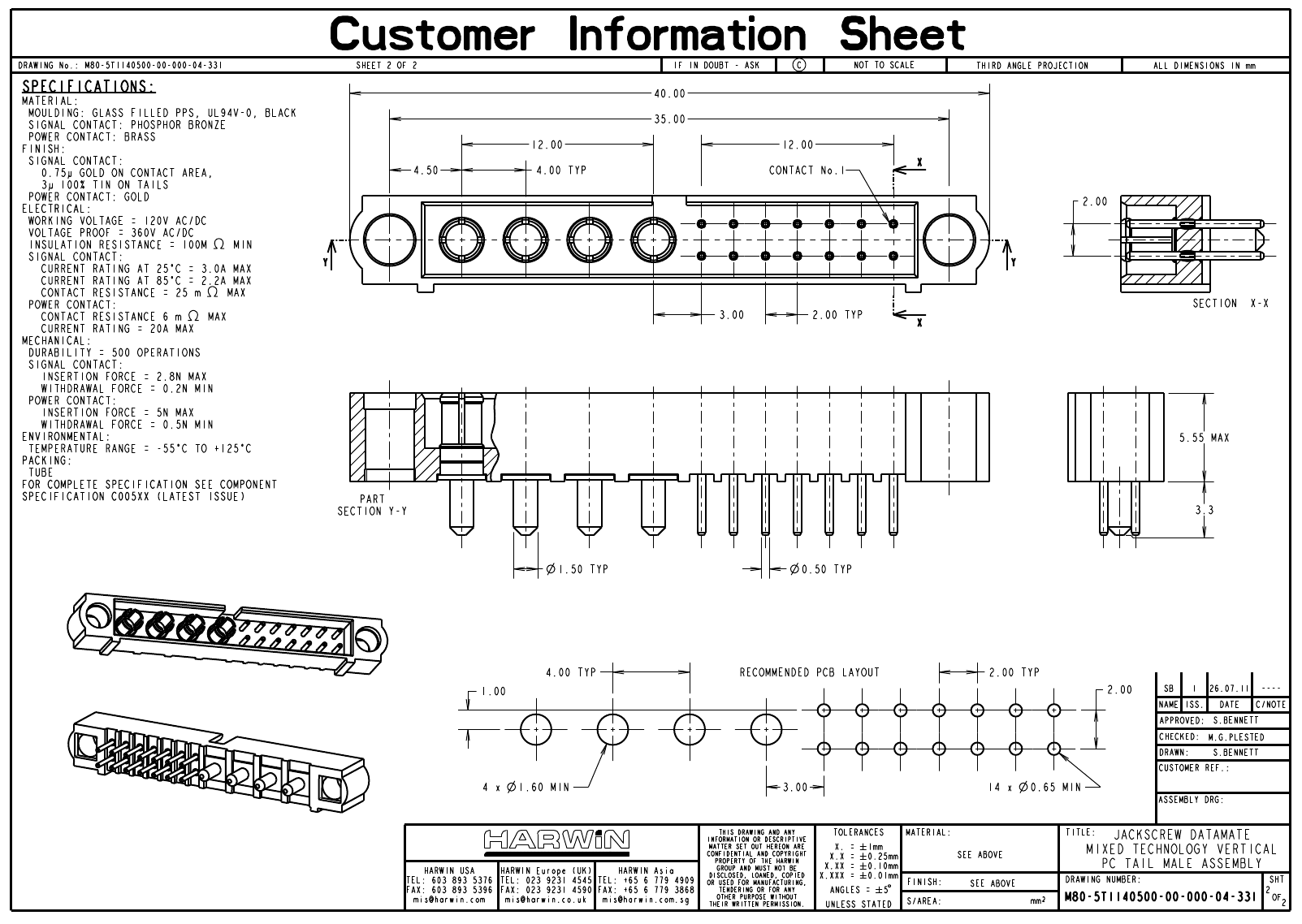

Power to the Board 14P PLUG VERTICAL PC TAIL 4.5MM
CategoryThe connector    The connector
File Size81KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric View All

M80-5T1140500-00-000-04-331 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-5T1140500-00-000-04-331 - - View Buy Now

M80-5T1140500-00-000-04-331 Overview

Power to the Board 14P PLUG VERTICAL PC TAIL 4.5MM

M80-5T1140500-00-000-04-331 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 4 MM
subject depth0.218 inch
body length1.574 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance25 mΩ
Contact styleHYBRID
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation option 2JACKSCREW
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.129 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts18
UL Flammability Code94V-0
Evacuation force-minimum value.199882 N
Base Number Matches1
