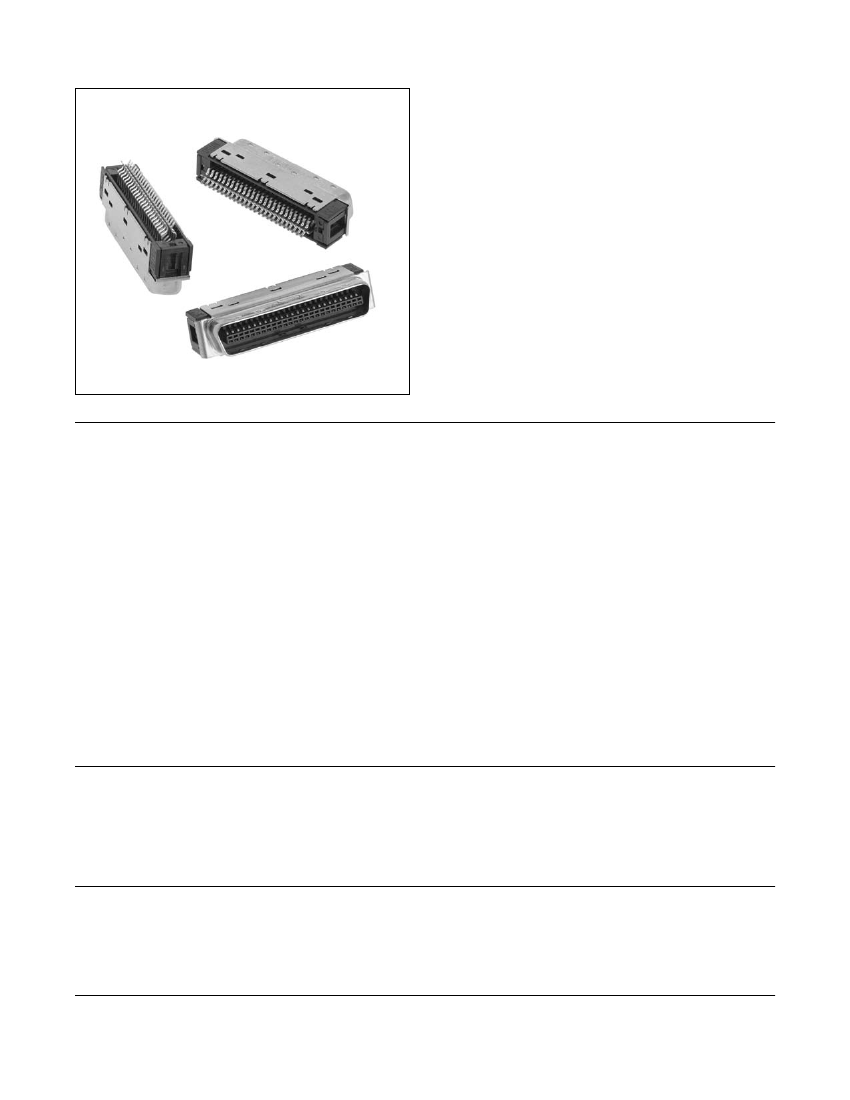

3M
™
Mini D Ribbon (MDR) Connectors
.050” Straddlemount Plug - Shielded
101 Series
•
Wiper-on-wiper contact for reliable repetitive
plugging
•
Solder tails require no special tooling
•
Contacts: 26, 50, 68, and 100
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: August 26, 2008
TS-0698-C
Sheet 1 of 2
Physical
Insulation Materiel:
Glass Reinforced Polyester (PCT) - Body
Flammability: UL 94V-0
Color: Black
Glass Reinforced Polyester (LCP) - Insert Mold
Contact Material:
Copper Alloy
Underplating: 80 μ” [ 2.0 μm ] Nickel
Wiping Area Plating: See Ordering Information
Solder Tail Plating: Gold flash over Nickel (RIA E1 & C1 apply)
Body Material:
Zinc Alloy
Plating: Nickel
Shroud:
Material: Steel
Plating: Nickel
Marking:
3M Logo & Part Number
Electrical
Current Rating:
1 A
Insulation Resistance:
> 5 x 10
8
Ω
at 500 V
DC
Withstanding Voltage:
500 V
RMS
for 1 minute
Environmental
Temperature Rating:
-20 °C to +85 °C
UL File No.: E68080
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M
™
Mini D Ribbon (MDR) Connectors
.050” Straddlemount Plug - Shielded
Positions
A
26
50
68
100
Position
Position 1
.025
[ 0.64 ]
.15
[ 3.7 ]
101 Series

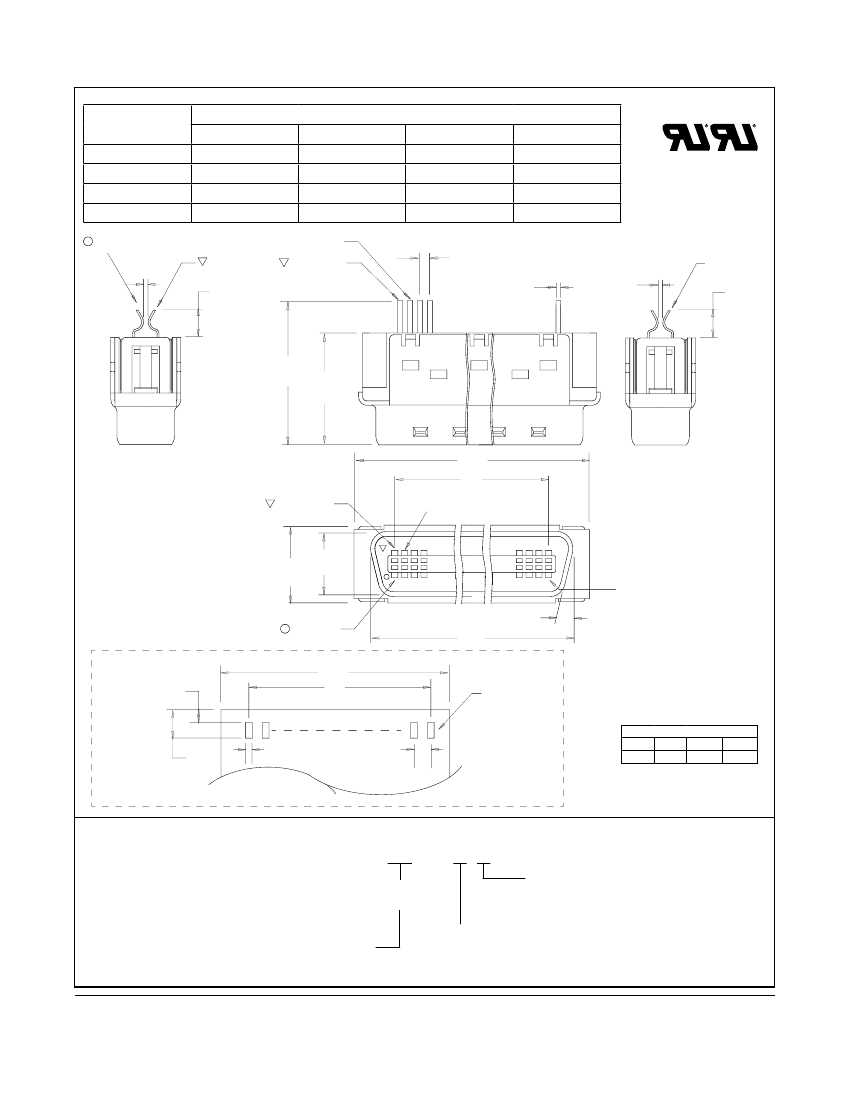

Dimensions
B
C
1.02 [ 25.8 ]
1.62 [ 41.1 ]
2.70 [ 52.5 ]
2.87 [ 72.8 ]
.050
±
.003
[ 1.27 ]
.024
[ 0.60 ]
.025
[ 0.64 ]
D
0.68 [ 17.2 ]
1.27 [ 32.3 ]
1.72 [ 43.7 ]
2.52 [ 64.0 ]
0.84 [ 21.4 ]
1.44 [ 36.6 ]
1.89 [ 48.1 ]
2.66 [ 67.5 ]
0.60 [ 15.2 ]
1.20 [ 30.5 ]
1.65 [ 41.9 ]
2.45 [ 62.2 ]
Position 2
Position 1
C
Last Position
.15
[ 3.7 ]
.65
[16.4 ]
.50
[ 12.7 ]
C
B
Position 1
Position 2
.36
[ 9.1 ]
.30
[ 7.5 ]
Last Position
Position
15°
A
D
.120
[3.09]
B
Solder pad
pattern repeated
on both sides of
board.
.050 .002
[1.27]
Typical
Board
Layout
Inch
[mm]
Tolerance Unless Noted
.220
[5.59]
.030 .002
[0.76]
Inch
[ ] Dimensions for
Reference Only
.0
±.1
.00
.000
±.01 ±.005
Ordering Information
101XX - 900APX
Contact Quantity
(See Table)
Note:
A0 = 100
Wiping Contact Plating:
L = 8 μ” [0.2 μm] min. Gold (RIA E1 & C1 apply)
C = 30 μ” [0.76 μm] min. Gold (RIA E1 & C1 apply)
Compatible Board Thickness
A = 1.0 mm standard
(0 = 1.6 mm special order)
TS-0698-C
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
