This document was generated on 09/25/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
39-00-0279
Active
Standard .062" Pin and Socket Power Connectors
1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1561,
3.68mm Pitch, Female, Tin (Sn) Plated Brass Contact, 18-24 AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-1625-010 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
UPC
Crimp Terminals
1561
Power
Yes
Standard .062" Pin and Socket Power Connectors
Standard .062"
800753689176

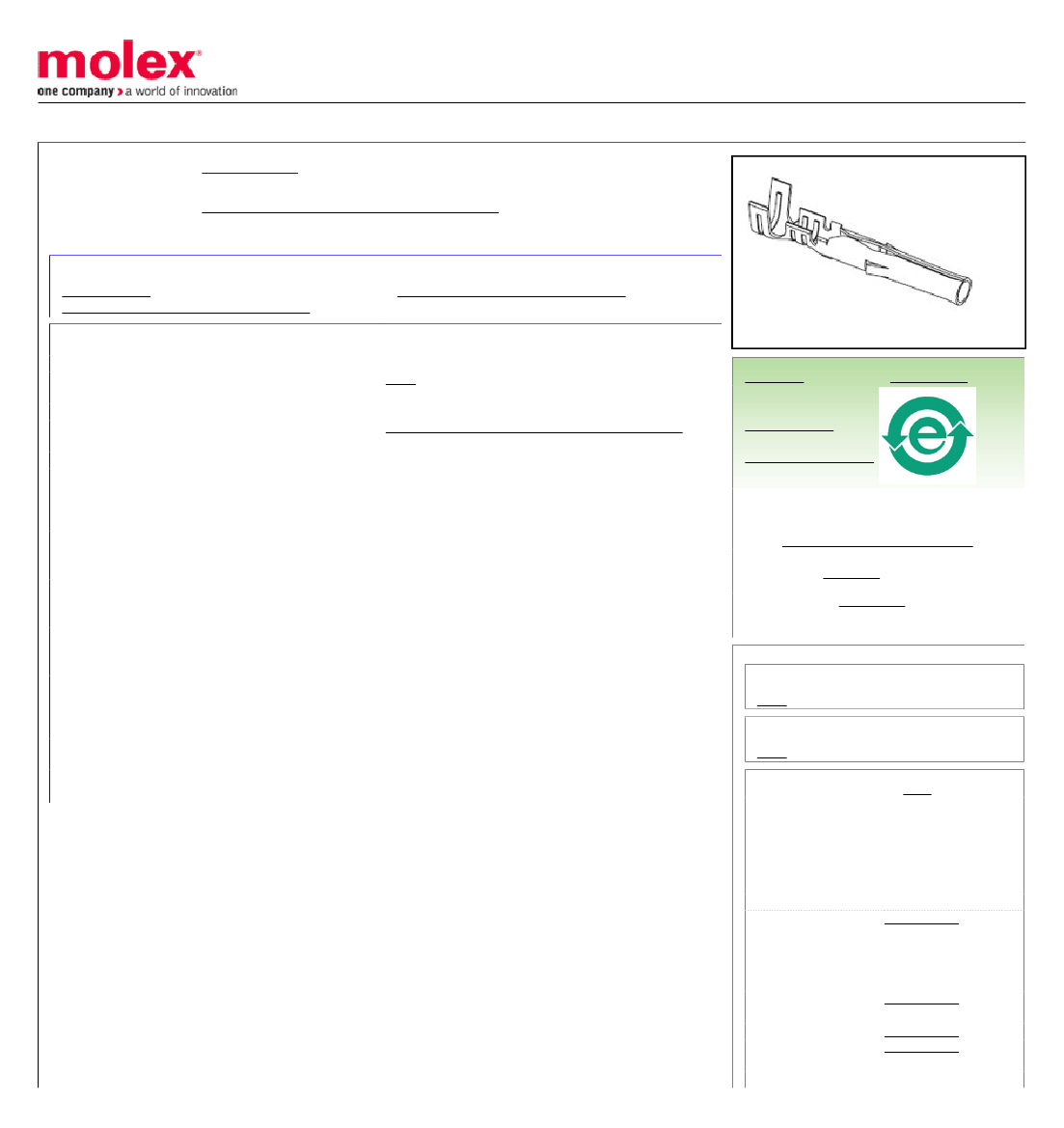

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
145.000/mg
Reel
0.889µm
0.889µm
Crimp or Compression
1.50-3.10mm
18, 20, 22, 24
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Old Part Number
1561T
Search Parts in this Series
1561Series
Use With
1625 Receptacle Housing
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool for 0638191300
Standard 1.57mm
Pin and Socket
Crimp Terminals,
18-24 AWG
Mini-Mac™
0638914000
Applicator
Hand Insertion Tool 0011020001
Manual Extraction
0011030002
Tool
Japan
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-1625-010, RPS-1625-001, RPS-5025-001
SD-1561-001
