Part Number

Search

B5743-226-M-T-0

Description
Headers u0026 Wire Housings 26 PIN MALE VERTICAL
CategoryThe connector    The connector
File Size59KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric Compare View All

B5743-226-M-T-0 Online Shopping

Suppliers Part Number Price MOQ In stock
B5743-226-M-T-0 - - View Buy Now

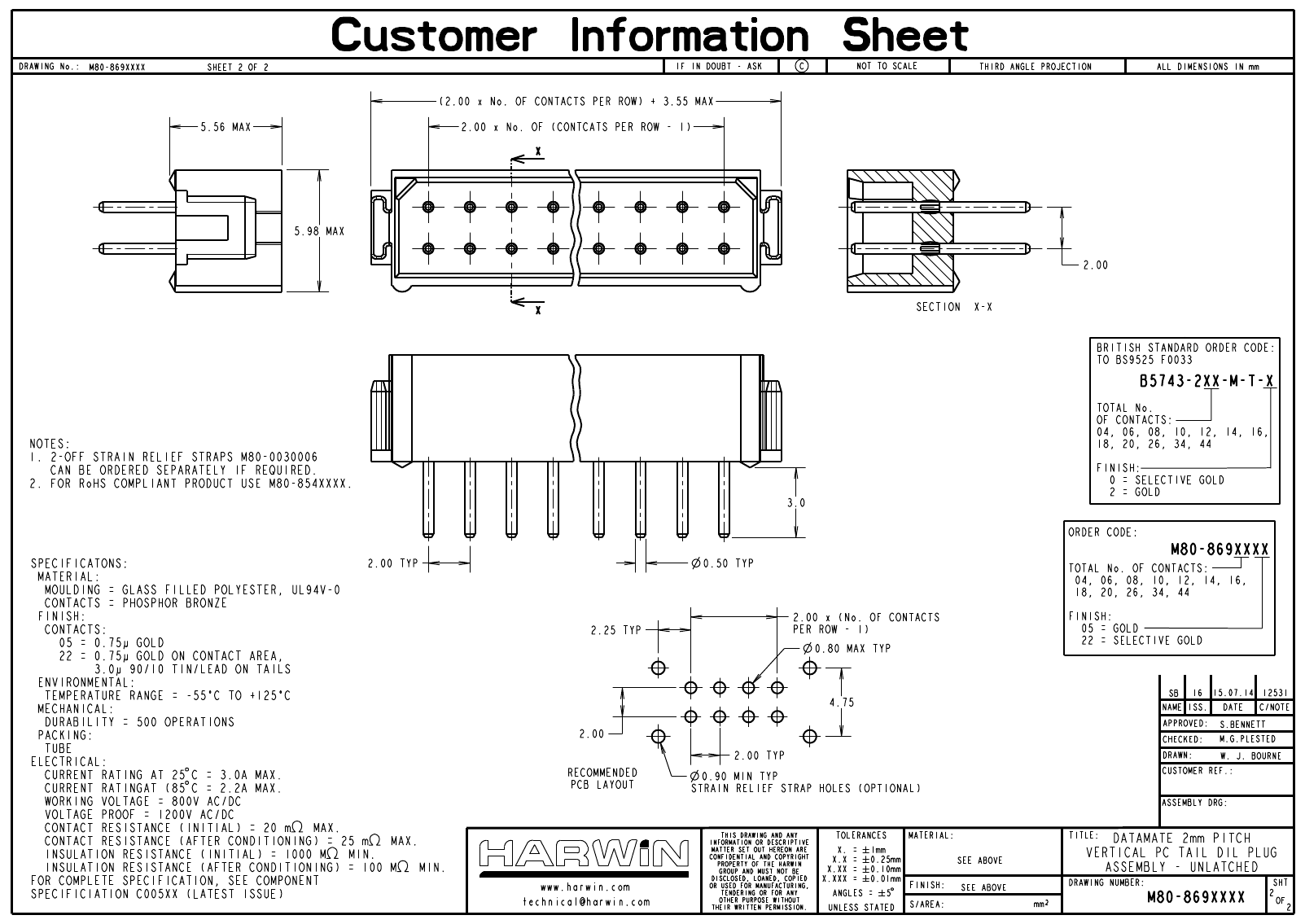

B5743-226-M-T-0 Overview

Headers u0026 Wire Housings 26 PIN MALE VERTICAL

B5743-226-M-T-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedTIN LEAD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberB5743
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts26
UL Flammability Code94V-0

B5743-226-M-T-0 Related Products

B5743-226-M-T-0 M80-8690622 B5743-210-M-T-2 M80-8690405 M80-8691205 B5743-218-M-T-0
Description Headers u0026 Wire Housings 26 PIN MALE VERTICAL Headers u0026 Wire Housings 3+3 POS DIL MALE VERT UNLATCHED TINLD Headers u0026 Wire Housings 10P VERTICAL PLUG GOLD Headers u0026 Wire Housings 2+2 POS DIL MALE VERT UNLATCHED GOLD Headers u0026 Wire Housings 18 PIN MALE VERTICAL
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compliant not_compliant compliant compliant compliant compliant
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD GOLD (30) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED GOLD
Contact completed and terminated TIN LEAD Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier TIN LEAD GOLD Gold (Au) TIN LEAD
Contact point gender MALE MALE MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED PHOSPHOR BRONZE
DIN compliance NO NO NO NO NO NO
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 26 6 10 4 12 18
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
JESD-609 code e0 e0 e0 - e4 e0
Manufacturer's serial number B5743 M80 - M80-869 M80-869 B5743
body width - 0.235 inch 0.235 inch 0.235 inch 0.235 inch -
subject depth - 0.219 inch 0.219 inch 0.219 inch 0.219 inch -
body length - 0.376 inch 0.533 inch 0.297 inch 0.612 inch -
contact mode - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
Contact style - RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT -
insulator material - GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER -
Plug contact pitch - 0.079 inch 0.079 inch 0.079 inch 0.079 inch -
PCB row number - 2 2 2 2 -
Terminal pitch - 2 mm 2 mm 2 mm 2 mm -
