800-10-004-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-10-004-20-001000

800-10-004-20-001000: DescriptionHeaders u0026 Wire Housings 4 PIN RT ANGLE HDR; CategoryThe connector The connector; File Size481KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

800-10-004-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-10-004-20-001000	-	-	View	Buy Now

800-10-004-20-001000 Overview

Headers u0026 Wire Housings 4 PIN RT ANGLE HDR

800-10-004-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

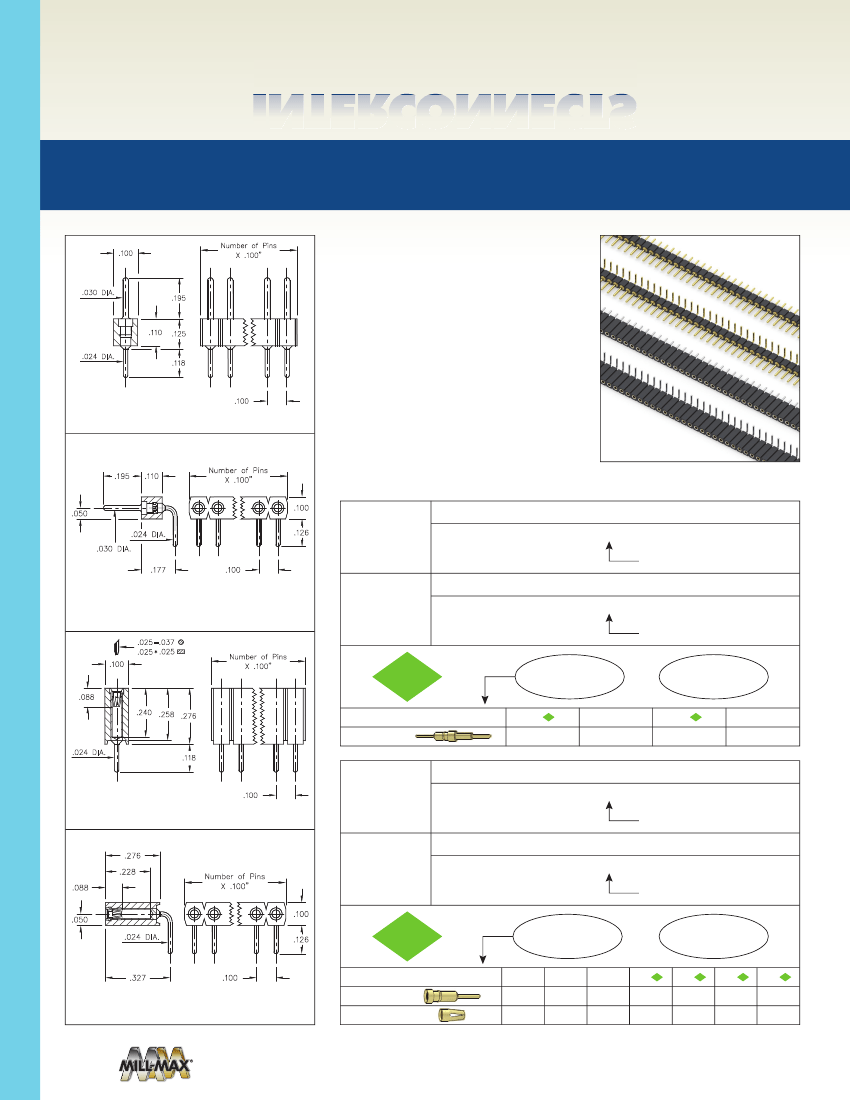

SERIES 800 & 801 • .100” GRID (.030” DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • SINGLE ROW STRIPS

Number of Pins

X .100"

.100

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005 solder tails.

See page 215 for details

.030 DIA.

.195

•

Sockets are available with straight MM #1304

or right angle MM #1305 soldertails. See

pages 177 and 179 for details

.110

.024 DIA.

.125

.118

•

MM #1304 and MM #1305 receptacles use

.100

FIG. 1

.195

.110

Number of Pins

X .100"

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept .030” diameter and

.025” square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

.100

.050

.024 DIA.

.030 DIA.

.177

.100

Series 800...10-001

Straight Pin Header

01-64

.126

FIG. 1

800 XX 0_ _ 10 001000

Specify number of pins

Series 800...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.025-.037

.025 * .025

.100

Number of Pins

X .100"

FIG. 2

RoHS - 2

800 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

µ”

2011/65/EU

.088

.240 .258

.276

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 801...10-001

.100

FIG. 3

.276

FIG. 3

801 XX 0_ _ 10 001000

Specify number of pins

01-50

Series 801...20-001

Number of Pins

X .100"

Straight Socket

Right Angle Socket

01-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 54 | INTERCONNECTS

.228

.088

FIG. 4

.100

801 XX 0_ _ 20 001000

Specify number of pins

.050

.024 DIA.

.126

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

.327

.100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

100

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

FIG. 4

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

44 Plating Non-Standard
