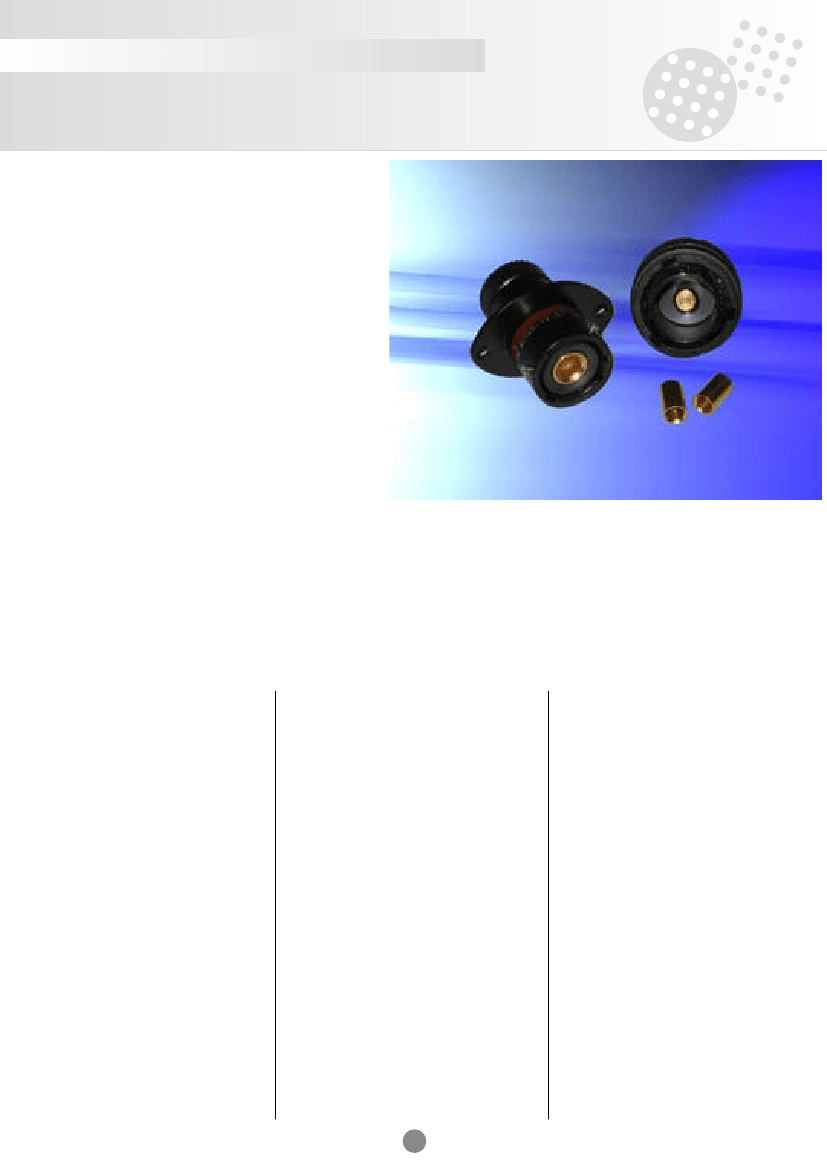

8STA Power Connector
Description
• 8STA power connector with single contact
#4 in shell size 1 for 10, 16, 25 and 35mm²
2
wires.
• Rugged aluminium body to ensure long
service time in the harshest environments.
• 6 colour-coded keyway orientations.
• Environmentally sealed.
Benefits
• Removable contact.
• Metal clip.
• Quick locking bayonet system.
• Compact design (shell size 1
2).
• Standard contact #4 from MIL-DTL 38999.
Application
Batteries, alternator or starter applications.
Technical features
Mechanical
•
Shell:
Aluminium
• Plating:
Conductive black zinc
• Insulator:
PEEK black
• Grommet & seal:
Liquid silicone rubber
• Contact:
Copper alloy
• Plating:
Gold
• Shock:
300g for 3ms and
MIL-S-901 grade A
• Endurance:
500 mating / unmating
operations
• Vibration:
1
47m/s2, 10 to 2000Hz
• Contact retention:
200N
Electrical
•
Contact rating:
1
25Amp (continuous)
200Amp (2 minutes)
•
Contact resistance:
(wire resistance included) 2mΩ
•
Insulation resistance
at
500Vdc:
≥
5000 mΩ
•
Shell continuity:
≤
10 mΩ
Environmental
•
Working temperature:
-55°C +1
75°C
•
Sealing
(mated connectors):
IP67
•
Salt spray:
48 hours
8STA Power Connector
Ordering information
Basic series
8STA 0
1
2 01
P
Shell type
0:
oval flange receptacle
1:
in line receptacle
6:
plug
7:
jam nut receptacle
Shell size
1
2
Contact layout
Single way 1 contact#4
Contact type
P:
pin
A:
supplied without standard male contact
S:
Socket
B:
supplied without standard female contact
Orientation
N: red – A: yellow – B: blue – C: orange – D: green – U: universal
Specification
261
Note:
1) Standard connector P/N (ex.: 8STA01
201PN261, 8STA61
201SN261) is provided with contacts for
16mm² wire.
2) For wire 10mm²: order standard connector (note1) + a reducing sleeve (8400 2351A) separately.
3) For wire 35mm²: order standard connector (note 1) + a widener (8599 7523) separately.
4) For wire 25 mm²: order connector without contacts (ex.: 8STA01
201AN261, 8STA61
201BN261), +
pin (8599 7598) & socket (8599 7599) separately.
N
261
For more information about 8STA product range,
Please contact:
contactmilaero@souriau.com
8STA Power Connector

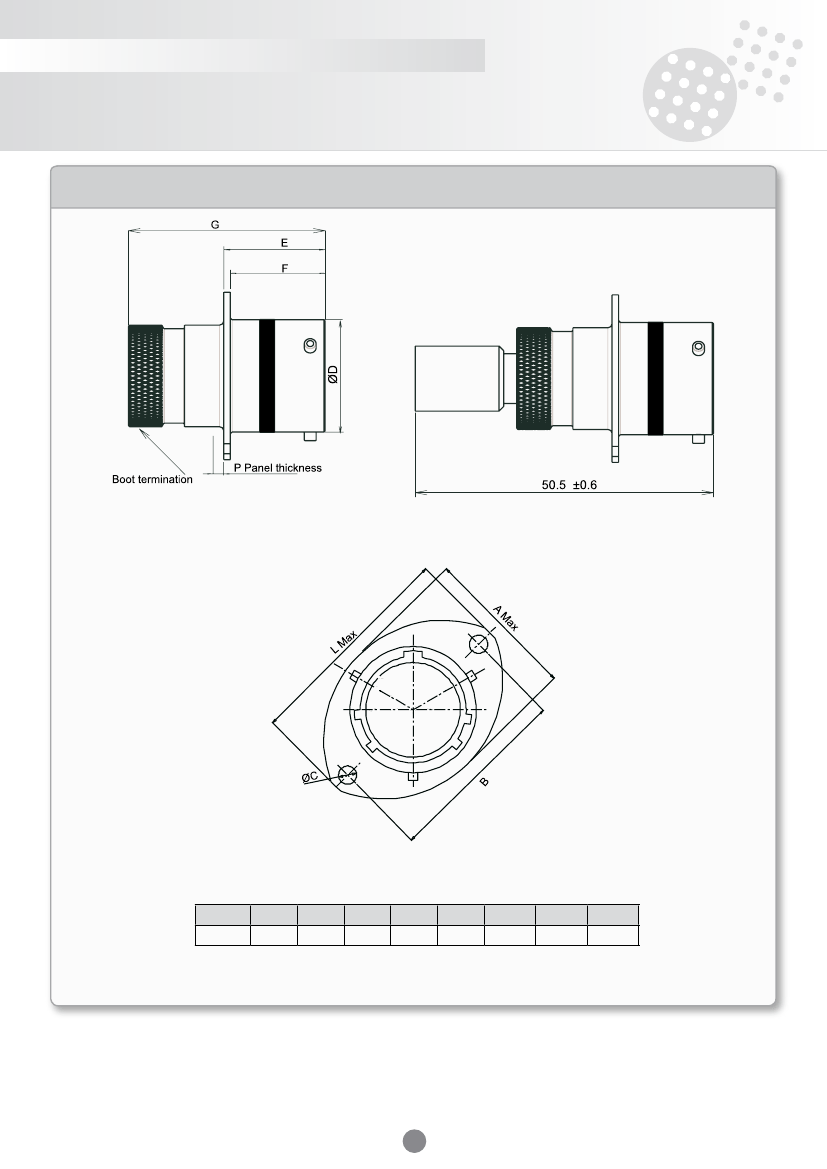

Oval flange receptacle (type 0)
10, 16 & 25 mm² wire
35 mm² wire
A Max
24.00
B
±0.20
29.10
0
-0.1
3
ØC
+0.1
ØD
+0.2
0
E
+0.15
F
-0.13
0
16.05
G Max
33.50
L Max
35.20
P Max
3.00
3.20
19.05
1
7.21
Dimensions in mm.
8STA Power Connector

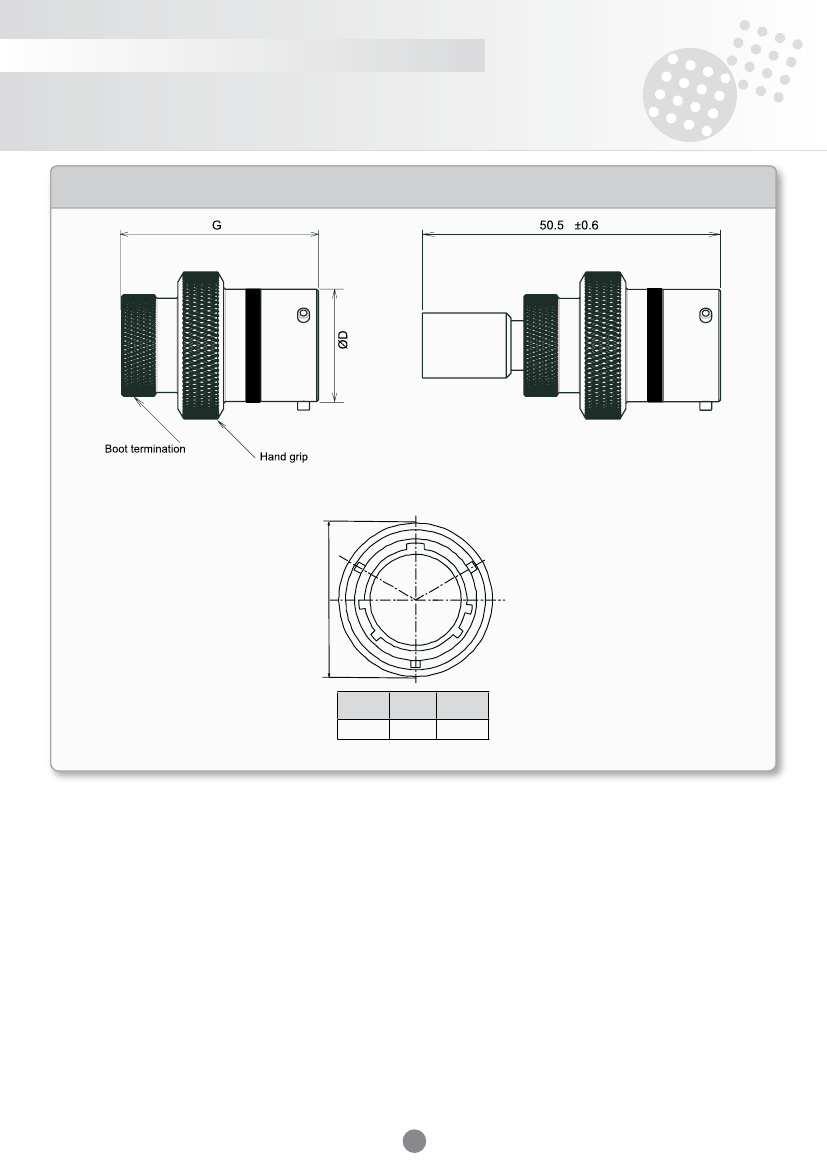

In line receptacle (type 1)
10, 16 & 25 mm² wire
35 mm² wire
ØA
A Max
25.10
-0.1
ØD
+0.2
3
G Max
33.50
19.05
Dimensions in mm.
8STA Power Connector

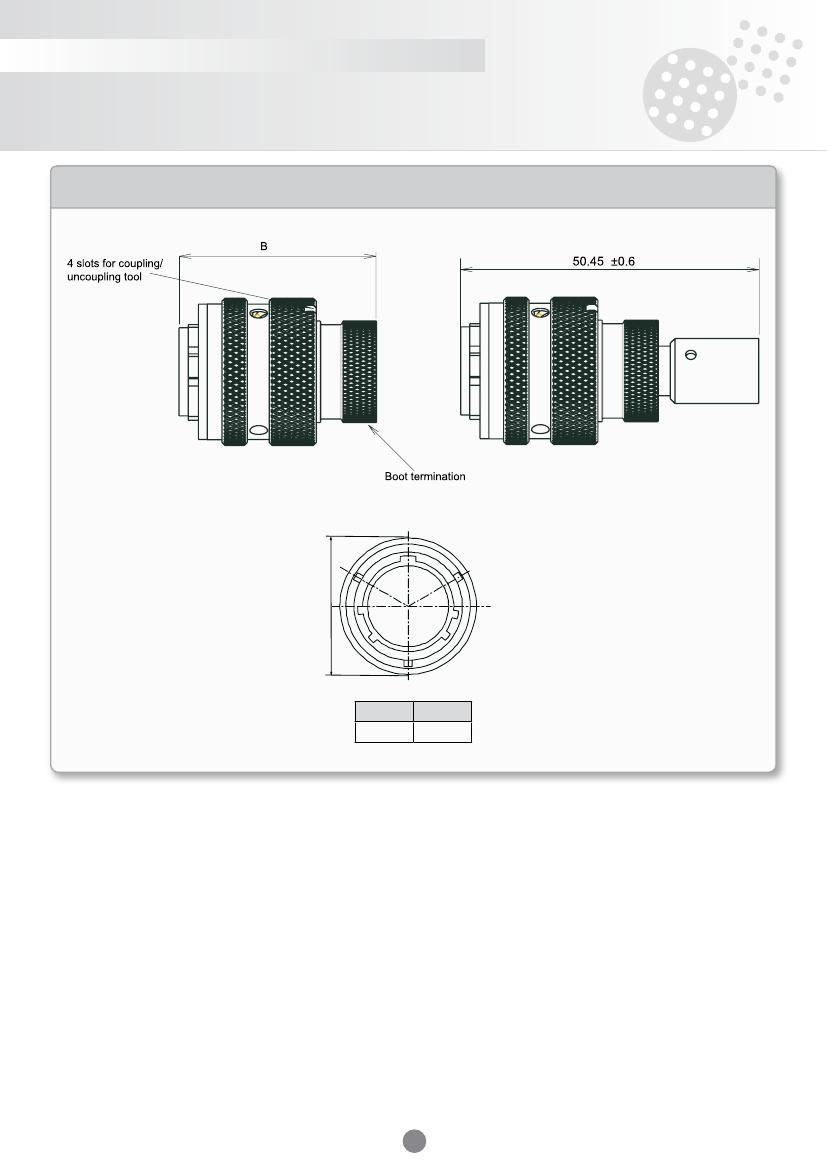

Plug (type 6)
10, 16 & 25 mm² wire
35 mm² wire
ØA
A Max
25.10
B Max
33.50
Dimensions in mm.
