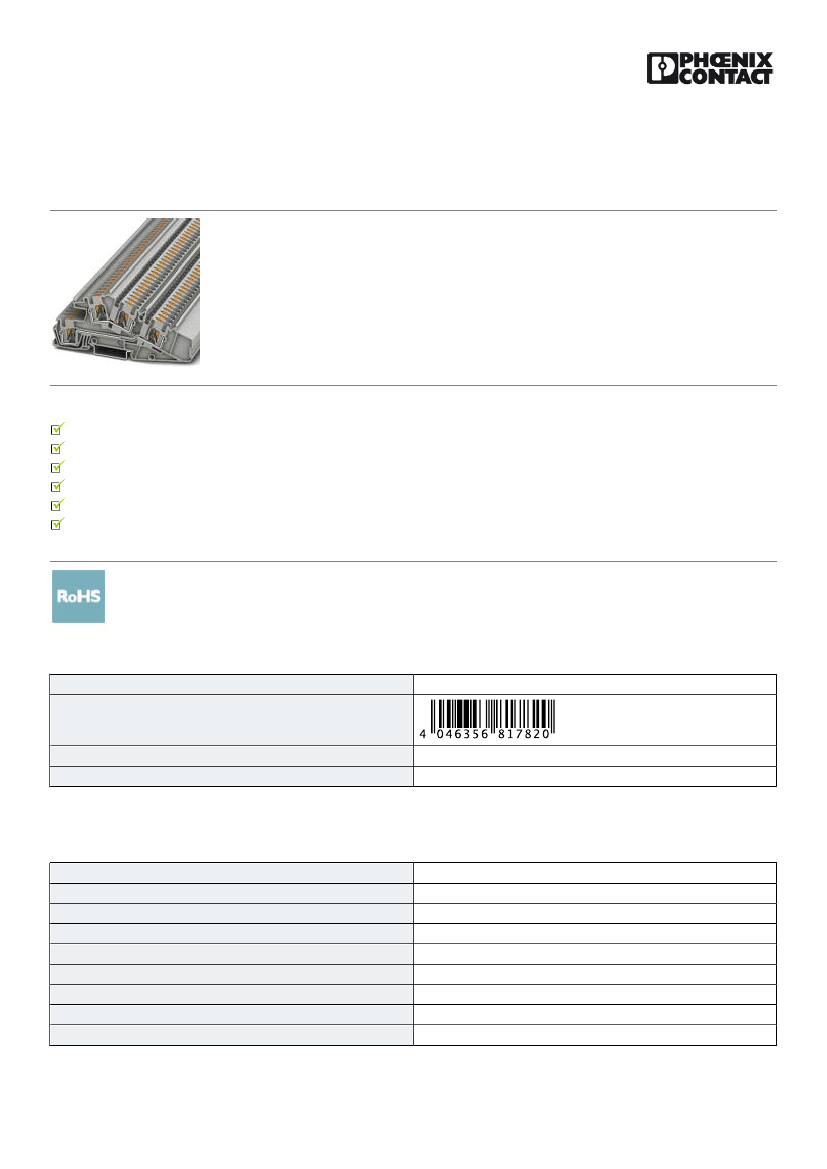

Installation level terminal block - PTI 4-L/L - 3214052
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Installation level terminal block, Push-in connection, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10,
Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Why buy this product
Compatible with all Phoenix Contact installation terminal blocks
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
As well as the testing facility in the function shaft, each terminal point has a test contact
Double function shafts on all levels
Compact design tailored to installation distributors
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34
mm² or higher
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356817820
85369010
50 STK
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
3
4
2
4 mm²
gray
PA
V0
32 A (with 6 mm² conductor cross section)
6 kV
11/15/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/3214052
Installation level terminal block - PTI 4-L/L - 3214052
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
32 A (with 6 mm² conductor cross section)
28 A (with 4 mm² conductor cross section)
400 V
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
114 mm
50.5 mm
58 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Push-in connection
IEC 60947-7-1
0.2 mm²
6 mm²
24
10
0.2 mm²
6 mm²
24
11/15/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/3214052
Installation level terminal block - PTI 4-L/L - 3214052
Technical data
Connection data
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Connection method
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
10
0.25 mm²
0.25 mm²
4 mm²
0.5 mm²
1 mm²
10 mm ... 12 mm
A4
Push-in connection
1 mm²
10 mm ... 12 mm
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
EAC / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
EAC EAC-Zulassung
11/15/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/3214052
Installation level terminal block - PTI 4-L/L - 3214052
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-8
27 A
300 V
D
20-8
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-8
27 A
300 V
D
20-8
10 A
300 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 4 / 4
