2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces
DF62 Series / DF62W Series
（UL, C-UL Listed）
Non-waterproof
type
（DF62B, DF62C,
DF62P）
Waterproof type
（DF62W）
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. The slim, sleek design and smooth contour combine
to complete connections in tight spaces.
These connectors were designed to take full advantage
of small/narrow spaces. The contacts are arranged in a
grid pattern which shortens the diagonal distances and
the body was slimmed down by creating smooth outer
surfaces. This design helps to save precious space and
makes these connectors virtually tangle free. There is
no visible or exposed metal which would eliminate the
possibility of electrical arcing between the connector
and the inside of a metal conduit. (Please refer to Fig. 1
and 2)
Compact shape due to 2 × 2.2 grid layout of pins
*Both are 7 contacts with 3A current rating
16
Existing
products
16
DF62
Fig.1
Smooth external
shape
No exposed metal
Grid Arrangement
2. Secure lock mechanism
The locking structure emits a clear tactile click upon
lock completion. After completion, a second indicator
can be utilized. The socket lock can be visually
checked through the plug window after mating. These
indicators function together to prevent incomplete
mating. (Please refer to Fig. 3)
Fig.2
Visual check
for complete
mating
3. Reliable contact structure
The structure utilizes two contact points to provide
a reliable contact that resists damage from vibration
and rough operation.
1.Visual check area
4. Robust contact structure
The unique structure provides protection to the
contacts and lance areas, it prevents any bending
or deformity that might occur during mating, the
assembly procedure or while in transportation.
(Please refer to Fig. 4)
2. Locking is confirmed
by an audible click.
Fig.3
（Water-resistant
type (DF62W)）
Robust box-shaped contact structure
Image of the outward
appearance of the contact
（For
non-water-proof type）
5. Multiple variations available
There are several different wire counts available,
giving the designer the variety needed to complete
the application. Protected lock type, panel mount
type and pin header type are also available.
6. Applicator sharing
The applicators for the DF11 and DF59 series (existing
products) can be adapted to accommodate the DF62
series applicators.
*Some
modifications are required.
Please contact Hirose for additional details.
（Non-water-resistant
type (DF62) contacts）
Designed for easy
contact insertion.
Fig.4
Condensation prevention measure
(Water-resistant type, IP67 rated)
Housing seal
7. Water-resistant type (DF62W)
IP67 water-resistance occurs only in the mated condition.
(Please refer to Fig. 5)
Wire seal
Wire seal
Fig.5
2016.7③
1
DF62 Series / DF62W Series●2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces (UL, C-UL Listed)
■Product
Specifications
DF62
22 AWG : 4A/pin (2 pos.)
3A/pin (3 - 13 pos.)
Current
Rating
2.5A/pin (24 pos.)
(Note 1) 24 AWG : 2A/pin
26-30 AWG : 1A/pin
Operating Temperature Range
Operating Humidity Range
-35 to 105ç (Note 2)
UL/C-UL -35 to 75℃
（Note
2, 5）
20
∼
80% (Note 3)
-40 to 105℃
（Note
2）
UL/C-UL -40 to 75℃
（Note
2, 5）
20 to 80％
（Note
3）
-10 to 60ç (Note 4)
40 to 70% (Note 4)
Conditions
Measured with DC 500V
Apply AC 650V for 1 minute
Measured at a maximum of 20mV and 100mA (DC or 1000Hz)
10 cycles in each of three directions at frequency 10-55Hz,
half amplitude 0.75mm
Acceleration : 490m/s
2
, 11 ms, Semi-sinusoidal 3 axle
direction 3 times each.
Left at temperature 40 ±2ç, humidity 90 to 95%, 96 hours
-55ç : 30 minutes
→
5 to 35ç : 2 to 3 minutes
→
85ç :
30 minutes
→
5 to 35ç : 2 to 3 minutes, 5 cycles
Mating/unmating : 30 mating cycles
20 AWG : 5A (2 pos.), 3.5A/pin (3 to 9 pos) Operating Temperature Range
Current
22 AWG : 4A (2 pos.), 3A/pin (3 to 9 pos)
Ratings DF62W Rating
24 AWG : 3.5A (2 pos.), 2A/pin (3 to 9 pos)
(Note 1)
26 AWG : 3A (2 pos.), 1A/pin (3 to 9 pos) Operating Humidity Range
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Voltage
Common
Rating UL/C-UL
(Note 5)
Items
1. Insulation Resistance
2. Withstanding Voltage
3. Contact
Resistance
4. Vibration
Resistance
5. Shock
Resistance
6. Humidity
Resistance
7. Temperature
Cycles
8. Durability
Specifications
AC/DC 250V
AC/DC 29.9V
UL File name
UL
：
E52653
C-UL : E52653
Storage Temperature Range
Storage Humidity Range
Specifications
Minimum of 1,000Mø
No flashover or breakdown
Maximum of 30mø
No electrical discontinuity of 1µs or longer
No electrical discontinuity of 1µs or longer
Contact Resistance Maximum of 30mø
Insulation Resistance : Minimum of 1,000Mø
Contact Resistance : Maximum of 30mø
Insulation Resistance : Minimum of 1,000Mø
Contact Resistance : Maximum of 30mø
Note 1 : This is the maximum current rating while all pins are powered or used as all power lines. When isolating power lines into multiple
circuits, current ratings may go above the stated current ratings. Please consult Hirose for specific details before doing this.
Note 2 : Includes the temperature rise of power lines
Note 3 : The connector should be completely dry (no condensation present)
Note 4 : The term “storage” refers to the long-term storage condition of unused products before PCB mounting. The operating
temperature and humidity ranges are applied while in a non-energized state, while in transport or after PCB mounting.
Note 5 : Header type are UL/C-UL pending.
■Materials
/ Finish
Item
Socket crimping
contact
Plug crimping
contact
Crimping socket
Crimping plug
Crimping socket
＊
Crimping plug
＊
Component
Contact
Contact
Insulator
Insulator
Material
Phosphorous bronze
Phosphorous bronze
PBT
PBT
Silicone rubber
DF62
DF62W
Contact
Straight pin header : Polyamide
Right angle pin header : PBT
Black
PBT
Copper alloy
Gold plating or tin plating
Brass
Silicone rubber
Tin plating
Bengala
UL94V-0
−
−
−
Finish
Gold plating or tin plating
Gold plating or tin plating
White
Black
Bengala
UL Flammability rating
−
−
UL94V-0
UL94V-0
−
Seal
Insulator
Header
Metal fitting
Seal
＊
＊Waterproof
type (DF62W) only
2
DF62 Series / DF62W Series●2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces (UL, C-UL Listed)
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
Note : The water-proof type and a non-water-proof type are not intermateable.
◆Non-water-resistant type
●Connector
DF 62B -
*
S - 2.2 C (00)
❶
❷
❸ ❹
❺
❻
❼
❻Connection
part shape
C : Crimping housing
❼Color
Socket 00 : White
11 : Black
18 : Red
❶Series
Name：DF
❷Series
No. : 62B (regular type)
62C (Protected lock type )
62P (Panel mount type )
❸No.
of Contacts : 2, 3, 4, 5, 6, 7, 13, 24
❹Connector
type
S : Socket, EP : Extension plug
❺Contact
pitch : 2.2mm
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Extension plug 00 : Black
10 : White
18 : Red
●Contact
DF 62 - EP 2428 PCF A
❶
❷
❸
❹
❺
❻
❺Contact
type /packaging type
SCF : Socket crimping contact, reel
SC : Socket crimping contact, pieces
PCF : Plug crimping contact, reel
PC : Plug crimping contact, pieces
❻Plating
type
A : Gold plating
None : Tin plating
❶Series
Name：DF
❷Series
No. : 62
❸Terminal
type
EP : Extension plug
❹Applicable
wire size
22
：22
AWG
2428：24 to 28 AWG
30
：30
AWG
●Connector
DF 62 -
*
P - 2.2 DSA (00)
❶
❷
❸ ❹
❺
❻
❼
❻Connection
part shape
DSA : Straight pin header
DS : Right angle pin header
❼Plating
type
(00) : Tin plating
❶Series
Name：DF
❷Series
No. : 62
❸No.
of Contacts : 13, 24
❹Connector
type
P : Header
❺Contact
pitch : 2.2mm
3
DF62 Series / DF62W Series●2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces (UL, C-UL Listed)
◆IP67 Water-resistant type
●Connector
DF 62W -
*
S - 2.2 C
❶
❷
❸ ❹
❺
❻
❺Contact
pitch : 2.2mm
❶Series
Name：DF
❷Series
No. : 62W
❸No.
of Contacts : 2, 3, 4, 6, 9
❹Connector
type
S : Socket, EP : Extension plug
❻Connection
part shape
C : Crimping housing
●Contact
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF 62W - EP 2226 PCF A
❶
❷
❸
❹
❺
❻
❺Contact
type /packaging type
SCF : Socket crimping contact, reel
SC : Socket crimping contact, pieces
PCF : Plug crimping contact, reel
PC : Plug crimping contact, pieces
❻Plating
type
A : Gold plating
None : Tin plating
❶Series
Name：DF
❷Series
No. : 62W
❸Terminal
type
EP : Extension plug
❹Applicable
wire size
2022：20 to 22 AWG
2226：22 to 26 AWG
●Water-proof
pin
DF 62W - WP
❶
❷
❸
❸For
each use type
WP :
◆IP67
Water-resistant type
❶Series
Name：DF
❷Series
No. : 62W
●Connector
DF 62W -
*
P - 2.2 DSA (00)
❶
❷
❸ ❹
❺
❻
❼
❺Contact
pitch : 2.2mm
❻Connection
part shape
DSA : Straight pin header
❼Plating
type
(01) : Gold plating
❶Series
Name：DF
❷Series
No. : 62W
❸No.
of Contacts : 9
❹Connector
type
P : Header
4
DF62 Series / DF62W Series●2 × 2.2mm Pitch, Wire-to-Wire Connectors for Small Spaces (UL, C-UL Listed)

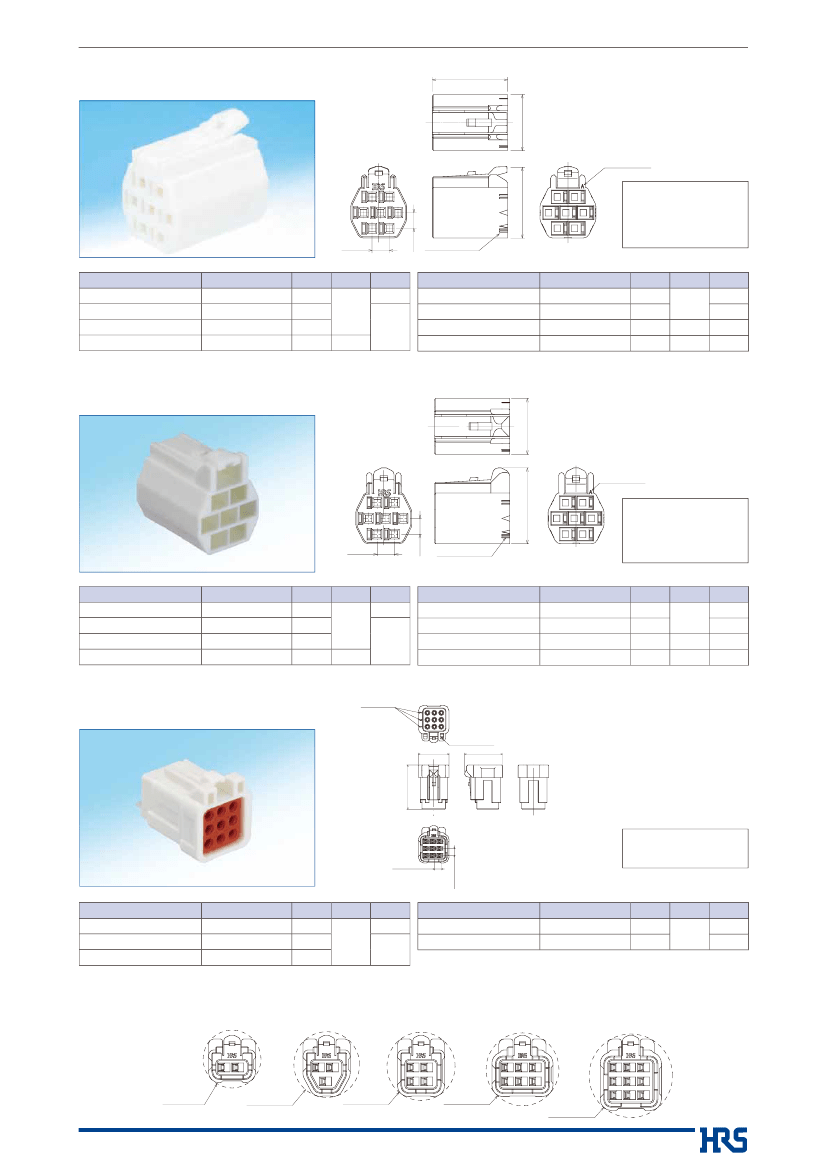

■Socket
(standard type)
9.55
*7 pos. shown
as an example.
A
Cavity No.
P=2
P=2.2
No. of
Contacts
Contact No. marking
[Specification No.] **
(00) : White
(11) : Black
(18) : Red
Unit : mm
No. of
Contacts
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part No.
HRS No.
A
B
Part No.
HRS No.
DF62B-2S-2.2C(**)
544-0551-0 **
2
5.08
DF62B-6S-2.2C(**)
544-0555-0 **
DF62B-3S-2.2C(**)
544-0552-2 **
3
4.9
DF62B-7S-2.2C(**)
544-0556-3 **
DF62B-4S-2.2C(**)
544-0553-5 **
4
7.08
DF62B-13S-2.2C(**)
544-0557-6 **
DF62B-5S-2.2C(**)
544-0554-8 **
5
7.1
DF62B-24S-2.2C(**)
544-0539-4 **
Note 1 : This product is sold per pack (100pcs/pack), please place orders in full pack increments.
B
A
7.1
9.3
12.3
6
7
13
24
B
7.08
9.08
11.08
13.08
■Socket
(Protected lock type)
A
*7 pos. shown
as an example.
Cavity No.
P=2.2
Contact No. marking
[Specification No.] **
(00) : White
(11) : Black
(18) : Red
Unit : mm
No. of
Contacts
Part No.
HRS No.
A
B
Part No.
HRS No.
DF62C-2S-2.2C(**)
544-0565-4 **
2
5.65
DF62C-6S-2.2C(**)
544-0569-5 **
DF62C-3S-2.2C(**)
544-0566-7 **
3
4.9
DF62C-7S-2.2C(**)
544-0570-4 **
DF62C-4S-2.2C(**)
544-0567-0 **
4
7.65
DF62C-13S-2.2C(**) 544-0571-7 **
DF62C-5S-2.2C(**)
544-0568-2 **
5
7.1
DF62C-24S-2.2C(**) 544-0541-6 **
Note 1 : This product is sold per pack (100pcs/pack), please place orders in full pack increments.
No. of
Contacts
P=2
B
A
7.1
9.3
12.3
6
7
13
24
B
7.65
9.65
11.65
13.65
■Socket
(Water proof type)
Contact No.
Cavity No.
B
*9 pos. shown
as an example.
A
14.05
P=2.2
P=2.2
[Specification No.] **
Blank : 100pcs/pack
Unit : mm
Part No.
Part No.
DF62W-2S-2.2C
DF62W-3S-2.2C
DF62W-4S-2.2C
HRS No.
544-1002-7 00
544-1004-2 00
544-1006-8 00
No. of
Contacts
A
7.5
2
3
4
B
7.55
9.75
DF62W-6S-2.2C
DF62W-9S-2.2C
HRS No.
544-1008-3 00
544-1010-5 00
No. of
Contacts
A
9.7
6
9
B
9.75
11.95
Note 1 : This product is sold per pack (100pcs/pack), please place orders in full pack increments.
Note 2 : The Water-proof type and a non-water-proof type are not intermateable.
Pin configuration of the contact numbers. (Shown from the mating side.)
2 pos.
1
2
3 pos.
1
3
2
4 pos.
1
3
2
4
6 pos.
1
4
2
5
3
6
9 pos.
1
4
7
2
5
8
3
6
9
Ø9.2mm
Ø10.4mm
Ø10.8mm
Ø11.6mm
Ø13.3mm
Note : Applicable jacket outer diameter : Ø1.4 to 1.6mm
5
京公网安备 11010802033920号
EEWORLD
