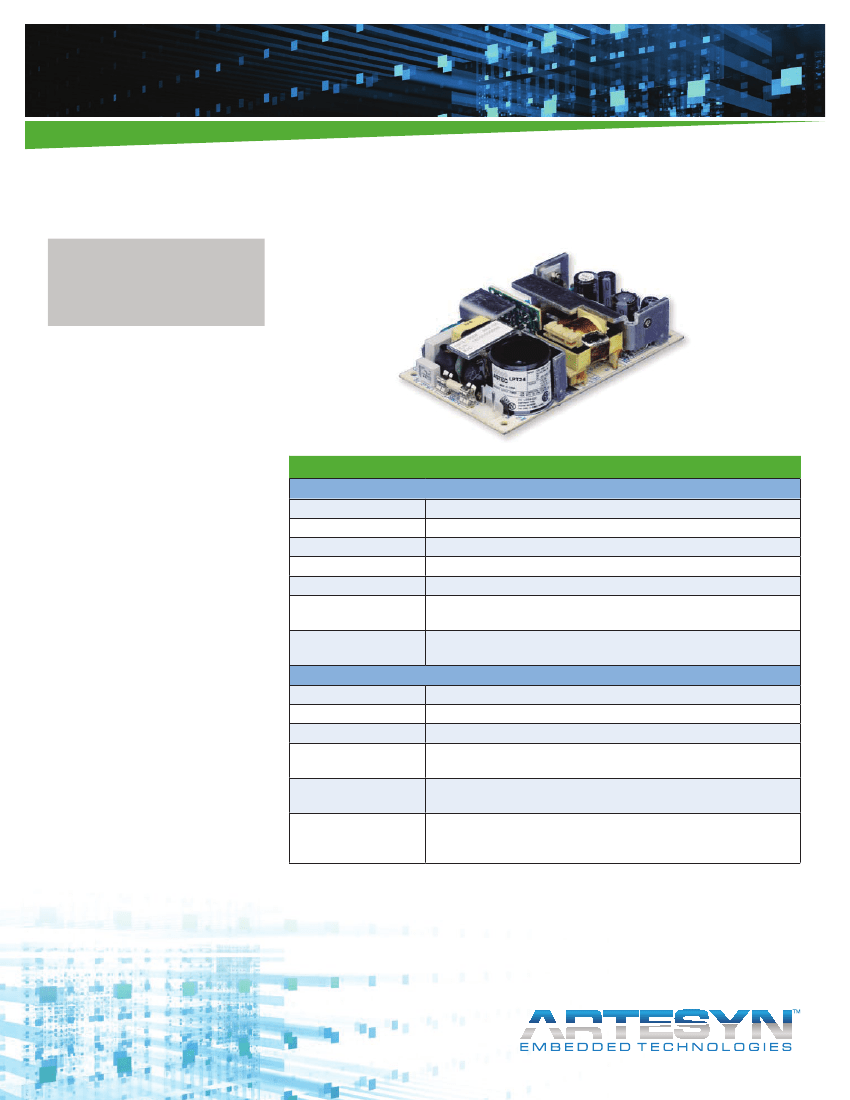

POWER
Data Sheet
Total Power:
25 - 40 Watts
Input Voltage:
85 - 264 Vac
120 - 300 Vdc
# of Outputs:
Single
SPECIAL FEATURES
Universal input
3” x 5” footprint
Less than 1U high
Remote sense
Built-in EMI filter
Low output ripple
Adjustable output
Overvoltage protection
Overload protection
110 KHz switching frequency
LPX40 enclosure kit available
RoHS compliant
Two year warranty
LPS25 Series
25 Watts
Electrical Specifications
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI filter
Safety ground
leakage current
Output
Maximum power
Adjustment range
Hold-up time
Overload protection
Overvoltage protection
Remote sense
25 W for convection; 40 W with 30CFM forced air
-5, +10% minimum
20 ms @ 25 W load, 115 Vac nominal line
Short circuit protection on all outputs
Case overload protected @ 110-145% above peak rating
5 V output; 5.7 to 6.7 Vdc.
Other outputs 10% to 25% above nominal output
Compensates for 0.5 V lead drop minimum
Will operate without remote sense connected
Reverse connection protected
85 - 264 Vac; 120 - 300 Vac
47 - 440 Hz
<15 A peak @ 115 Vac; <30 A peak @ 230 Vac, cold start @ 25 °C
1 A max. (RMS) @ 115 Vac
70% typical at full load
FCC Class B conducted; CISPR 22 Class B conducted; EN55022
Class B conducted
<0.5 mA @ 50/60 Hz, 264 Vac input
SAFETY
TUV
60950
11774-3336-1241
(LC#84936)
cUL
60950
CSA
CSA 22.2-234 Level 3
LR53982C
NEMKO EN 60950/EMKO-TUE
P95100442 (74-sec) 203
CB
Certificate and report
1577, 1578, 1579, 1580
CE Mark (LVD)
LPS25 Series Data Sheet
Environmental Specifications
Operating temperature
Storage temperature
Electromagnetic susceptibility
Humidity
Vibration
MTBF demonstrated
0° to 50°C ambient. Derate each output 2.5% per degree from 50° to 70°C, -20°C start up.
-40°C to +85°C
Designed to meet IEC 801, -2, -3, -4, -5, -6, Level 3
Operating; non-condensing 5% to 95% RH
Three orthogonal axes, sweep at 1 oct/min, 5 min. dwell at four major resonances 0.75 G peak 5 Hz
to 500 Hz, operational
>550,000 hours at full load and 25°C ambient conditions
Ordering Information
Model Number
LPS22
LPS23
LPS24
LPS25
1.
2.
3.
4.
Output
Voltage
5V
12V
15V
24V
Minimum
Load
0A
0A
0A
0A
Maximum Load with Maximum Load with
Convection Cooling 30CFM Forced Air
5A
2.1A
1.7A
1.1A
8A
3.3A
2.7A
1.8A
Peak Load
1
9A
3.7A
3A
1.9A
Regulation
2
±2%
±2%
±2%
±2%
Ripple
P/P (PARD)
3
50 mV
120 mV
150 mV
240 mV
Peak current lasting <30 seconds with a maximum 10% duty cycle.
At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
Peak-to-peak with 20 MHz bandwidth and 10 μF in parallel with a 0.1 μF capacitor at rated line voltage and load ranges.
This product is a Component Power Supply and is only for inclusion by professional installers within other equipment and must not be operated
as a standalone product. EMC compliance to appropriate standards must be verified at the system level. This product is for sale to OEMs and
System Integrators, including through Distribution Channels. It is not intended for sale to End Users.

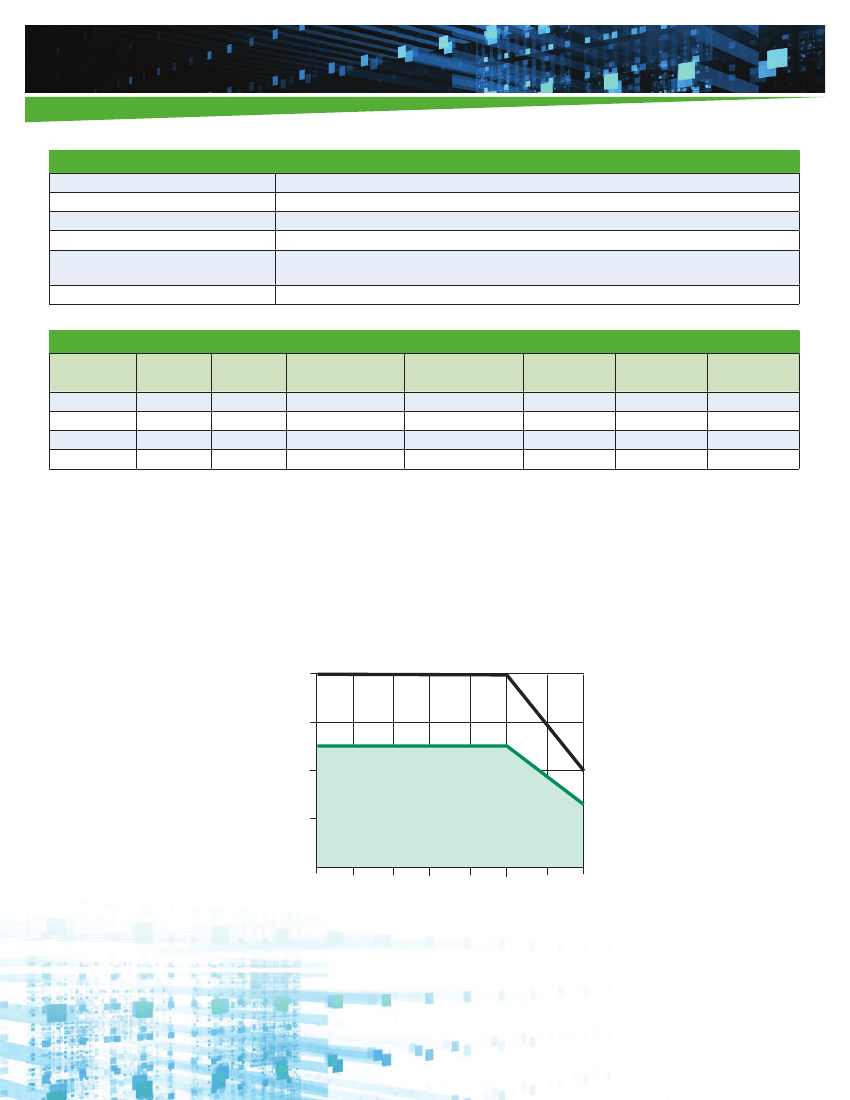

Power Derating Curve
40W
30 CFM Forced Air Cooling
30W
Output
Power
25W
(Watts)
20W
10W
0W
Natural
Convection
Cooling
20W
12.5W
0°C 10°C 20°C 30°C 40°C 50°C 60°C 70°C
TA – Ambient Temperature – °C
LPS25 Series Data Sheet

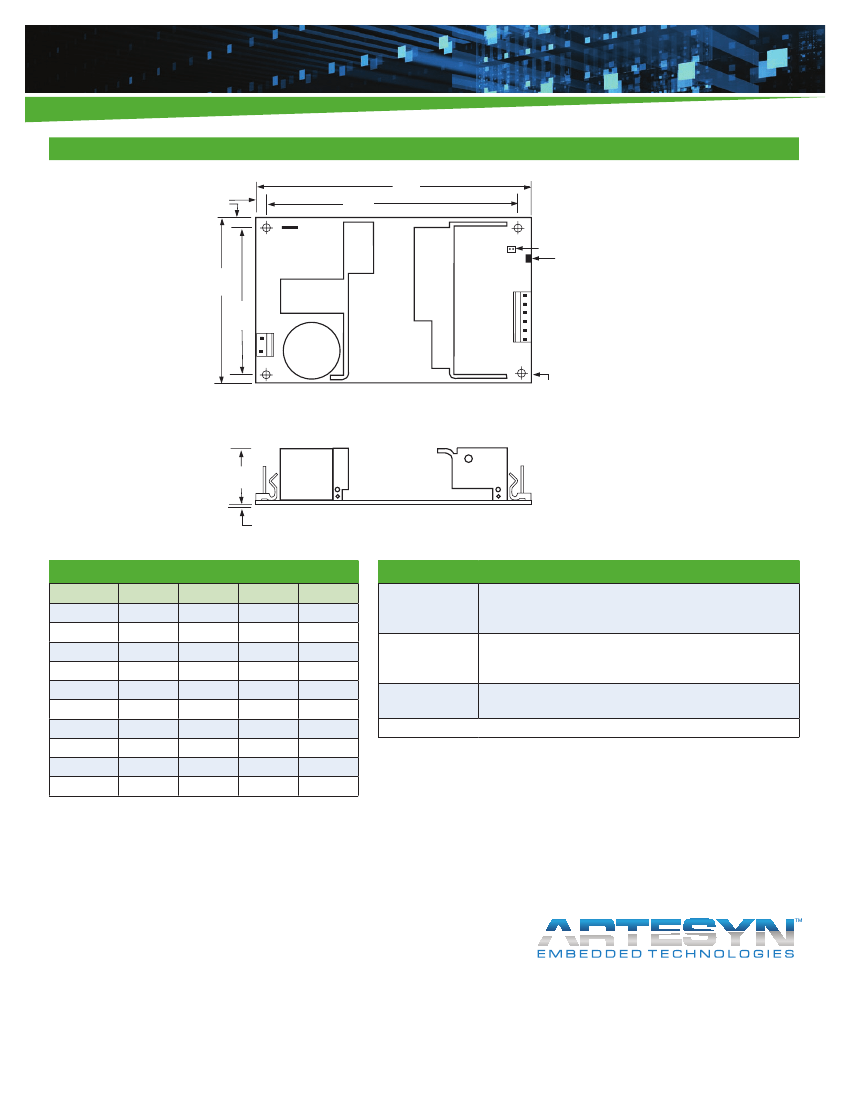

Mechanical Drawing
0.22"
(5.6)
M1 GND
4.55"
(115.6)
5.00"
(127)
SK201
_+
1
2
3
4
5
6
M2
3.00"
(76.2)
2.55"
(64.8)
3
1
Remote Sense
Connector
Voltage
Adj. Pot
SK 2
SK 1
N
L
0.15" (4)
DIA (4 places)
1.14"
(29)
0.197"
(5)
Pin Assignments
Connector LPS22
SK1-1
SK1-3
SK2-1
SK2-2
SK2-3
SK2-4
SK2-5
SK2-6
SK201-1
SK201-2
Line
Neutral
+5 V
+5 V
+5 V
Common
Common
Common
+Sense
-Sense
LPS23
Line
Neutral
+12 V
+12 V
+12 V
Common
Common
Common
+Sense
-Sense
LPS24
Line
Neutral
+15V
+15V
+15V
Common
Common
Common
+Sense
-Sense
LPS25
Line
Neutral
+24V
+24V
+24V
Common
Common
Common
+Sense
-Sense
Mating Connectors
AC Input
Molex 09-50-8031 (USA)
09-93-0300 (UK)
PINS: 08-52-0113
Molex 09-50-8061 (USA)
09-93-0600(UK)
PINS: 08-52-0113
Molex 22-01-2025
PINS: 08-52-0123
DC Outputs
Remote Sense
Astec Connector Kit #70-841-006, includes all of the above
1.
2.
3.
4.
5.
Specifications subject to change without notice.
All dimensions in inches (mm), tolerance is ±0.02” (±0.5mm)
Mounting holes M1 and M2 should be grounded for EMI purposes.
Mounting hole M1 is safety ground connection.
Specifications are for convection rating at factory settings at 115 VAC input,
25°C unless otherwise stated.
6. Warranty: 2 year
7. Weight: 0.5lbs/0.23kg
WORLDWIDE OFFICES
Americas
2900 S.Diablo Way
Tempe, AZ 85282
USA
+1 888 412 7832
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
+44 (0) 1384 842 211
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
+852 2176 3333
www.artesyn.com
For more information:
www.artesyn.com/power
For support:
productsupport.ep@artesyn.com
LPS25 Series-DS 18Mar2016
Artesyn Embedded Technologies, Artesyn and the Artesyn Embedded Technologies logo are trademarks and
service marks of Artesyn Embedded Technologies, Inc. All other names and logos referred to are trade names,
trademarks, or registered trademarks of their respective owners. © 2016 Artesyn Embedded Technologies, Inc.
All rights reserved. For full legal terms and conditions, please visit www.artesyn.com/legal.
