34691-0080 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34691-0080

34691-0080: DescriptionAutomotive Connectors CTX64 RCPT TERM ST SN L DWIND MS GEN; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

34691-0080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34691-0080	-	-	View	Buy Now

34691-0080 Overview

Automotive Connectors CTX64 RCPT TERM ST SN L DWIND MS GEN

34691-0080 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	MOLEX - 34691-0080 - HEADER, STAC64, R/A, POL A, 8WAY
Board mount options	PEG
body width	0.868 inch
body length	0.74 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	60.048 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
reliability	COMMERCIAL
Shell material	THERMOPLASTIC
Terminal length	0.119 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Evacuation force-minimum value	75.616 N
Base Number Matches	1

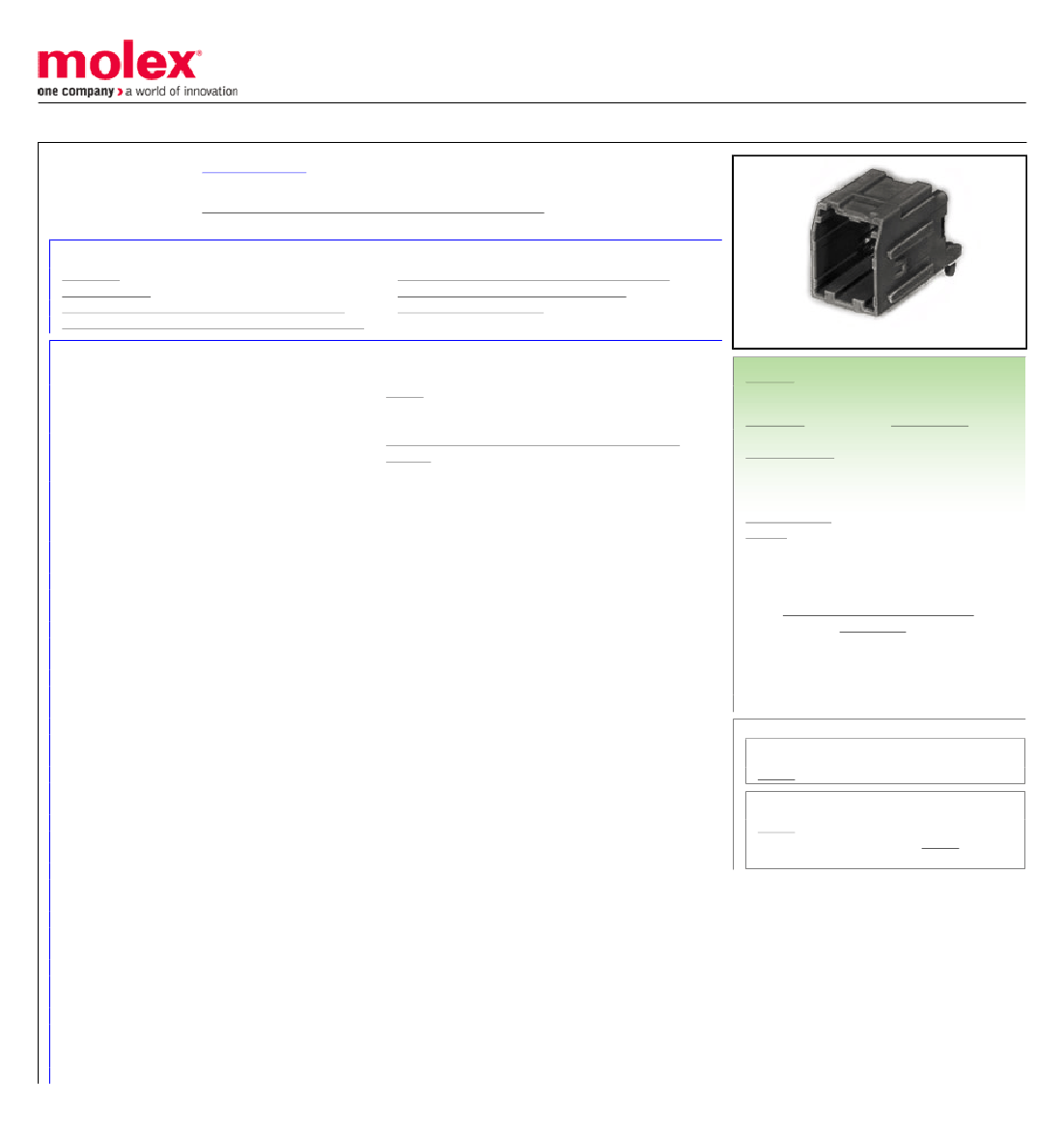

Preview

Download Datasheet

View All

This document was generated on 11/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0346910080

Active

Stac64™ Single, Multi-Pocket and Hybrid Header System

Stac64 Right Angle Header Assembly, 8 Circuits, Polarization A, Black, Tray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34729-020-001 (PDF)

Application Specification AS-34729-020-001 (PDF)

General

Product Family

Series

Application

Comments

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Packaging Specification PK-31300-892 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

PCB Headers

34691

Power, Wire-to-Board

Polarization A

Stac64™ Single, Multi-Pocket and Hybrid Header

System

987650-4561

Stac64

800756894263

Black

None

Yes

Brass

Tin

High Temperature Thermoplastic

5.136/g

Right Angle

3.36mm

Yes

None

1.57mm

Tray

2.54mm

Yes

-40°C to +105°C

Through Hole

10.0A

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Search Parts in this Series

34691 Series

Mates With

34729 2.54mm (.100") Pitch Stac64

Receptacle Assembly <br> 31408 USCAR

2.54mm (.100”) Pitch Receptacle

34691-0080 Related Products

	34691-0080	0346910080
Description	Automotive Connectors CTX64 RCPT TERM ST SN L DWIND MS GEN	Automotive Connectors STAC64 HDR 08P RA POL A
