5-6450550-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-6450550-5

5-6450550-5: Description(5-6450550-5) MBXL VERT RCPT 4P+24S+5P; CategoryThe connector The connector; File Size3MB，23 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-6450550-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6450550-5	-	-	View	Buy Now

5-6450550-5 Overview

(5-6450550-5) MBXL VERT RCPT 4P+24S+5P

5-6450550-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1666340467
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.5 inch
body length	3.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	33
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

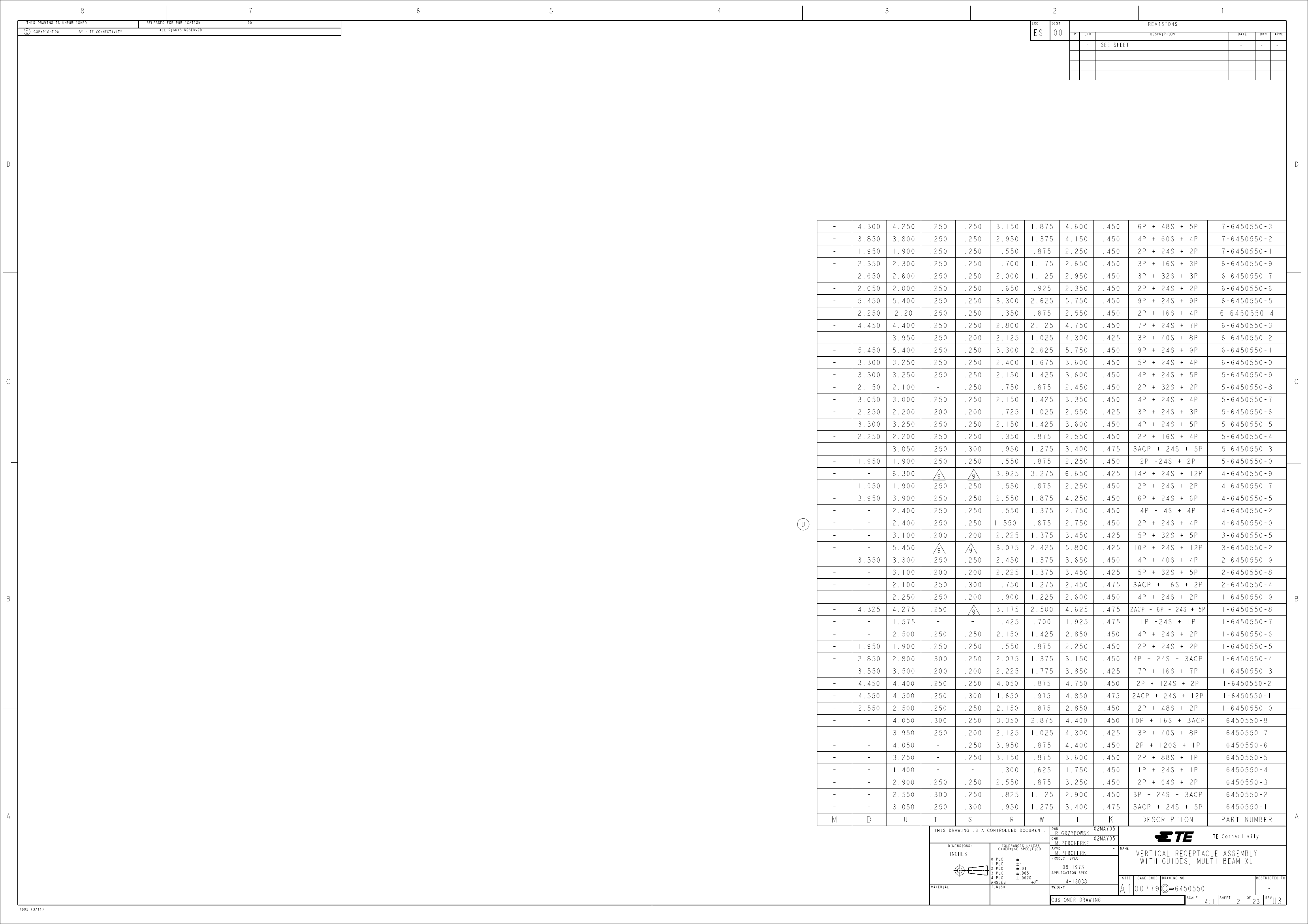

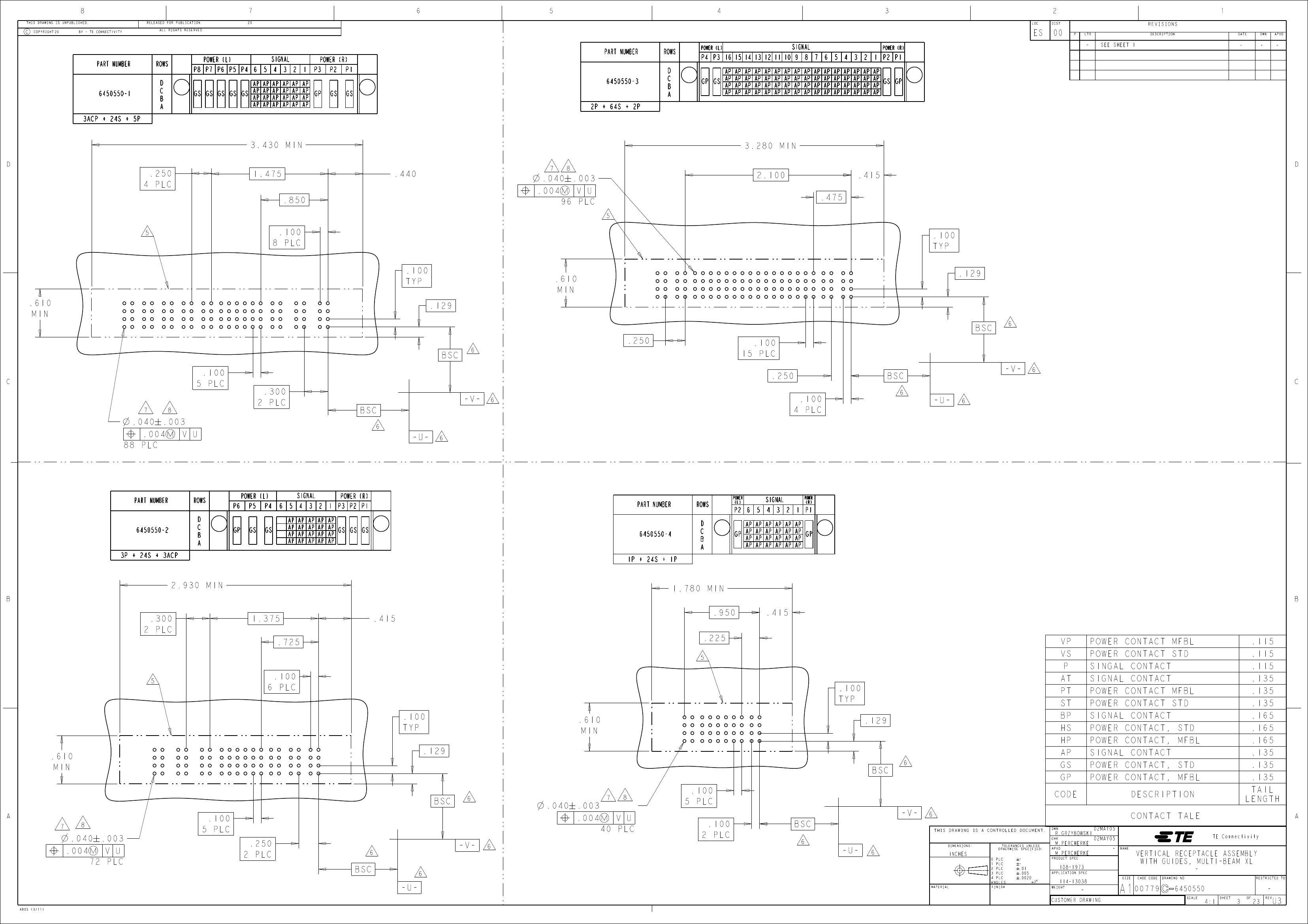

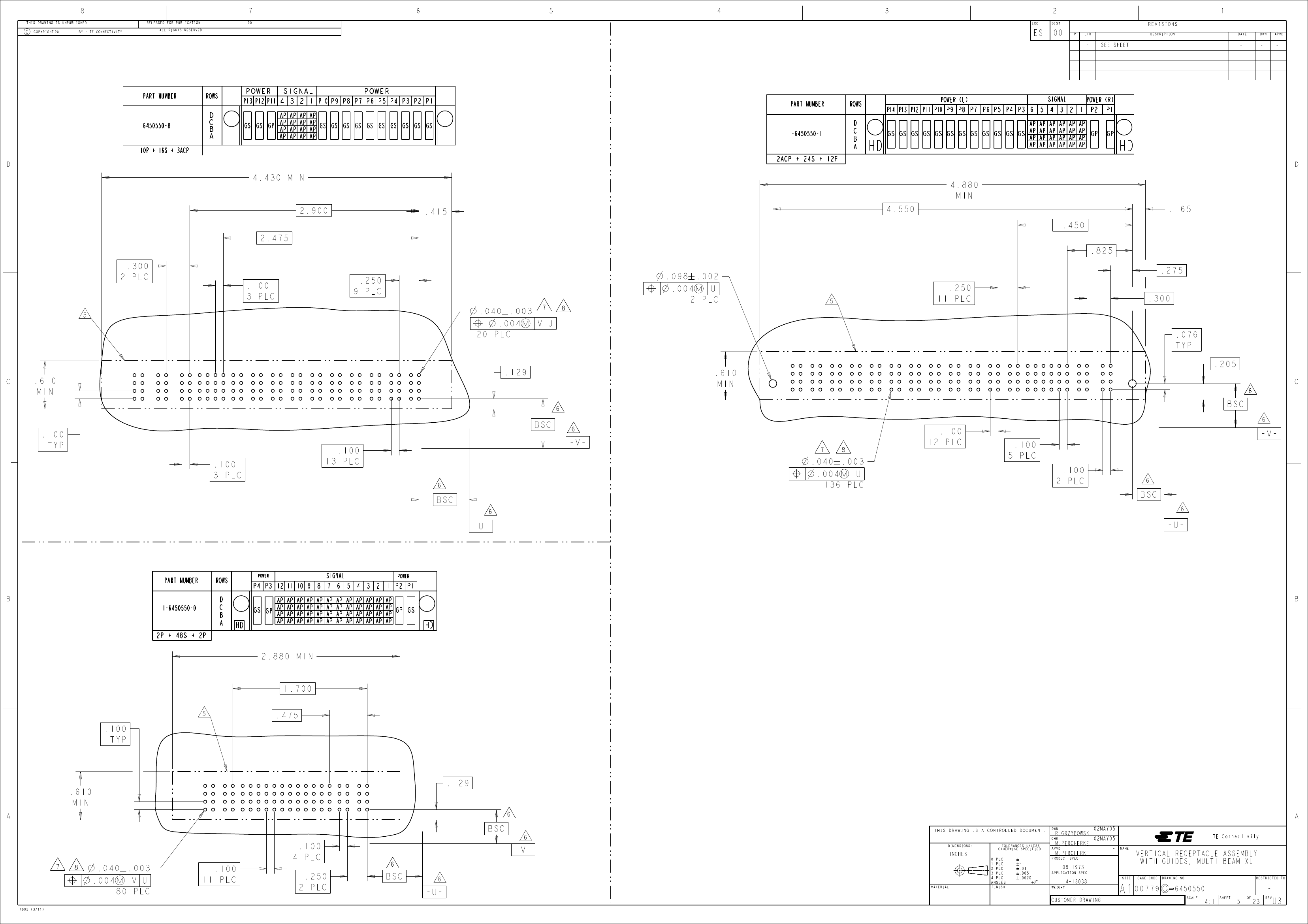

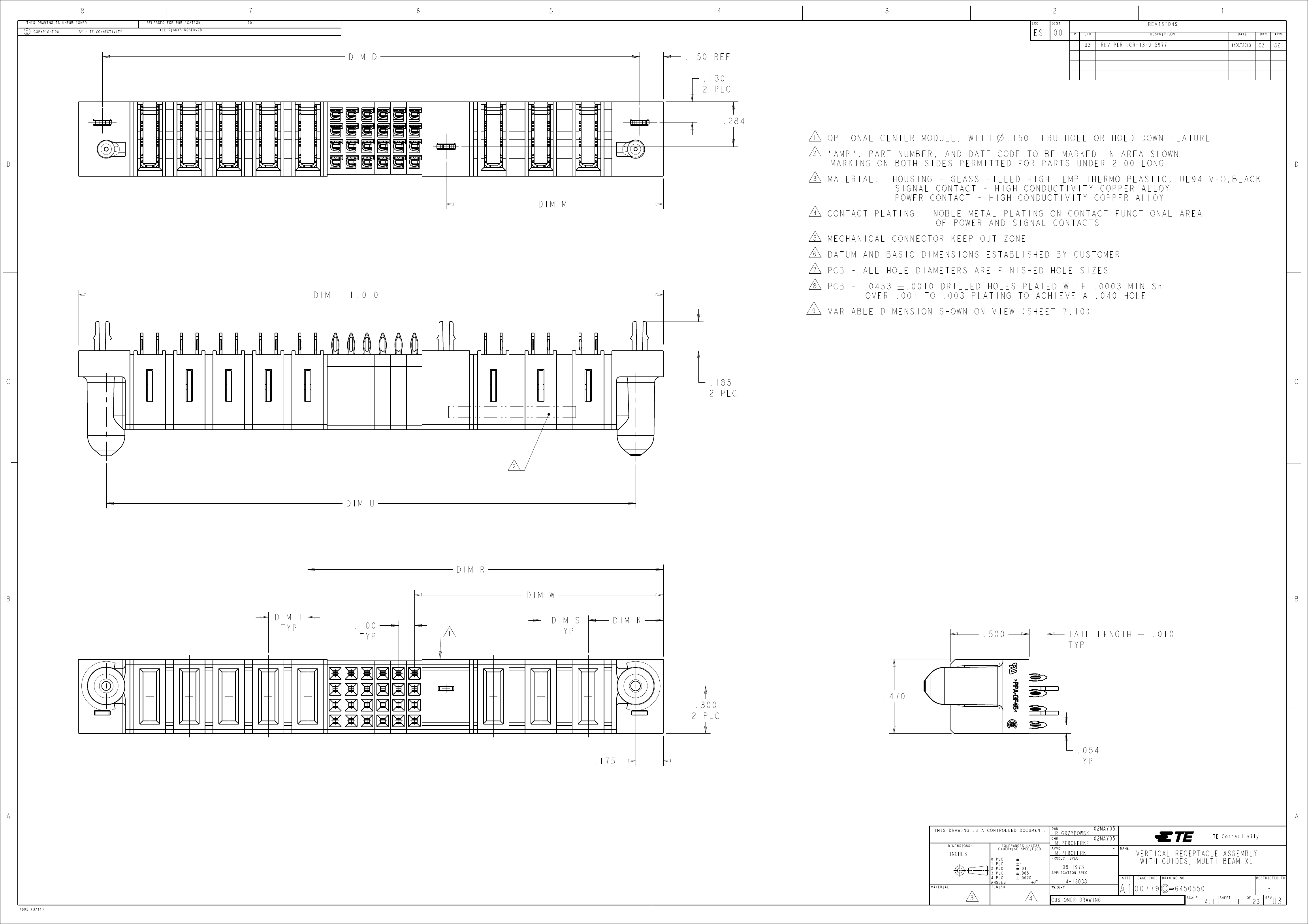

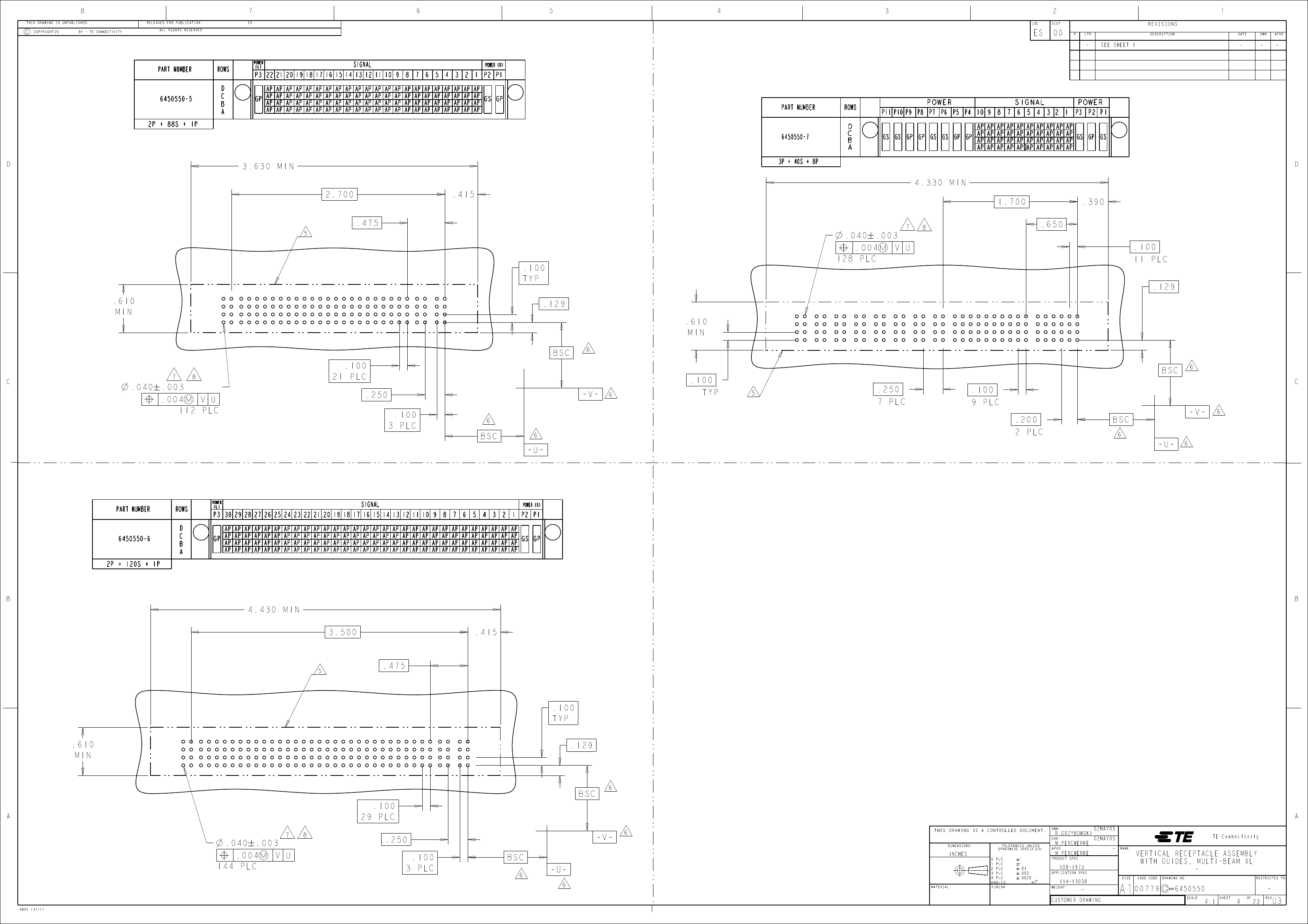

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

DIM D

.150

REF

REV PER ECR-13-015977

14OCT2013

.130

2 PLC

.284

OPTIONAL CENTER MODULE, WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE

"AMP", PART NUMBER, AND DATE CODE TO BE MARKED IN AREA SHOWN

MARKING ON BOTH SIDES PERMITTED FOR PARTS UNDER 2.00 LONG

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O,BLACK

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

DIM M

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 PLATING TO ACHIEVE A .040 HOLE

VARIABLE DIMENSION SHOWN ON VIEW (SHEET 7,10)

DIM L

.185

2 PLC

DIM U

DIM R

DIM W

DIM T

TYP

.100

TYP

DIM S

TYP

DIM K

.500

TAIL LENGTH

TYP

.010

.300

2 PLC

.470

.175

.054

TYP

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

R.GRZYBOWSKI

M.PERCHERKE

108-1973

02MAY05

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

4805 (3/11)

CUSTOMER DRAWING

00779

SIZE

VERTICAL RECEPTACLE ASSEMBLY

WITH GUIDES, MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

6450550

SCALE

4:1

SHEET

REV
