NJU8721
PRELIMINARY
CLASS D HEADPHONE AMPLIFIER FOR DIGITAL AUDIO
!

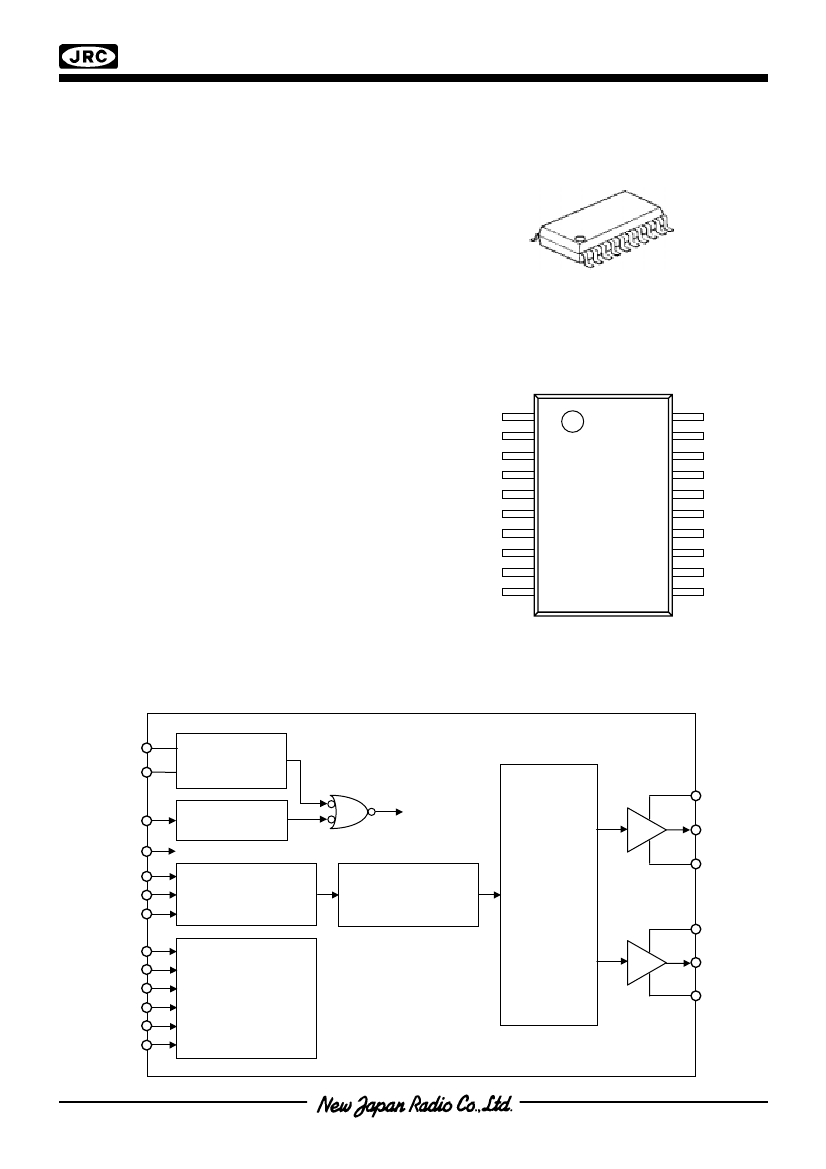

GENERAL DESCRIPTION
The
NJU8721
is a class D Headphone Amplifier
th
featuring 6
∆Σ
modulation.
It includes Digital
Attenuator, Mute, and De-emphasis circuits.
It
converts Digital source input to PWM signal output
which is output PWM signal converted to analog
signal with simple external LC Filter. The
NJU8721
realizes very high power-efficiency by class D
operation. Therefore, it is suitable for portable audio
set and others.
!
PACKAGE OUTLINE
NJU8721V
!
FEATURES
#
Stereo Headphone Power Amplifier
: 50mW+50mW
#
Sixth-order 32f
S
Over Sampling
∆Σ
& PWM
#
Internal 8f
S
Over Sampling Digital Filter
#
Sampling Frequency : 96kHz (Max.)
#
De-Emphasis
: 32kHz, 44.1kHz, 48kHz
#
System Clock
: 256f
S
#
Digital Processing
: Attenuator 107step, LOG Curve
: Mute
#
Digital Audio Interface : 16bit, 18bit
2
: I S, LSB Justified, MSB Justified
#
Operating Voltage
: 3.0 to 3.6V
#
Driving Voltage
: V
DD
to 5.25V
#
C-MOS Technology
#
Package Outline
: SSOP20
!
PIN CONFIGURATION
STBY
TEST
V
SSR
OUT
R
V
DDR
V
DDL
OUT
L
V
SSL
MODE
RST
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
DD
F0/DATA
F1/REQ
F2/SCK
MUTE
DIN
LRCK
BCK
MCK
V
SS
!
BLOCK DIAGRAM
V
DD
V
SS
RST
MCK
LRCK
BCK
DIN
MUTE
STBY
MODE
F0/DATA
F1/REQ
F2/SCK
Power On
Reset Circuit
V
DDL
Synchronization
Circuit
Serial
Audio Data
Interface
8f
S
Over Sampling
Digital Filter
32f
S
6
∆Σ
&
PWM
th
OUT
L
V
SSL
V
DDR
OUT
R
System
Control
V
SSR
-1-
NJU8721
!
TERMINAL DESCRIPTION
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
SYMBOL
STBY
TEST
V
SSR
OUT
R
V
DDR
V
DDL
OUT
L
V
SSL
MODE
RST
V
SS
MCK
BCK
LRCK
DIN
MUTE
F2/SCK
F1/REQ
F0/DATA
V
DD
I/O
I
I
−
O
−
−
O
−
I
I
−
I
I
I
I
I
I
I
I
−
FUNCTION
Standby Control Terminal
Low : Standby ON
High : Standby OFF
Manufacturer Testing Terminal
Normally connect to GND.
Rch Power GND, V
SSR
=0V
Rch Output Terminal
Rch Power Supply, V
DDR
=V
DD
to 5.0V
Lch Power Supply, V
DDL
=V
DD
to 5.0V
Lch Output terminal
Lch Power GND, V
SSL
=0V
Control Mode selection Terminal
Low : Parallel Control Mode
High : Serial Control Mode
Reset Terminal
Low : Reset ON
High : Reset OFF
Logic Power GND, V
SS
=0V
Master Clock Input Terminal
256f
S
clock inputs this terminal.
Serial Audio Data Bit Clock Input Terminal
This clock must synchronize with MCK input signal.
L/R Channel Clock Input Terminal
This clock must synchronize with MCK input signal.
Serial Audio Data Input Terminal
Mute Control Terminal
Low : Mute ON
High : Mute OFF
MODE=”Low”
: Serial Audio Interface Format Selection Terminal 2
MODE=”High”
: Control Register Data Shift Clock Input Terminal
The data is fetched into the control register by rise edge of SCK
signal.
MODE=”Low”
: Serial Audio Interface Format Selection Terminal 1
MODE=”High”
: Control Register Data Request Input Terminal
MODE=”Low”
: Serial Audio Interface Format Selection Terminal 0
MODE=”High”
: Control Register Data Input Terminal
Logic Power Supply, V
DD
=3.3V
!
INPUT TERMINAL STRUCTURE
V
DD
Input Terminal
V
SS
Inside Circuit
-2-
NJU8721
!
FUNCTIONAL DESCRIPTION
(1) Signal Output
PWM signals of L channel and R output from OUT
L
and OUT
R
terminals respectively. These signals are
converted to analog signal by external 2nd-order or over LC filter. The output driver power supplied from V
DDL
,
V
DDR
, V
SSL
, and V
SSR
are required high response power supply against voltage fluctuation like as switching
regulator because Output THD is effected by power supply stability.
(2) Master Clock
Master Clock is 256f
S
clock into MCK terminal for the internal circuit operation clock.
(3) Reset
“L” level input over than 3ms to the RST terminal is initialization signal to initialize the internal circuit. This
initialization signal is synchronized with internal clock and executes logical OR with the internal power on reset
signal. This Reset signal initializes the internal function setting registers also. During initialization, the
output-drivers output GND level. The reset equivalent circuit is shown bellow.
RST
Power on Reset
CLK
(About 10kHz)
Internal Reset
D
D
D
D
D
D
D
D
Figure 1. Reset Equivalent Circuit
(4) 8f
S
Over Sampling Digital Filter
8f
S
Over Sampling Digital Filter interpolates
Audio data and decreases aliasing noise.
It realizes Attenuation and De-Emphasis function by serial function control.
(5) 32f
S
6
∆Σ
& PWM
th
32f
S
6
∆Σ
& PWM convert from Audio data of the 8f
S
Over Sampling Digital Filter to the 32f
S
one bit PWM
data.
th
-3-
NJU8721
(6) System Control
(6-1) Standby
Standby functions by “L” level input to the STBY terminal. In busy of Standby, conditions of digital audio
format set, attenuation level, de-emphasis, and attenuator operation time are kept and output terminals of
OUT
L
and OUT
R
are high-impedance.
(6-2) Control Mode Set
A control mode as shown below is selected by the MODE terminal.
MODE
0
1
Parallel
Serial
Control Method
Parallel
Serial
Function
Digital Audio interface Format Set
Control Register serial data input
Terminals
F0, F1, F2
DATA, REQ, SCK
: Digital Audio Interface Format is set directly by using F0, F1, and F2 terminals.
:
NJU8721
is controlled serial input data by 3-wire serial interface using DATA, REQ, and
SCK terminals
By this setting, the function of F0/DATA, F1/REQ, and F2/SCK are changed.
Refer to
(8-5)F0,F1,F2
about function of F0, F1, and F2 terminals.
Refer to
(8)Control Register
about function of DATA, REQ, and SCK terminals.
(6-3) Mute
Mute functions by “L” signal into the MUTE terminal. In busy of mute, a current attenuation value
becomes -∞ by internal digital attenuator. And MUTE is stopped by “H” signal into the MUTE terminal, the
attenuation value returns from -∞ to previous value.
MUTE
0
1
Attenuation Level
-∞
Set Value
MUTE
MCK
Attenuation Value
Set Value
-∞
Figure 2. Mute Timing
-∞
1024/f
S
1024/f
S
Set Value
-4-
NJU8721
(7) Serial Audio Data Interface
(7-1) Input Data Format Selection
2
The digital audio interface format is selected out of I S, MSB Justified or LSB Justified, and 16 bits or 18
bits data length.
(7-2) Input Timing
Digital audio signal data into DIN terminal is fetched into the internal shift register by BCK signal rising
edge. The fetched data in the shift register are transferred by rising edge or falling edge of LRCK as
shown below:
Data Format
2
IS
MSB Justified
LSB Justified
Rising Edge
Lch Input Register
Rch Input Register
Rch Input Register
Falling Edge
Rch Input Register
Lch Input Register
Lch Input Register
BCK and LRCK must be synchronized with MCK.
LRCK
BCK
DIN
Left Channel
Right Channel
15 14 13
1
0
2
15 14 13
1
0

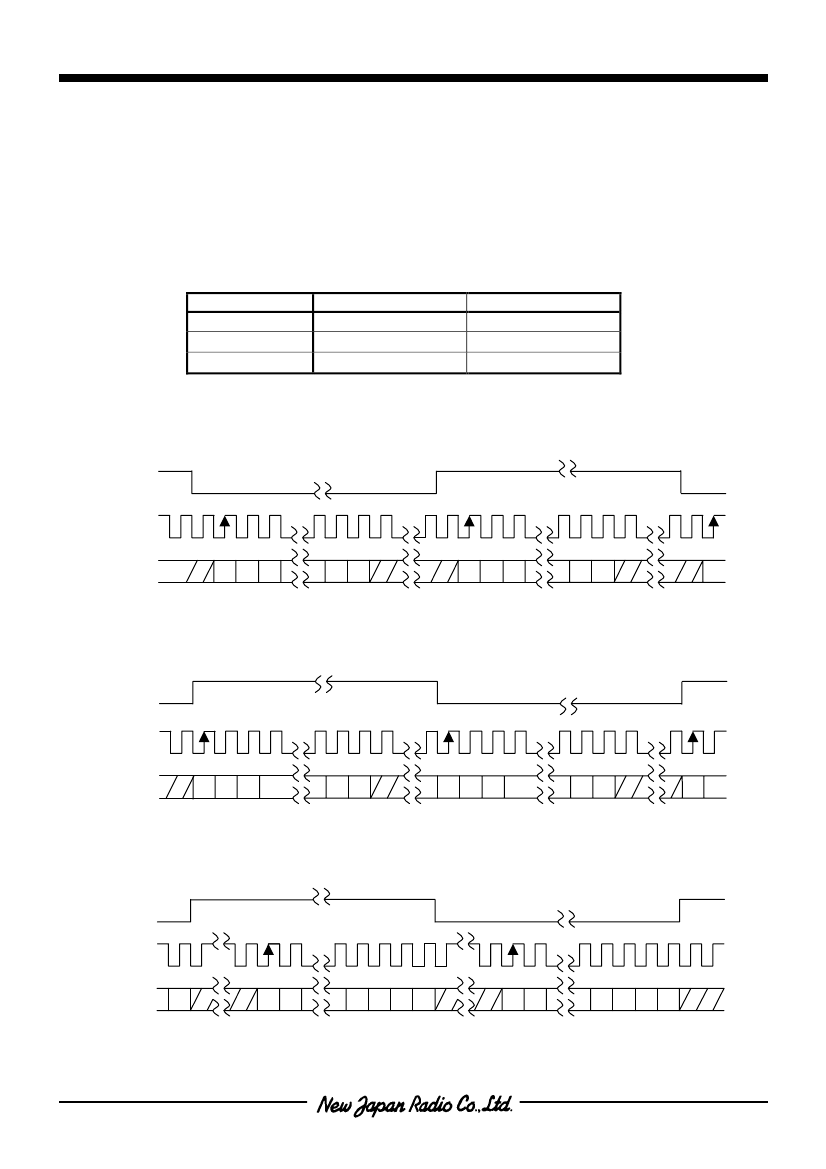

Figure 3.1. 16 bits I S Data Format
Right Channel
LRCK
BCK
DIN
15 14 13
1 0
15 14 13
1
0
15
Left Channel
Figure 3.2. 16 bits MSB Justified Data Format
LRCK
BCK
DIN
0
Right Channel
Left Channel
15 14
3
2
1
0
15 14
3
2
1
0
Figure 3.3. 16 bits LSB Justified Data Format
-5-
