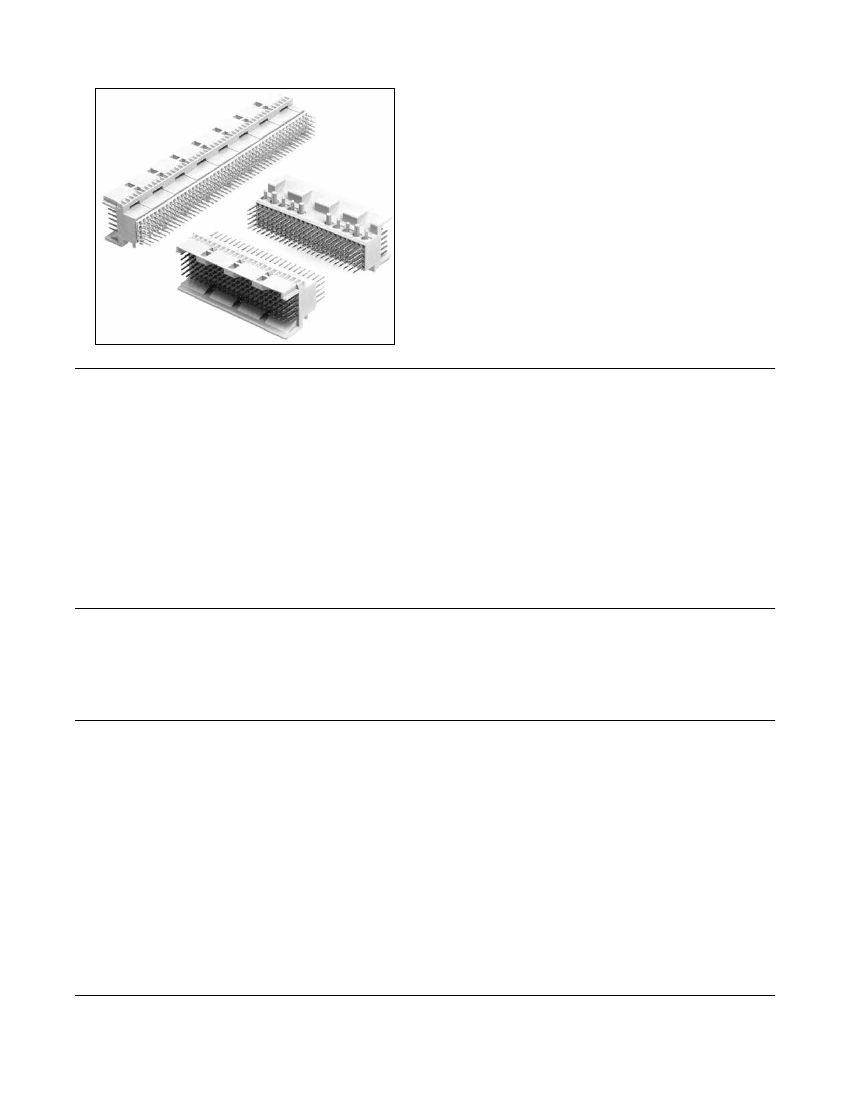

3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Stacking, Solder or Press-Fit Tail
•
•
•
•
•
•
MP2 Series
16 mm to 18.5 mm high-profile stacking
Pin counts up to 300
Footprint compatible with standard Futurebus+
®
Ideal for hot swapping applications
End-to-end stackable
Mates with MP2-R Series for parallel stacking
applications
• See the Regulatory Information Appendix (RIA)
in the “RoHS compliance” section of
www.3Mconnectors.com for compliance
information (RIA E1 & C1 apply)
Date Modified: September 17, 2013
TS-1123-C
Sheet 1 of 4
Physical
Insulation:
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 µ" [1.27 µm] Nickel
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Current Rating:
Signal: 1.5 A – All contacts simultaneously
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1000 V
AC
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
MetPak is a trademark of 3M Company.
Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Stacking, Solder or Press-Fit Tail

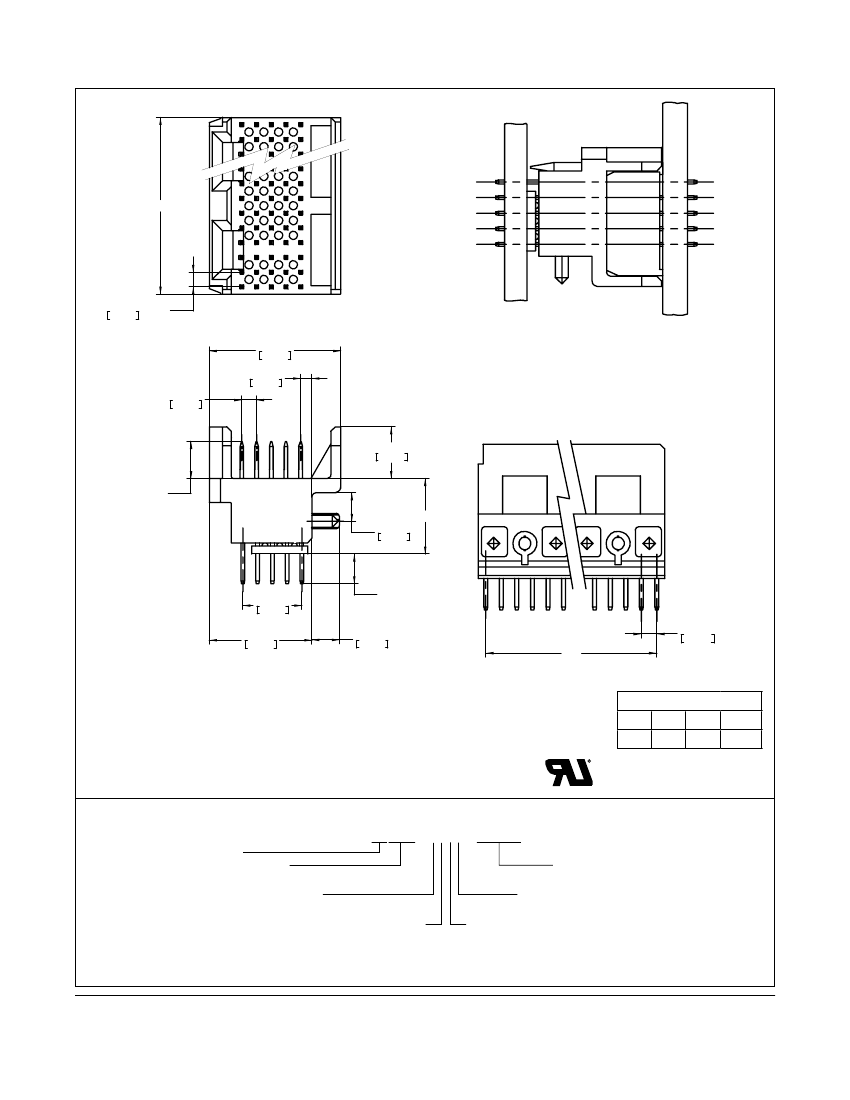

POSITION 1
POSITION 2
MP2 Series
"A"
POSITION X
2.00
.079
TYP.
E D C B A
ROW
17.80
.701
2.00
.079
4X
1.50
.059
MATED WITH MP2-RXXX-5XXX-XXXX
7.00
.276
"C"
MATE LENGTH
3.86
.152
"E"
8.00
.315
13.90
.547
"D" ±.20
TAIL LENGTH
3.75
.148
"B"
2.00
.079
mm
[inch]
TYP.
Tolerance Unless Noted
Notes:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection
with a plated through-hole (PTH) in a printed circuit board, typically a “back plane.”
3. For special stack heights, tail lengths or pin arrangements, contact 3M.
0
mm
±3
0.0
±0.3
0.00
±0.13
[ ] Dimensions for Reference
Only
Ordering Information
MP2 - PSXXX - 51X1 - XXXXX
PS = Header, Inversed
Stacking
Pin Count
(See Table 1)
Rows
5 = 5 Rows
Contact Loading
(See Table 2)
Plating Options
(See Table 3)
Tail Length
(See Table 2)
Termination Style
S = Solder Tail
P = Press-Fit
TS-1123-C
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Stacking, Solder or Press-Fit Tail
MP2 Series
Table 1 - Connector & Row Lengths
Pin Count
030
060
090
120
150
180
210
240
270
300
Dim. “A”
mm [inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
107.95 [4.251]
119.95 [4.722]
Dim “B”
mm [inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
106.00 [4.173]
118.00 [4.646]
Rows
5
5
5
5
5
5
5
5
5
5
Table 2
Contact-to-PC Board Tail
Termination Option No.
Solder Tail
1
1
Press-Fit* Tail
4.65 [0.183]
5.00 [0.197]
4.15 [0.163]
3.95 [0.156]
10.25 [0.404]
10.25 [0.404]
Dim. “C”
Dim. “D”
Dim. “E”
Table 3 - Plating
Plating Suffix
KR
Press-Fit Tails*
(RIA E1 & C1 apply)
Solder Tails
(RIA E1 & C1 apply)
Plating Composition
0.76 µm [30 µ”] Min. Au Contact Area
2.54 µm [100 µ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ”] Min. Ni all over
0.08 µm [3 µ”] Min. Au Contact Area
0.67 µm [27 µ”] Min. PdNi Contact Area
2.54 µm [100 µ”] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ”] Min. Ni all over
LR
(RIA E1 & C1 apply)
(RIA E1 & C1 apply)
*Compliant-Pin Tail
TS-1123-C
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Inverse Header
2 mm 5-Row, Stacking, Solder or Press-Fit Tail
MP2 Series
2.00
.079
TYP.
"D" PLATED THRU HOLE
Ø
0.10
A1
"B"
2.00
.079
4X
8.00
.315
RECOMMENDED PCB HOLE MOUNTING PATTERN
Table 4 - HOLE PLATING FINISHES
HOLE
Finished Dia.
MM [in]
0.700-0.800
[.0276-.0315]
Cu Thickness [mm
[in]
0.025-0.045
[0.001-0.002]
Immersion Matte
Sn Thickness
microns [µ”]
0.5 - 2.5
[20 - 100]
Electrolytic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ”]
0.2 - 0.5
[8 - 20]
Drilled Hole
Dia. mm [in]
0.830-0.860 [.0330-
.0340] or 0.85 mm
[#66] TWIST DRILL
“D”
TS-1123-C
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M is a trademark of 3M Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2013. All rights reserved.
RIA-2217B-E
