747844-2

Description
09 MSFL RCPT RA 318 (FM,BL)
CategoryThe connector    The connector

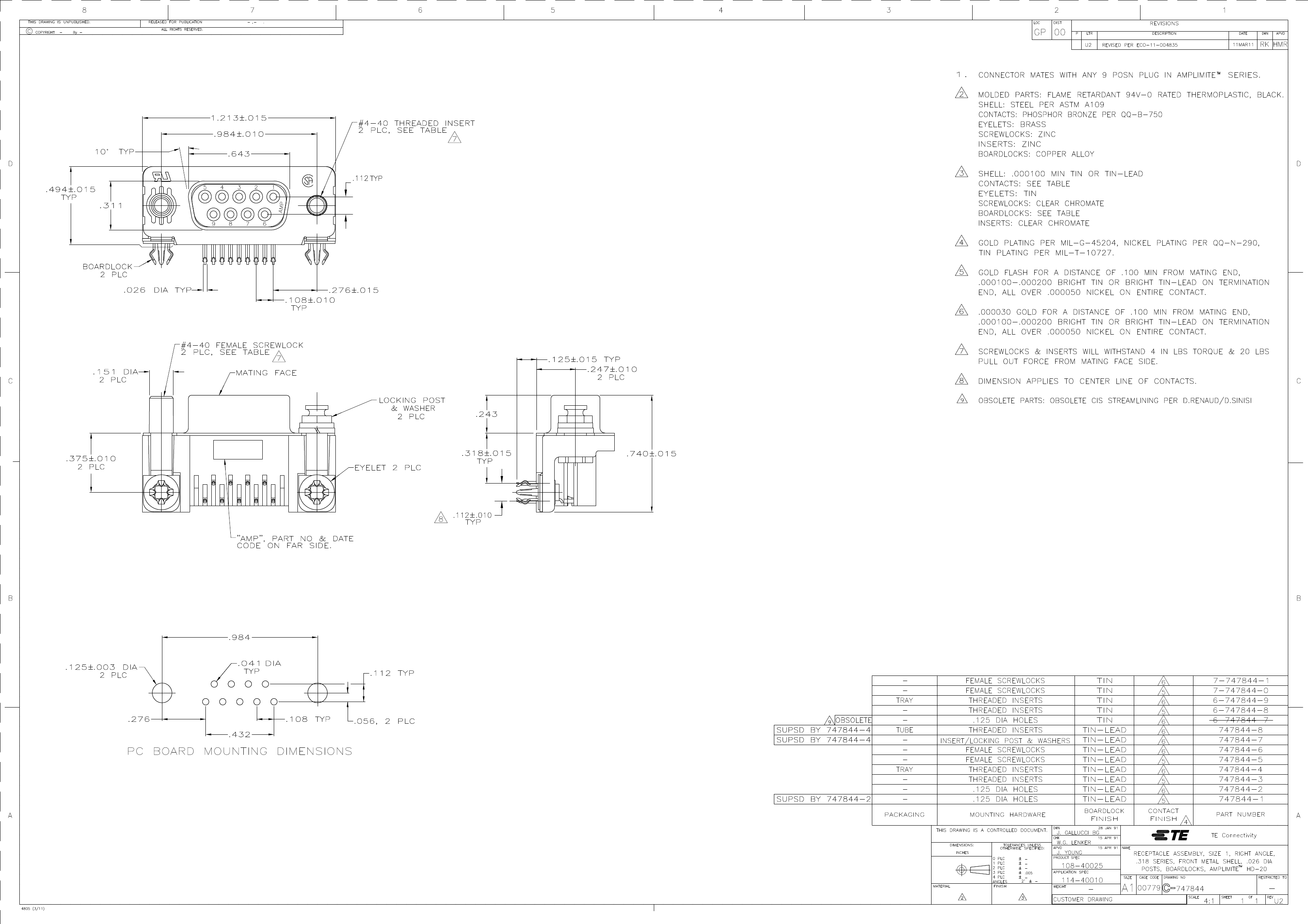

File Size142KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

747844-2 Online Shopping

Suppliers Part Number Price MOQ In stock
747844-2 - - View Buy Now

747844-2 Overview

09 MSFL RCPT RA 318 (FM,BL)

747844-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1504396238
Reach Compliance Codecompliant
Country Of OriginMexico
ECCN codeEAR99
Factory Lead Time18 weeks
Samacsys Description9 Position D-Sub Receptacle, Female Sockets Connector
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2023-03-07 16:10:32
YTEOL6.38
Other featuresAMPLIMITE
Board mount optionsBOARD LOCK
body width0.494 inch
subject depth0.497 inch
body length1.213 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Electromagnetic interference shieldingYES
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYETHYLENE
MIL complianceNO
Power Connector Ratings6A
Match contact row spacing0.112 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .125-.137
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of ports1
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Panel mountingNO
Plating thickness30u inch
Rated current (signal)6 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialZINC ALLOY
Housing size1/E
Terminal length0.125 inch
Terminal pitch2.74 mm
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Evacuation force-minimum value2.224 N
