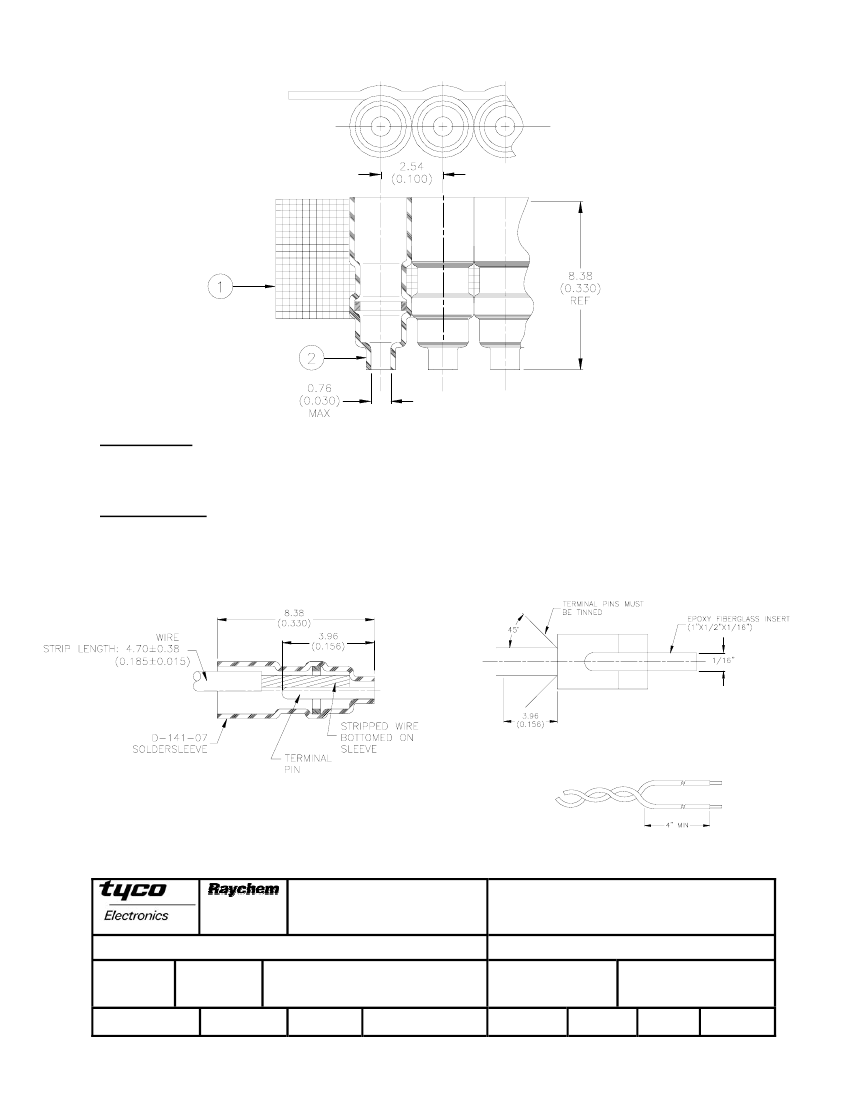

SPECIFICATION CONTROL DRAWING
MATERIALS
1. SOLDERSLEEVE: D-141-07. Quantity Per Assembly: 1000
2. CARRIER STRIP: Adhesive Coated High Temperature Tape
APPLICATION
1. This part is designed for used on Cinch “Tykon” miniature connector 255-20-30-200.
2. Sleeves are to be installed using Rayclad AD-1309 wire assembly fixture and IR-1005 infrared heater.
3. The carrier strip is to be removed upon completion of termination.
Sleeve and Terminal Assembly
Terminal Configuration
Untwist and Straighten Length
Tyco Electronics Corporation
300 Constitutional Drive
Menlo Park, CA 94025 USA
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
Tyco reserves the right to amend this drawing at any
ANGLES: N/A
TOLERANCES:
time. Users should evaluate the suitability of the
0.00 N/A
product for their application.
ROUGHNESS IN
0.0 N/A
MICRON
0 N/A
DRAWN BY:
CAGE CODE:
REPLACES:
DCR NUMBER:
TITLE:
SOLDERPAK ASSEMBLY,
CINCH “TYKON” SERIES
255-XX-30-200 ALTERNATE PINS
DOCUMENT NO.:
DATE:
D-711-00
DOC ISSUE:
18-July-00
PROD. REV.:
SCALE:
SIZE:
1
SHEET:
M. FORONDA
06090
N/A
D000403
D
None
A
1 of 1
If this document is printed it becomes uncontrolled. Check for the latest revision.
