374853: DescriptionDIN 41612 Connectors 48P 2.54MM VERT MALE TYPE R/2 2.5MM THR; CategoryThe connector The connector; File Size64KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374853 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374853	-	-	View	Buy Now

374853 Overview

DIN 41612 Connectors 48P 2.54MM VERT MALE TYPE R/2 2.5MM THR

374853 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

47,4

-0,2

Anforderungsstufe

Datum

class

date

Stecklänge

mating length

2,9

-0,3

Stecklänge / mating length

ESL

2,5

±0,2

6,4

-0,1

max.12,6

max.11,6

5,2

-0,1

2,54

15x2,54=38,1

max.55

0,6

2,54

2x2,54=5,08

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

Verpackt im Gurt in Anlehnung an DIN IEC 60286-3

44,6

+0,2

tape on reel packaging according to DIN IEC 60286-3

Verpackungseinheit: 120 Stück

2,8

+0,1

packaging unit: 120 pcs

1

a1

4,8

±0,2

0,8

±0,1

0,8

±0,1

a16

max11,1

6

+0,1

c16

50

c1

2,5

-0,2

8,7

150

330

Abspulrichtung -

Reel off Direction

72

Bestückungsplan /

contact layout

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S S S S S S S

a

b

c

THR =

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

+0,1

1

±0,1

Copyright by ERNI Production GmbH & Co. KG

Proprietary notice pursuant to ISO 16016 to be observed.

0,3

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2x 2,54 =5,08

2,54

15x 2,54 =38,1

50

ERNI

RC 2

XXXXXXX

a b c

24

a1

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

0,05

Alle Löcher

all holes

Information:

Ansaughaube

Tolerances

All Dimensions

in mm

Scale

2:1

hood

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

d

Index

21.09.2017

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

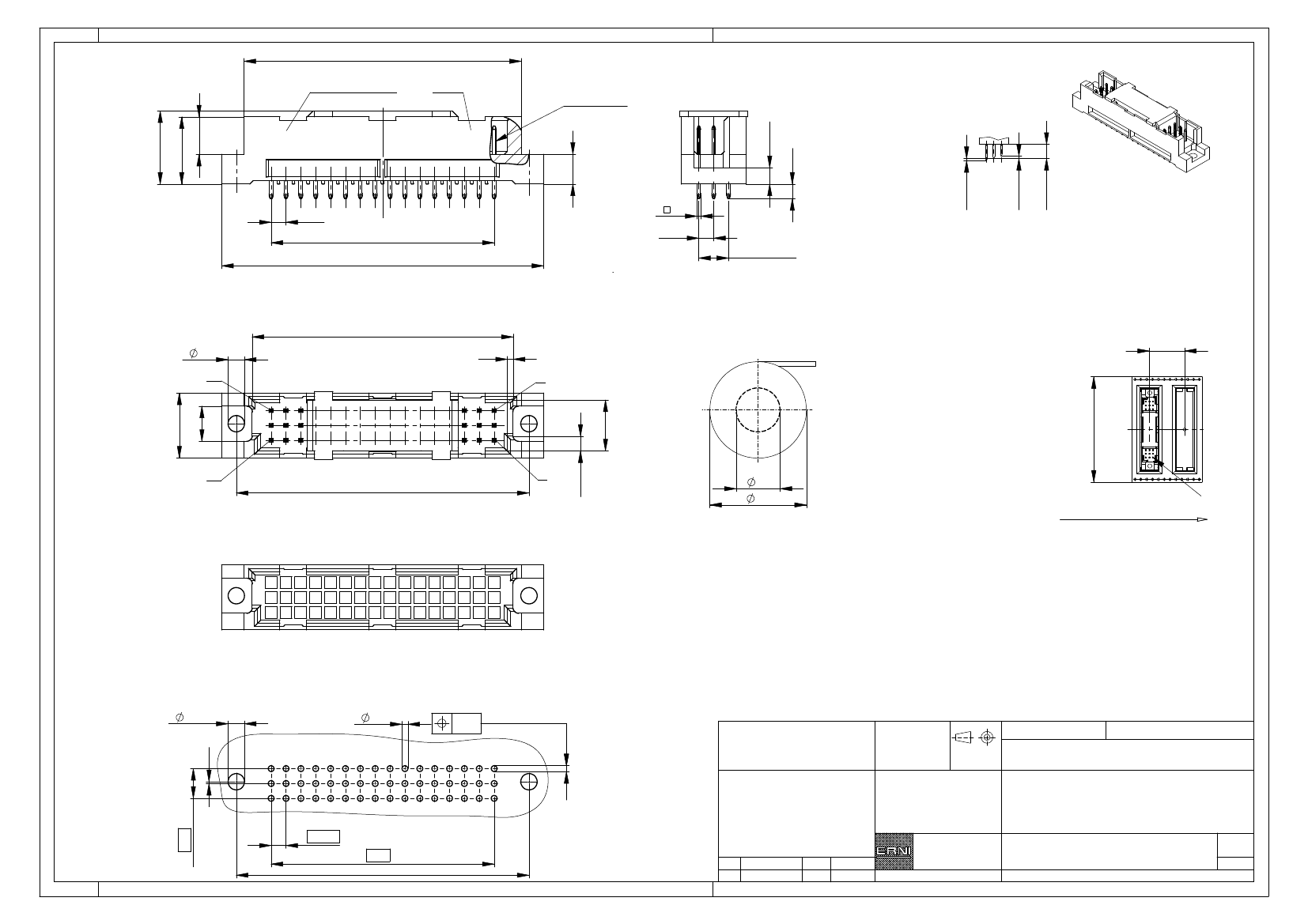

Messerleiste R/2, 48 THR

Male Connector R/2, 48 THR

www.ERNI.com

Class

374853

STVR/2

I

A3
