76165-1124

Description
High Speed / Modular Connectors Impact DC 3x10 Open pact DC 3x10 Open Sn
CategoryThe connector    The connector
File Size35KB，2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

76165-1124 Online Shopping

Suppliers Part Number Price MOQ In stock
76165-1124 - - View Buy Now

76165-1124 Overview

High Speed / Modular Connectors Impact DC 3x10 Open pact DC 3x10 Open Sn

76165-1124 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
body width0.657 inch
subject depth0.47 inch
body length0.854 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Durability200 Cycles
maximum insertion force.3336 N
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
Plug contact pitch0.075 inch
Match contact row spacing0.054 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number9
Number of rows loaded9
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.3462 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.75 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.055 inch
Terminal pitch1.905 mm
Termination typePRESS FIT
Total number of contacts90
Evacuation force-minimum value.139 N
Base Number Matches1

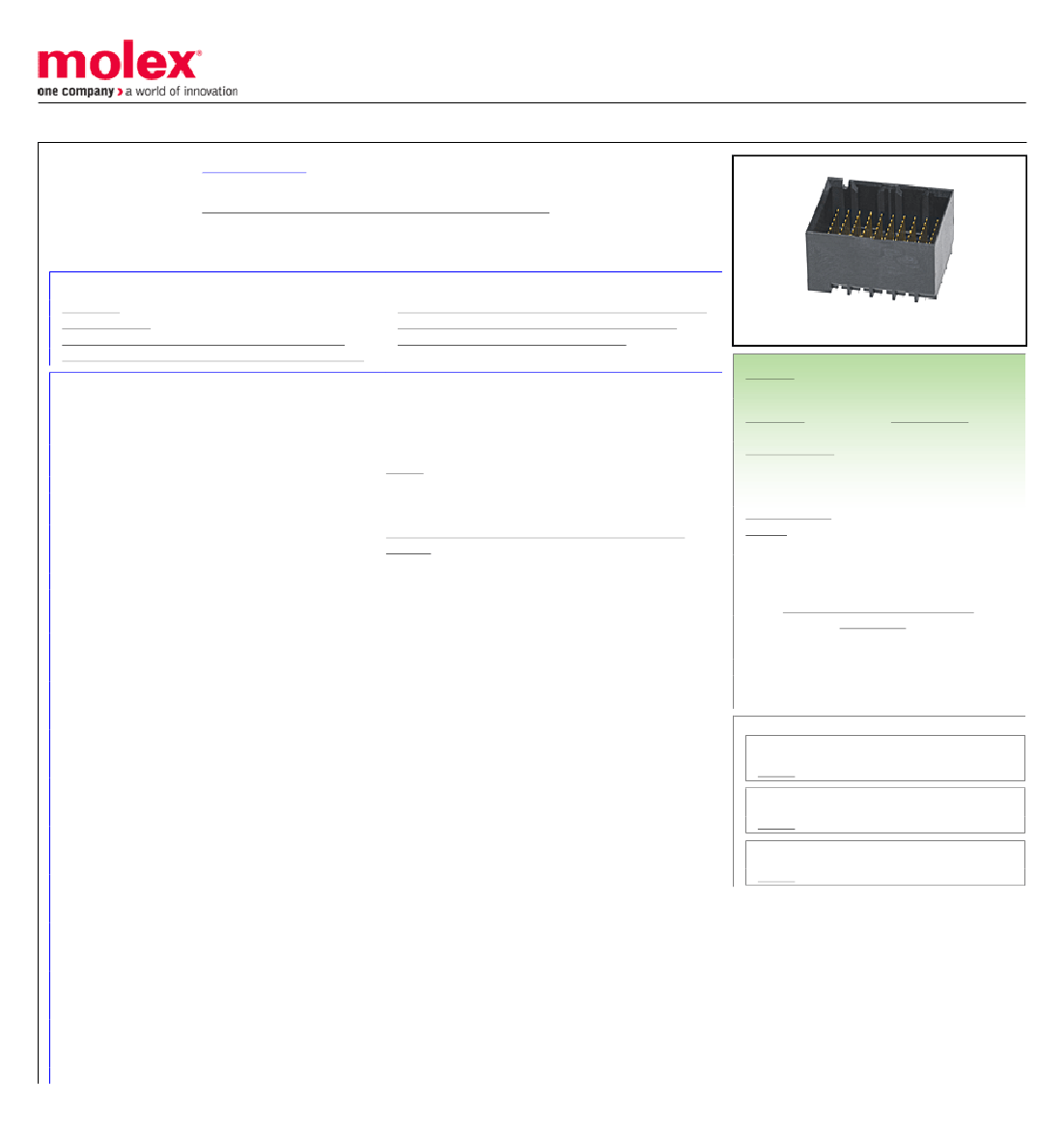

Preview

Download Datasheet
This document was generated on 10/16/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0761651124
Active
Impact Backplane Connector and Cable Assembly System
Impact 100 Ohm 3 Pair Vertical Backplane Header, Unguided, Dual Endwall, 10
Columns, 90 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.46mm,
Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-76060-999-001 (PDF)
Application Specification AS-76060-990-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Application Tooling Documents
Component Type
Overview
Product Name
UPC
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Application Specification AS-76060-9999-001 (PDF)
Packaging Specification PK-70873-7700 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
E29179
Backplane Connectors
76165
Conventional, Mezzanine
TM-622018799
PCB Header
Impact Backplane Connector and Cable Assembly
System
Impact
883906222871
90
90
Black
200
No
94V-0
No
None
High Performance Alloy (HPA)
Gold
Tin
High Temperature Thermoplastic
2.691/g
10
3
9
Vertical
1.40mm
No
None
1.00mm
Tray
1.90mm
1.90mm
0.762µm
No
No
-55°C to +85°C
Through Hole - Compliant Pin
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
76165 Series
Mates With
76170 Impact 100 Ohm Daughtercard
Use With
75234 Backplane Free Standing Guide Pin
