Generated Part Number

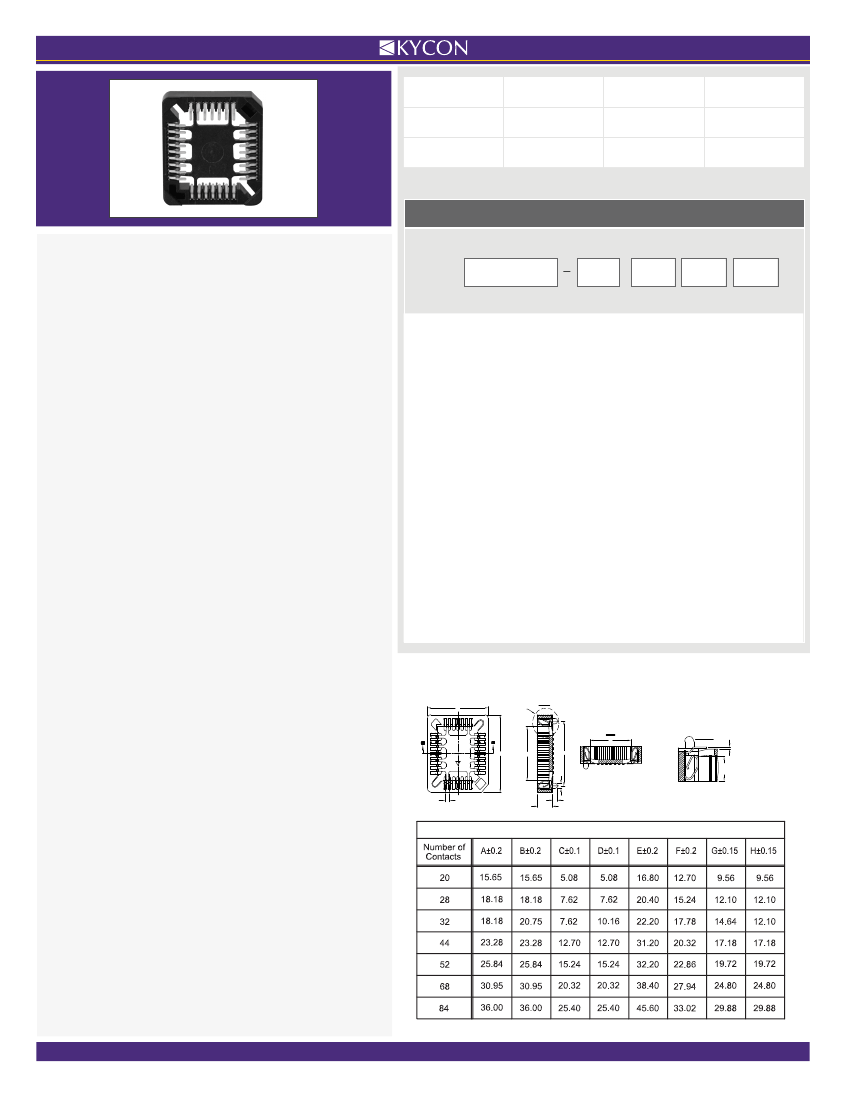

SMPX-20LCC-N
Part Number Builder
CHIP CARRIER SOCKETS:
SMPX Series
Surface Mount PLCC Socket
SMPX
Series
20
Number of
Contact
LCC
Body
Type
N
Polarized
Packaging
Product Features
Applications Include All Electronic PC Boards Requiring Use
of a Socket with Same Footprints as Most Common Plastic
Leaded Chip Carriers
Accepts Molded Plastic Chip Carriers Conforming to
JEDEC Specification MO-047 for Square and MO-052
for Rectangular Configuration
Visual and Mechanical Polarization for PXLCC Insertion
Open Frame Design for Ease of Contact Inspection & Repair
For High Temperature SMT Soldering up to 230 °C
Optional PCB Polarizing Pegs Available
Low profile; Less than .2” Mated Height
Extraction Tool Slots*
Open Top Design for Cooler Running Chip Carrier
Automatic Insertion Machine Compatible
CSA/NRTL Certified File No. LR78160
Series
SMPX
-
Surface Mount PLCC Socket
Number of
Contacts
20
- 20 Contacts
28
- 28 Contacts
32
- 32 Contacts
44
- 44 Contacts
52
- 52 Contacts
68
- 68 Contacts
84
- 84 Contacts
Polarized
N
- Non-Polarized
P
- Polarized
Packaging
Blank
- Tubes
TR
- Tape and Reel (Available only with N Option)
Contact Kycon for other Options
Performance Specifications
Materials and Finish
Body
High Temperature Thermoplastic, Black Color
Contact Material
Phosphor Bronze
Contact Finish
160µ” Tin over Nickel Plating
Dimensions in mm
A
A-A
Detail A
4.6
Detail A
0.15±0.08
B
G
F
SMPX-
Series
B-B
Electrical Characteristics
H
Contact Current Rating
1A
Contact Resistance
15 milliohms Max.
Dielectric Withstanding Voltage
1000VAC Min. for 1 Minute
Insulation Resistance
10000 Megohms Min
Temperature Rating
-50°C to +105°C
Ø1.5
Polarizing Peg
1.27
1.5
Dimensions in mm
* PXLCC Extraction Tool P/N TLPX-PXLCC
Phone: +1.408.494.0330
l
Fax: +1.408.494.0325
l
WWW.KYCON.COM
l
2015
