1812SMS-R10J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 1812SMS-R10J

1812SMS-R10J: DescriptionGeneral Purpose Inductor, 100uH, 5%, 1 Element, Air-Core, SMD, 1915, SMD; CategoryPassive components inductor; File Size101KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

1812SMS-R10J Overview

General Purpose Inductor, 100uH, 5%, 1 Element, Air-Core, SMD, 1915, SMD

1812SMS-R10J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	1915
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1915
structure	Wirewound
core material	AIR
DC Resistance	0.0123 Ω
Nominal inductance(L)	100 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	1812SMS
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	4.2 mm
Package length	4.95 mm
Package form	SMT
Package width	3.81 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	100
Maximum rated current	1.7 A
self resonant frequency	1200 MHz
series	1812SMS
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	150 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

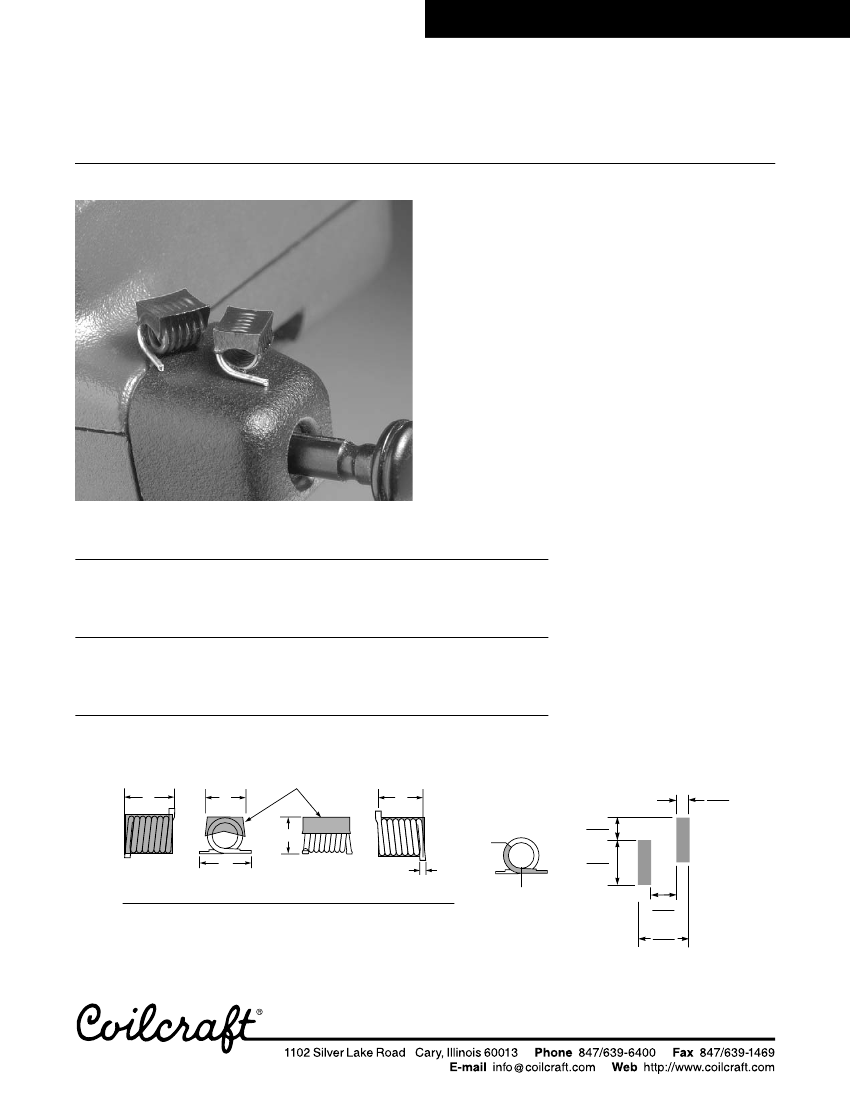

Document 184-1

Midi Spring Air Core Inductors

This family of surface mount Midi Spring

inductors is

designed for higher current applications (up to 3.5 Amps)

than our smaller series. It also provides higher Q factors

at lower frequencies.

Like all Coilcraft “spring” inductors, these parts provide

the advantages of an air core inductor in a package

optimized for auto placement. The top of the coil is

capped with acrylic, forming a flat surface and assuring

mechanical stability. The leads are solder coated for

reliable soldering.

Coilcraft

Designer’s Kit C118

contains samples of all

5% inductance tolerance parts. Kits with 2% tolerance

are also available. To order, contact Coilcraft or visit

http://order.coilcraft.com.

Part

Inductance

Percent

number

(nH)

tolerance

1812SMS-22N_

5,2

1812SMS-27N_

5,2

1812SMS-33N_

5,2

1812SMS-39N_

1812SMS-47N_

5,2

1812SMS-56N_

1812SMS-68N_

1812SMS-82N_

1812SMS-R10_

1812SMS-R12_

100

120

5,2

typ

135

130

135

125

120

115

125

min

100

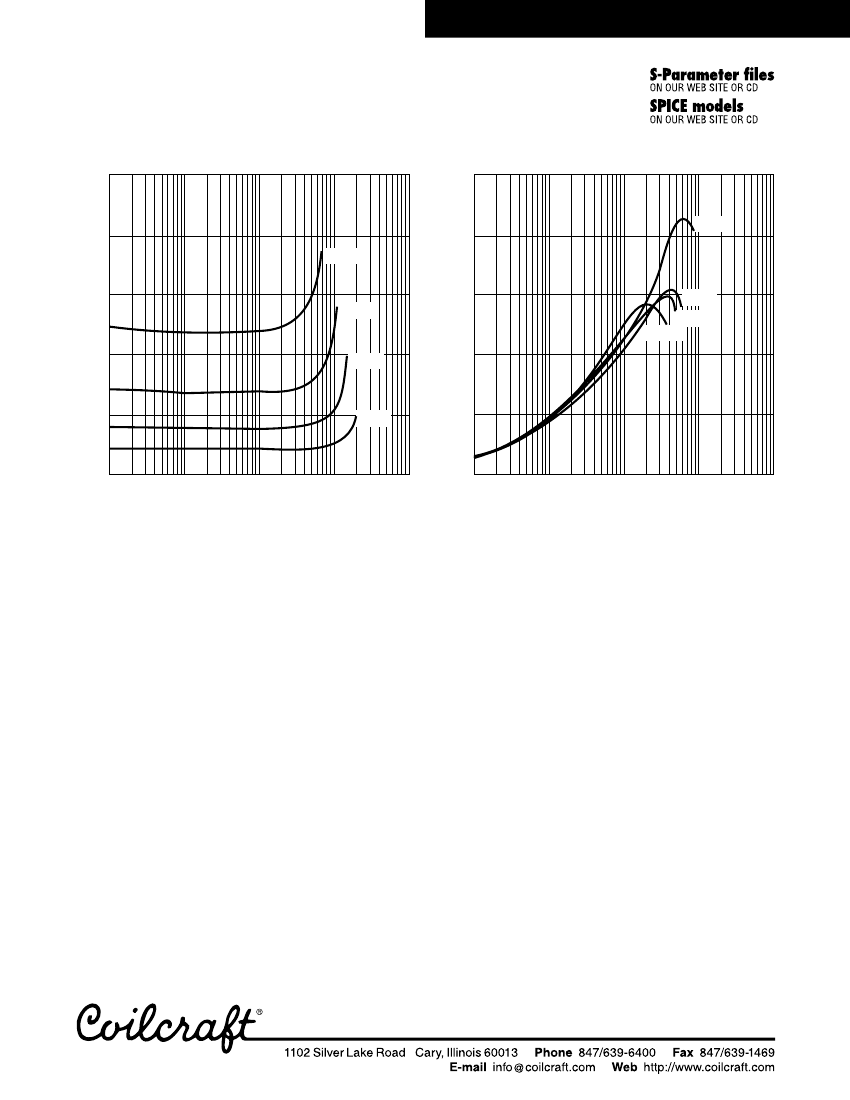

Test SRF

DCR

Irms

freq.

min

max max

(MHz) (GHz) (mOhm) (A)

150

3.2

4.2

3.0

150

2.7

4.0

3.5

150

2.5

4.8

3.0

150

2.1

4.4

3.0

150

2.1

5.6

3.0

150

1.5

1.3

1.2

1.1

6.2

8.2

9.4

12.3

17.3

3.0

2.5

1.7

1.5

1. When ordering, please add letter to specify

inductance tolerance:

J=5%, G=2%.

2. Inductance and Q tested on the Agilent/

HP 4291A with the 16193 fixture and

correlation.

3. Tolerances in bold are stocked for immediate

shipment.

4. SRF tested on the Agilent/HP 8753D and the

SMD-D test fixture.

5. DCR tested on the Cambridge Technology

Model 510 Micro-ohmmeter.

6. Average current for a 15°C rise above 25°C

ambient.

7. Operating temperature range -40°C to

+125°C.

8. Electrical specifications at 25°C.

See Qualification Standards section for

environmental and test data

Encapsulant

Recommended

Land Pattern

Strip

Length

135°

max

0.058

1,48

0.103

2,62

0.203

5,16

A max

0.195

4,95

B max

0.250

6,35

C max

0.165

4,20

0.140 ±0.010

3,56 ±0,25

0.170 ±0.015

4,32 ±0,38

F max

0.030

0,76

0° min

0.112

2,85

0.228

5,80

Weight:

0.10 – 0.16 g

Terminations:

Tin/lead over copper

Tape and reel:

500/7″ reel; 2000/13″ reel 12 mm tape width

For packaging data see Tape and Reel Specifications section.

Specifications subject to change without notice.

Please check our website for latest information.

Document 184-1

Revised 12/17/04
