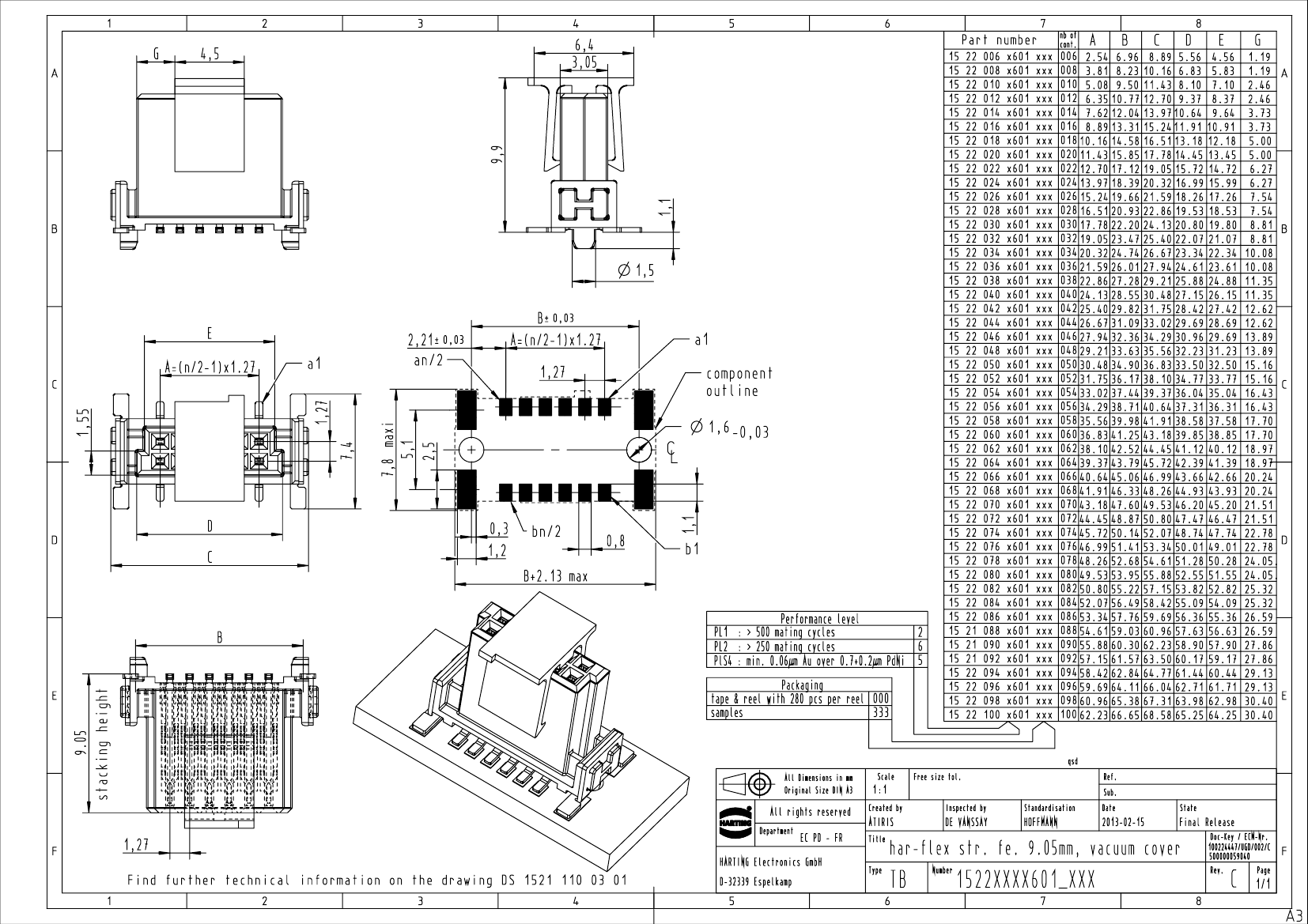

Board to Board u0026 Mezzanine Connectors har-flex str f 9.05mm 20p PL2 280pcs
| Parameter Name | Attribute value |
| Maker | HARTING |
| Reach Compliance Code | compliant |
| Samacsys Description | Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 20, Straight |
| Board mount options | FITTING NAIL |
| body width | 0.291 inch |
| subject depth | 0.356 inch |
| body length | 0.7 inch |
| Connector type | BOARD STACKING CONNECTOR |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | SQ PIN-SKT |
| Durability | 250 Cycles |
| maximum insertion force | .5004 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | 1522 |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.053 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.4864 mm |
| polarization key | POLARIZED HOUSING |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 20 |
| Evacuation force-minimum value | .5004 N |
