DIN-150CSC-PW1-RR datasheet, PDF

Datasheet> All Categories > The connector> The connector> DIN-150CSC-PW1-RR

DIN-150CSC-PW1-RR: DescriptionDIN 41612 Connectors 150P VERTICAL SOCKET DIN 41612; CategoryThe connector The connector; File Size2MB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

DIN-150CSC-PW1-RR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DIN-150CSC-PW1-RR	-	-	View	Buy Now

DIN-150CSC-PW1-RR Overview

DIN 41612 Connectors 150P VERTICAL SOCKET DIN 41612

DIN-150CSC-PW1-RR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	3M
Reach Compliance Code	unknown
Other features	3M, STANDARD: DIN 41612
body width	0.417 inch
subject depth	0.457 inch
body length	5.54 inch
Body/casing type	SOCKET
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (3) OVER NICKEL (50)/PALLADIUM NICKEL (7) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	DIN
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

™

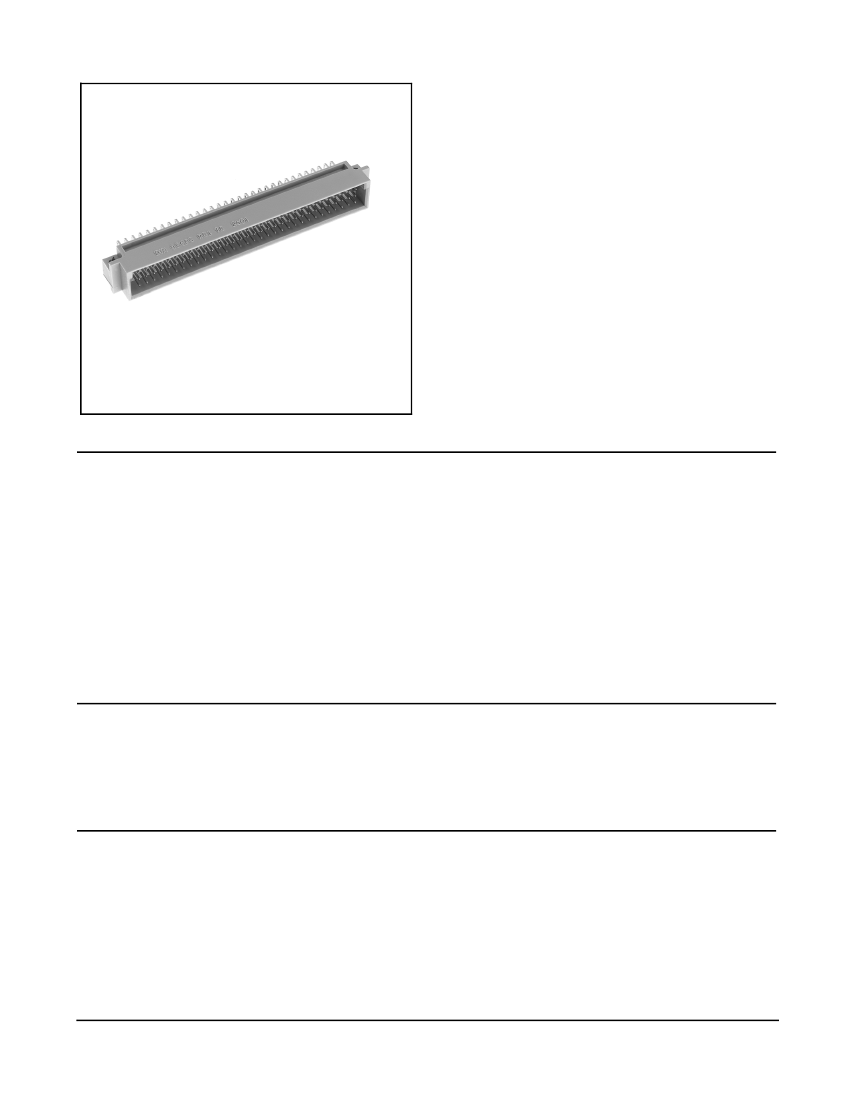

DIN C-Form Plug

.100″ Standard Mount, Right Angle, Solder Tail Termination

DIN 41612 Series

• Multi-pin count socket for VME, VXI

and Multibus II daughter cards

• Early mate late break (EMLB) grounding

contacts for hot swapping

• Expanded pin counts

• Optional retention clips

• Mates with C-form and R-form sockets

• See Regulatory Information Appendix (RIA)

for chemical compliance information

R CO

ec e

pl N

ac TI

he e U

et b ED

Date Modified: March 26, 2007

TS-1132-B

Sheet 1 of 4

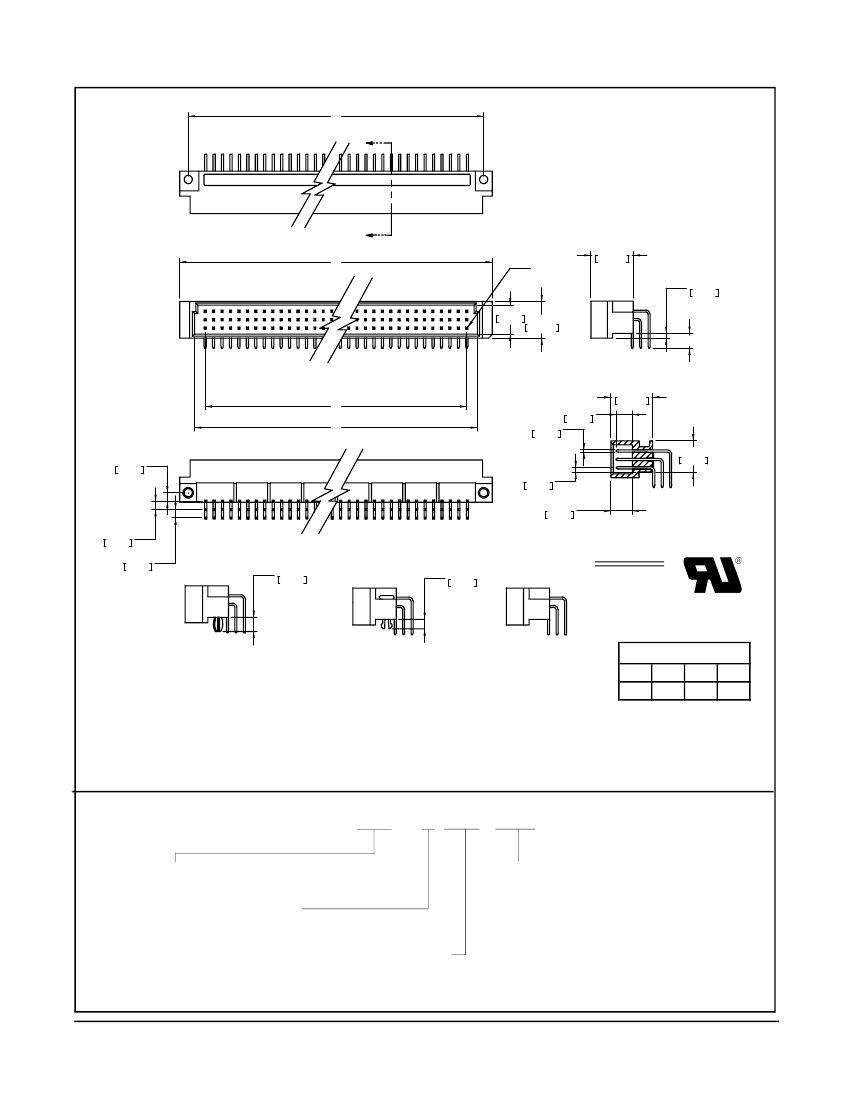

Physical

Electrical

Insulation

Material:

Flammability:

Color:

Contact

Material:

Plating

Underplating:

Wiping Area:

Termination Area:

Marking:

Glass Filled Polyester (PCT)

UL 94V-0

Gray or Black

Copper Alloy

μ″

[ 1.27

μm

] Min. Nickel

(See Ordering Information)

Part Number and Date Code

Contact Resistance:

20 mΩ Max.

Current Rating:

3.0 A @ 30°C T-rise above ambient

Insulation Resistance:

1 x 10³ MΩ min. at 500 V

Environmental

Temperature Rating:

-55°C to +125°C

Process Temperature Rating:

260°C per J-STD-020C

Moisture Sensitivity

Level:

1 (per J-STD-020C)

UL File No.: E68080

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

Withstanding Voltage:

1 x 10³ V

for 1 minute

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/

EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/17/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in

excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision

2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in

writing, this information represents 3M’s best knowledge and belief based upon information provided by third party

suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon

information provided by third party suppliers to 3M.

R CO

ec e

pl N

ac TI

he e U

et b ED

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability

and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

RIA-2217-A

DIN-150CSC-PW1-RR Related Products

	DIN-150CSC-PW1-RR	DIN-064CPB-SR1-TR	DIN-096CSC-R1L-TR	DIN-120CPC-SR1-TR	DIN-120RSC-SR1-TR	DIN-096CSC-S1L-TG30	DIN-048CSC-PSL-TR
Description	DIN 41612 Connectors 150P VERTICAL SOCKET DIN 41612	DIN 41612 Connectors 64 R/A PLUG DIN 41612	DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612	DIN 41612 Connectors 120P R/A PLUG DIN 41612	DIN 41612 Connectors 120P INVERSE R/A SKT DIN 41612	DIN 41612 Connectors 96P VERTICAL SOCKET DIN 41612	DIN 41612 Connectors 48P VERTICAL SOCKET DIN 41612
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
Maker	3M	3M	3M	3M	-	-	3M
Reach Compliance Code	unknown	unknown	unknown	unknown	-	unknown	unknown
Other features	3M, STANDARD: DIN 41612	3M	3M, STANDARD: DIN 41612	3M	-	3M, STANDARD: DIN 41612	3M, STANDARD: DIN 41612
Body/casing type	SOCKET	PLUG	SOCKET	PLUG	-	SOCKET	SOCKET
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (3) OVER NICKEL (50)/PALLADIUM NICKEL (7) OVER NICKEL (50)	GOLD (3) PALLADIUM NICKEL (7)	GOLD (3) OVER NICKEL (50)/PALLADIUM NICKEL (7) OVER NICKEL (50)	GOLD (3) PALLADIUM NICKEL (7)	-	GOLD (30) OVER NICKEL	GOLD (3) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	TIN LEAD (100) OVER NICKEL (50)	-	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE	MALE	FEMALE	MALE	-	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	-	YES	YES
Filter function	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	-	NO	NO
JESD-609 code	e0	e0	e0	e0	-	e0	e0
MIL compliance	NO	NO	NO	NO	-	NO	NO
Manufacturer's serial number	DIN	DIN	DIN	DIN	-	DIN	DIN
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	-	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD
Number of rows loaded	3	2	3	3	-	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	SOLDER	SOLDER	-	SOLDER	PRESS FIT
Total number of contacts	150	64	96	120	-	96	48
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0
