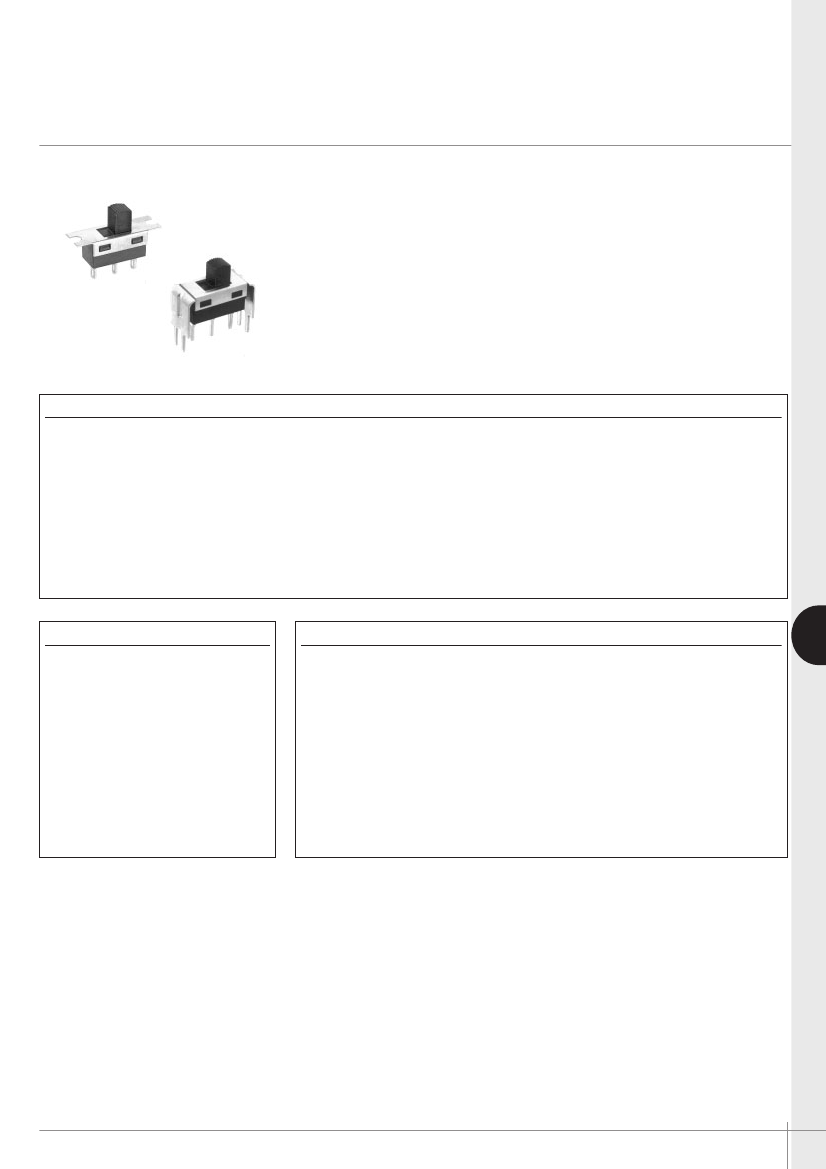

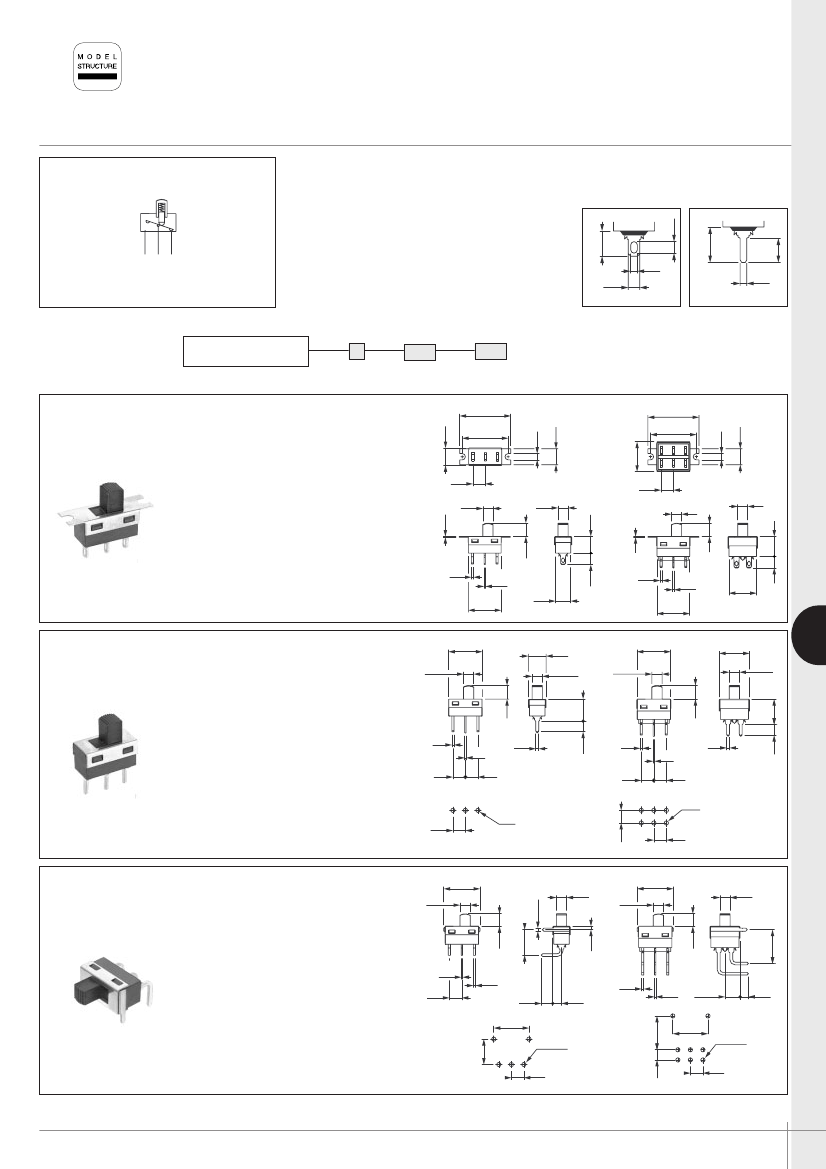

G series
Slide switches - telecom grade
Distinctive features and specifications
❑
Panel and PC mount models
❑
6 actuator lengths
❑
Wide variety of contact materials
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (codes 1 or 2) : 2A 250VAC - 4A 125VAC - 3A 30VDC
- gold plated brass contacts (code 0) : 0,4VA 20VAC or DC max.
• Initial contact resistance : 10 mΩ
• Insulation resistance : 1.000 MΩ min.
• Dielectric strength : 1.000 Vrms 50 Hz min.
• Electrical life with resistive load :
- silver contacts (codes 1 or 2) : 2 positions : 40.000 cycles
3 positions : 20.000 cycles
- gold plated brass contacts (code 0) : 60.000 cycles (0,4VA max.)
MATERIALS
GENERAL SPECIFICATIONS
E
• Case : PES
• Actuator : polyamide, glass
filled
• Cover : stainless steel
• Contacts
0
: brass, gold plated
1
: silver
2
: silver, gold plated
5
: special contact, lower
rating, minimum quantity :
consult factory
• Terminal seal : epoxy
• Travel : 2,20 mm (.086)
• Operating temperature : -30°C to +85°C
• Recommended soldering : 300°C 5 sec. max.
APEM
www.apem.com
E-9
G SERIES
Slide switches - telecom grade
Overview
G
SERIES
Actuators
C
H
L
B
E
N
3,50 mm (.137)
5,10 mm (.200)
Standard
6,40 mm (.251)
7,65 mm (.301)
9,10 mm (.358)
9,50 mm (.374)
3
4
Number
of poles
Single pole
Double pole
Electrical functions
6
9
ON
ON
-
OFF
ON
ON
S0
P0
W0
WW
Y0
Y4
Terminals
Solder lugs
Straight PC
Right angle, horizontal
Right angle, vertical
Straight PC with short
bracket
Straight PC with tall
bracket
Types L, B and E for
single pole models only.
E
Contact and terminal
materials
0
1
2
5
8
Brass, gold plated
Silver
Silver, gold plated
Special contact, lower
rating
Contacts brass, gold
plated + tin plated
terminals (for PC
terminals only)
Special options 1
00
10
11
12
Standard model
Switch without ground
plate
10,35 mm (.407)
PC terminals
Same as 11, without
ground plate
00
01
10
11
Special options 2
No epoxy seal
Epoxy sealed
terminals
Extended terminals
Same as 10, with
epoxy seal
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- options in the same order as in above chart
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Packaging unit
: 100 pieces for SP solder lug (S0) and straight terminal (P0) models.
50 pieces for other models.
E-10
www.apem.com
APEM
G series
Slide switches - telecom grade
•
Solder lug, straight PC or right angle terminals
• Single and double pole configurations
1.90
(.074)
4.20
(.165)
5.90
(.232)
1
2
3
1.80
(.070)
1.10
(.043)
1.10
(.043)
MODEL
STRUCTURE
Shown with standard actuator (type H)
Solder lug terminals
6.65
(.261)
19.50
(.767)
6.10
(.240)
17.53
(.690)
19.50
(.767)
2.40
(.094)
2.40
(.094)
6.10
(.240)
17.53
(.690)
4.70
(.185)
11.40
(.448)
0.30
(.011)
6.35
(.250)
4.20
(.165)
Order with epoxy sealed terminals (option 01).
12.70
(.500)
5.80
(.228)
0.50
(.019)
12.70
(.500)
10.55
(.415)
4.40
(.173)
0.80
(.031)
5.10
(.200)
0.30
(.011)
0.50
(.019)
0.80
(.031)
5.10
(.200)
7.60
(.299)
Single pole Double pole
GH36S0
GH46S0
ON
GH39S0
GH49S0
ON
4.70
(.185)
3.85
(.151)
3.85
(.151)
3.85
(.151)
-
OFF
ON
ON
3.85
(.151)
4.00
(.157)
Straight PC terminals
3.85
(.151)
12.70
(.500)
6.65
(.261)
3.85
(.151)
3.85
(.151)
12.70
(.500)
11.40
(.448)
3.85
(.151)
E
8.25
(.324)
Single pole Double pole
GH36P0
GH46P0
ON
GH39P0
GH49P0
ON
-
OFF
ON
ON
4.00
(.157)
0.50
(.019)
4.70
(.185)
4.70
(.185)
0.50
(.019)
4.70
(.185)
4.70
(.185)
Ø1.60
(.062 DIA)
4.70
(.185)
Ø1.60
(.062 DIA)
4.75
(.187)
4.70
(.185)
Right angle terminals - horizontal
13.60
(.535)
1.17
(.046)
3.85
(.151)
3.85
(.151)
13.60
(.535)
3.85
(.151)
3.85
(.151)
4.70
(.185)
9.53
(.375)
1.30
(.051)
4.70
(.185)
Single pole Double pole
GH36W0 GH46W0
ON
GH39W0 GH49W0
ON
-
OFF
ON
ON
0.50
(.019)
4.70
(.185)
0.80
(.031)
4.30
(.169)
13.20
(.519)
3.30
(.129)
0.80
(.031)
0.50
(.019)
5.70
(.224)
12.70
(.500)
13.20
(.519)
9.53
(.375)
Ø1.60
(.062 DIA)
Ø1.60
(.062 DIA)
APEM
www.apem.com
3.81
(.150)
4.70
(.185)
4.70
(.185)
E-11
12.70
(.500)
3.10
(.122)
4.00
(.157)
0.80
(.031)
5.10
(.200)
1.10
(.043)
5.10
(.200)
0.80
(.031)
1.10
(.043)
9.50
(.374)
G series
Slide switches - telecom grade

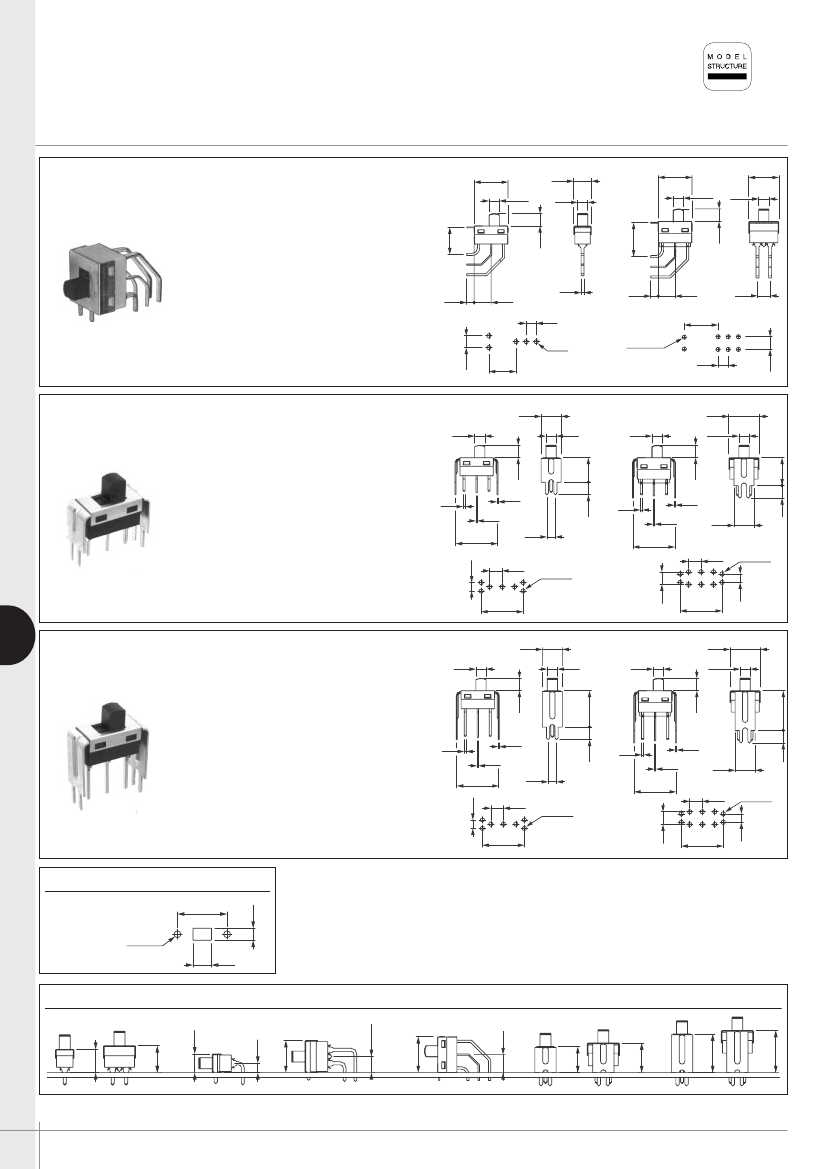

Right angle terminals - vertical
12.70
(.500)
3.85
(.151)
3.85
(.151)
11.40
(.448)
12.70
(.500)
3.85
(.151)
6.65
(.261)
3.85
(.151)
10.16
(.400)
4.70
(.185)
Single pole Double pole
GH36WW GH46WW
ON
GH39WW GH49WW
ON
-
OFF
ON
ON
2.80
(.110)
6.35
(.250)
1.10
(.043)
12.70
(.500)
2.80
(.110)
6.35
(.250)
4.70
(.185)
4.75
(.187)
12.70
(.500)
3.81
(.150)
3.81
(.150)
Ø1.60
(.062 DIA)
4.45
(.175)
10.16
(.400)
Ø1.60
(.062 DIA)
Straight PC terminals - short bracket : Y0
3.85
(.151)
7.50
(.295)
3.85
(.151)
3.85
(.151)
11.40
(.448)
3.85
(.151)
9.20
(.362)
4.70
(.185)
4.70
(.185)
Single pole Double pole
GH36Y0
GH46Y0
ON
GH39Y0
GH49Y0
ON
-
OFF
ON
ON
4.70
(.185)
0.80
(.031)
0.50
(.019)
15.75
(.620)
0.40
(.015)
3.18
(.125)
0.50
(.019)
15.75
(.620)
7.50
(.295)
3.18
(.125)
4.70
(.185)
4.70
(.185)
Ø1.60
(.062 DIA)
4.75
(.187)
3.18
(.125)
Ø1.60
(.062 DIA)
15.75
(.620)
15.75
(.620)
E
Straight PC terminals - tall bracket : Y4
7.50
(.295)
3.85
(.151)
3.85
(.151)
3.85
(.151)
11.40
(.448)
3.85
(.151)
4.70
(.185)
13.65
(.537)
4.70
(.185)
4.70
(.185)
0.50
(.019)
15.75
(.620)
3.18
(.125)
3.18
(.125)
4.70
(.185)
0.50
(.019)
15.75
(.620)
7.50
(.295)
4.70
(.185)
Ø1.60
(.062 DIA)
Ø1.60
(.062 DIA)
3.18
(.125)
PANEL CUT
-
OUT
Solder lug
model
Ø2.40
(.094 DIA)
6.50
(.255)
4.20
(.165)
17.53
(.690)
PCB MOUNTING
6.65
(.261)
5.70
(.224)
6.35
(.250)
3.30
(.129)
4.75
(.187)
15.75
(.620)
15.75
(.620)
13.65
(.537)
11.40
(.448)
12.70
(.500)
9.50
(.374)
9.20
(.362)
E-12
8.25
(.324)
www.apem.com
10.46
(.411)
APEM
14.90
(.586)
4.70
(.185)
Single pole Double pole
GH36Y4
GH46Y4
ON
GH39Y4
GH49Y4
ON
-
OFF
ON
ON
0.80
(.031)
0.40
(.015)
0.80
(.031)
0.40
(.015)
14.90
(.586)
4.70
(.185)
0.80
(.031)
0.40
(.015)
10.46
(.411)
4.75
(.187)
G series
Slide switches - telecom grade
ACTUATORS
G H . . . .
Replace second digit (H) of basic model number with
one of the codes below.
Dimensions below are for solder lug (S0) and straight terminals (P0) models.
For other models (WO - WW - Y0 - Y4), height is less 0,4 mm (.015).
3.50
(.137)
C
H
Standard
5.10
(.200)
L
For single pole only
B
For single pole only
7.65
(.301)
9.10
(.358)
E
For single pole only
N
9.50
(.374)
6.40
(.251)
E
CONTACT AND TERMINAL MATERIALS
0
1
2
5
8
Brass, gold plated
Silver
Silver, gold plated
Special contact, lower rating, minimum quantity : consult factory
Contacts brass, gold plated + tin plated terminals (for PC terminals only)
APEM
www.apem.com
E-13
